Product Details

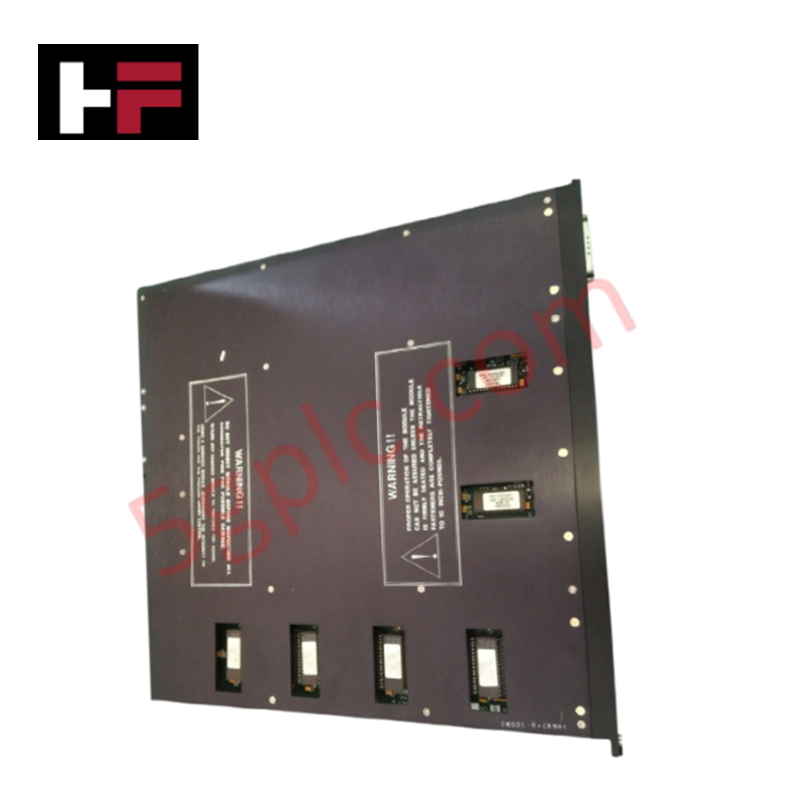

The Triconex 3624, also cataloged as the 3624 Digital Output Module, operates as a dedicated hardware component for digital output signal switching within Tricon safety system networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3624 |
| Brand | Triconex |
| Weight | 0.8 kg |
| Dimensions | Standard Tricon module form factor |
| Operating Temp | Industrial standard range |
| Power Consumption | < 10 W |
| Output Signals | 16, commoned |
| Nominal Voltage | 24 VDC |
| Voltage Range | 16-30 VDC |
TMR Safety System Execution
The Triconex 3624 is designed to operate within a triple modular redundancy (TMR) 2oo3 architecture, providing high-integrity output control governed by majority-voting logic. This module utilizes galvanic isolation to separate the field-side output circuits from the system backplane, ensuring protection against electrical interference. To maintain SIL3 certification, the module implements fail-safe state execution; in the event of internal diagnostic fault detection or signal discrepancy, the output logic transitions to a predetermined safe state to prevent unintended process operations.
Frequently Asked Questions
Q: Does the 3624 module support hot-swapping during active system operation?
A: Yes, the 3624 supports hot-swapping within the Tricon chassis. When installed, the module initiates a self-diagnostic sequence and synchronizes register data with the redundant module pair before participating in the TMR voting process.
Q: What are the limits for the supervised output points?
A: The module supports supervised digital output logic to detect field-side open or short-circuit conditions. Users must ensure that connected load impedance aligns with the module's supervision threshold to prevent false fault indications.
Field Installation Guidelines
- Verify that the system backplane is powered within specification before module insertion.
- Align the module with the chassis guides and push until the backplane connector is fully seated.
- Tighten the front-panel captive screws to ensure a proper chassis ground connection.
- Route field wiring through shielded cables and terminate shields at the cabinet ground bus to minimize electromagnetic noise.
- Use the TriStation configuration software to perform an initial module health check after installation and prior to activating the safety logic loops.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
