Product Details

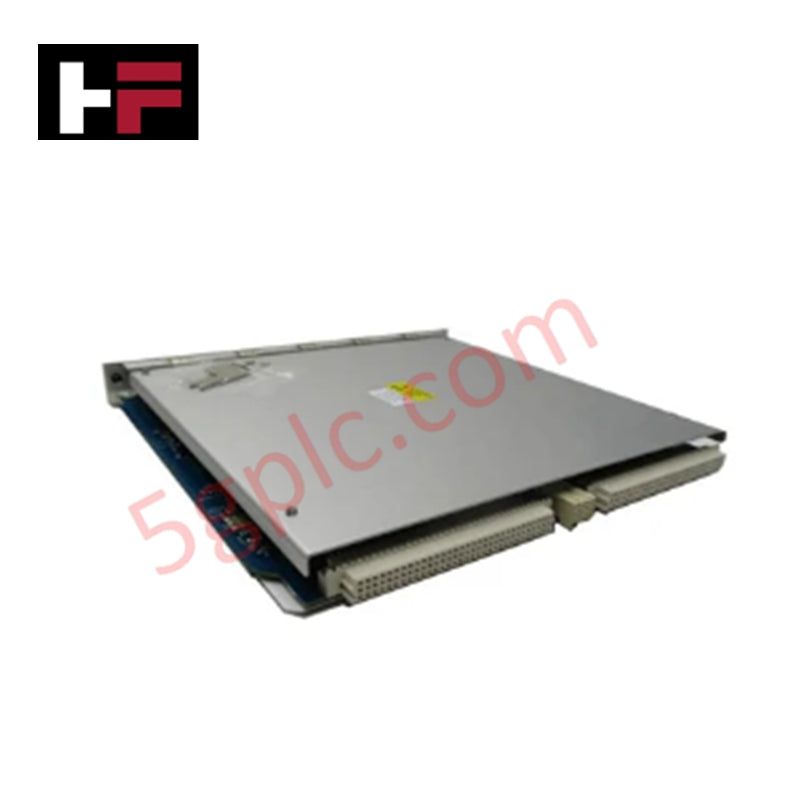

The Bently Nevada 3500/60-01-BR is a six-channel temperature monitor module designed for the 3500 Series Machinery Protection System. It acquires and processes inputs from Resistance Temperature Detectors (RTDs) and thermocouples, comparing measured temperatures against programmable alarm setpoints to provide continuous monitoring and protection for industrial rotating equipment.
Ordering Option Breakdown
The complete model number specifies the operational parameters and environmental protection options of the module. Option code 01 designates the standard six-channel temperature monitor configuration for RTD and thermocouple inputs. The BR suffix indicates a factory conformal coating (bumper) modification, offering enhanced protection against harsh, corrosive, or high-humidity operating environments.
Channel Processing and Integration
The module processes six independent sensor channels to monitor bearing temperatures, stator windings, and process fluids. Using 3500 Rack Configuration Software, maintenance personnel can configure alert and danger thresholds, sensor types, and recorder outputs for integration into plant automation systems.
| Parameter | Specification |
|---|---|
| Model | 3500/60-01-BR |
| Brand | Bently Nevada |
| Product Series | 3500 Machinery Protection System |
| Product Type | Temperature Monitor Modules |
| Number of Channels | 6 channels |
| Modification Option | Conformal Coated Board / Bumper Modification (BR) |
| Input Types | RTDs and thermocouples |
| Operating Temperature | -30 deg C to +65 deg C (-22 deg F to +149 deg F) |
| Storage Temperature | -40 deg C to +85 deg C (-40 deg F to +185 deg F) |
| Operating Humidity | Up to 95% non-condensing |
| Country of Origin | USA |
Frequently Asked Questions
Q: What does the BR suffix indicate on the Bently Nevada 3500/60-01-BR module?
A: The BR option code specifies a factory conformal coating modification designed to protect circuitry against corrosive or humid industrial atmospheres.
Q: How many temperature sensor channels does this module support?
A: It supports six independent monitoring channels compatible with standard RTD and thermocouple inputs.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
