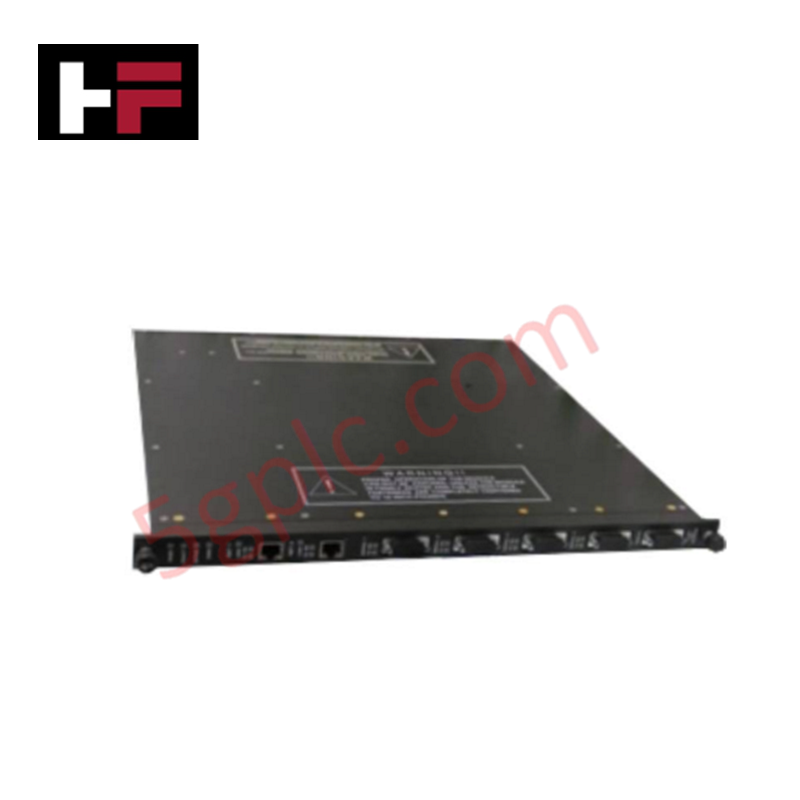

3003 | Triconex | Main Processor Module

Configured for high-integrity logic execution in Tricon safety system platforms, the Triconex 3003 (3003 Main Processor Module) provides direct physical/electrical execution of safety-critical control algorithms.

Hardware Specifications

Triple Modular Redundancy (TMR) Architectural Integrity

The Triconex 3003 module is engineered for operation within a TMR 2oo3 architecture, utilizing three independent processor channels to execute safety logic simultaneously. This configuration ensures that output states are governed by a real-time majority-voting mechanism, providing fault tolerance against single-point hardware failures. The architecture features diverse hardware and instruction set diversification, which mitigates the risk of common-cause failures within the processing environment. Meeting SIL3 certification requirements, the module enforces fail-safe state execution; if internal diagnostic comparisons detect a divergence between processor states, the system isolates the faulty path to maintain the integrity of the safety loop.

Frequently Asked Questions

Q: Does the 3003 processor module support hot-swapping while the system is operational?

A: The 3003 module is designed to be hot-swappable in a properly configured Tricon chassis. When a replacement module is installed, the system automatically initiates a self-diagnostic sequence and synchronizes memory states with the remaining active processors before re-joining the TMR voting logic.

Q: How does the instruction set diversification protect the system?

A: Instruction set and hardware diversity are integrated to prevent systematic failures where a common fault in a single processor design could otherwise affect all redundant paths simultaneously. This design approach ensures that logic execution remains robust against localized hardware anomalies.

Field Installation Guidelines

1. Ensure the chassis backplane is de-energized or the system is in a controlled maintenance state before module insertion.
2. Align the 3003 module carefully with the chassis guide rails and backplane connector to avoid pin deformation.
3. Secure the front-panel mounting screws to establish a solid electrical bond to the chassis frame for electromagnetic shielding.
4. Verify that the module's status LEDs indicate a successful power-on self-test and synchronization with the existing processor set prior to commissioning.
5. Confirm that all firmware versions across the three redundant processor modules are compatible to prevent logic execution synchronization errors.
