Product Details
Overview

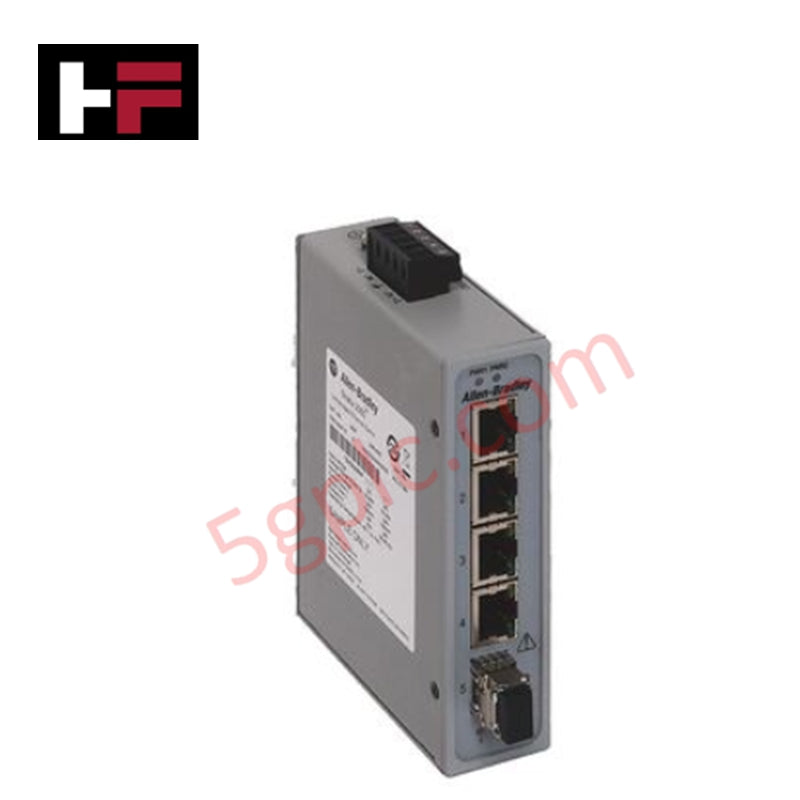

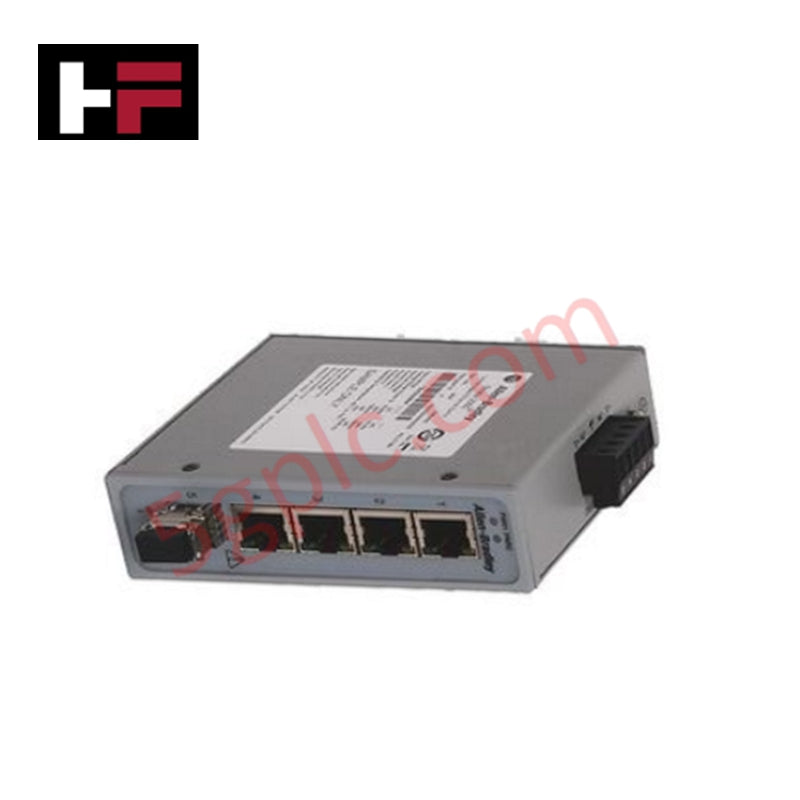

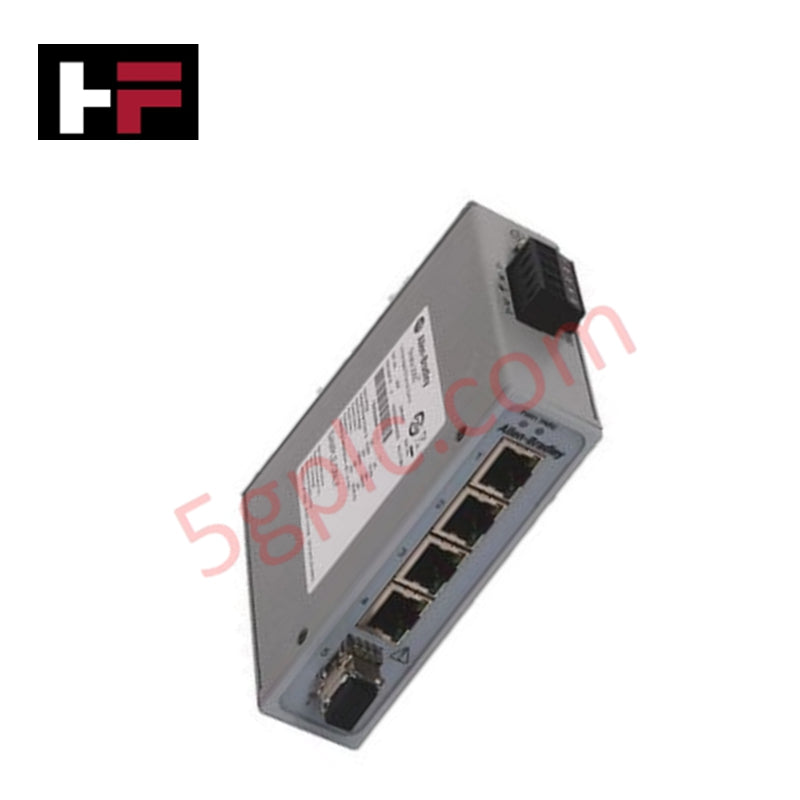

The 1783-US5T from Allen-Bradley is a Stratix 2000 unmanaged Ethernet switch featuring five copper RJ45 ports for 10/100 Mbps communication. Designed for industrial network applications, this compact DIN-rail mountable switch provides reliable connectivity for small ControlLogix or Ethernet/IP networks. Its rugged construction supports a wide voltage range and extended temperature operation for robust performance in demanding environments.
Technical Specifications
-
Model: 1783-US5T
-
Manufacturer: Allen-Bradley
-
Product Type: Stratix 2000 Unmanaged Ethernet Switch
-
Number of Copper Ports: 5 RJ45 Fast Ethernet ports
-
Fiber Ports: None
-
Transmission Speed: 10/100 Mbps
-
Power Supply Range: 12–48 VDC, 18–30 VAC, 50/60 Hz
-
Nominal Voltage: 24 VAC/VDC
-
Power Consumption: 3.4 W maximum
-
Maximum Inrush Current: 1.85 A
-
Input Current: DC 180 mA nominal / 380 mA max; AC 360 mA nominal / 750 mA max
-
Wire Size: DC power 0.25–0.5 mm², ground 2.5 mm² (14 AWG)
-
Screw Torque: Power terminal 4.5–5 in-lb, Ground terminal 8.05 in-lb
-
Mounting: DIN Rail
-
Connector Type: RJ45, Cat5/Cat5e wiring
-
Operating Temperature: -10 °C to +60 °C (14–140 °F)
-
Weight: 0.44 lbs (0.20 kg)
-
Enclosure Rating: Open-style/None
Features
-
Compact unmanaged switch for industrial Ethernet networks
-
Five Fast Ethernet ports with auto-negotiation
-
DIN rail mountable for easy installation
-
Supports wide input voltage and extended operating temperature range
-
Quick deployment with no configuration required
Applications
The 1783-US5T is ideal for small industrial network segments, connecting multiple devices such as PLCs, HMIs, and sensors. Suitable for both factory automation and process control environments where unmanaged Ethernet connectivity is required.
FAQ
Q: Can this switch handle fiber connections?
A: No, the 1783-US5T only supports 5 copper RJ45 ports.
Q: What is the maximum operating temperature?
A: The switch can operate reliably up to 60 °C (140 °F).
Q: Does it require configuration?
A: No, it is an unmanaged switch and works out-of-the-box.
