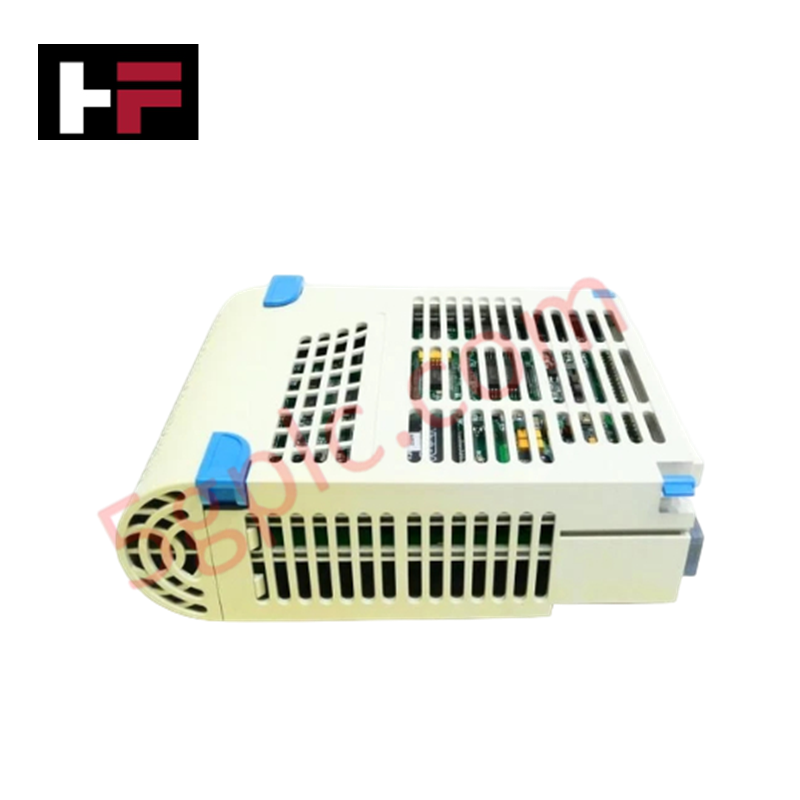

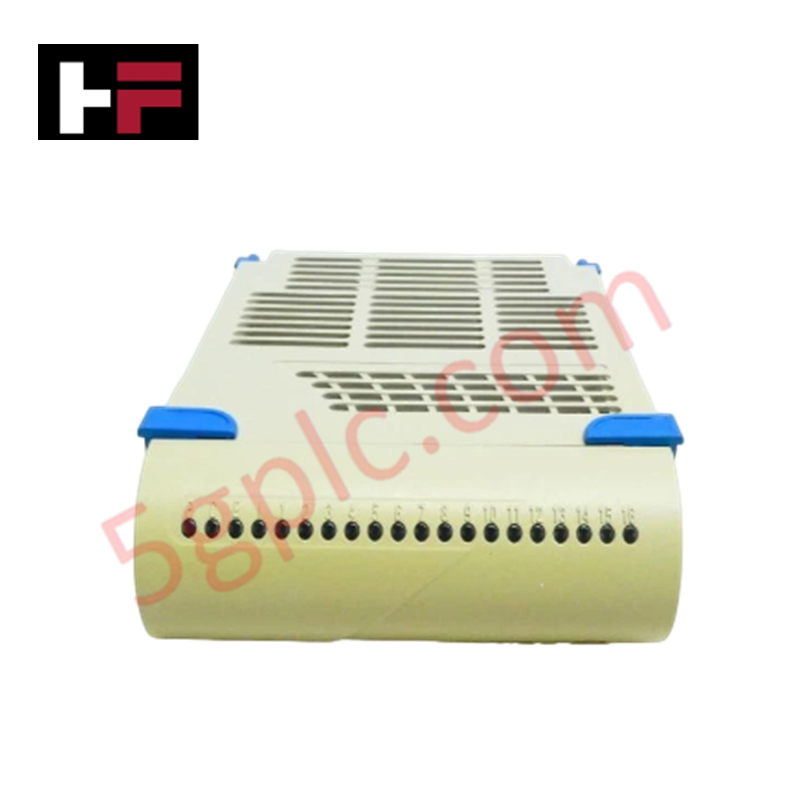

1C31179G02 | Emerson | Remote Input Output Module

Configured for distributed signal acquisition in Ovation control systems, the Emerson 1C31179G02 (1C31179G02 Remote Input Output Master Attachment Unit) provides direct physical electrical execution for interfacing field-side instrumentation with central controller networks. The module serves as a primary communication node, facilitating data exchange between field sensors/actuators and the host DCS through multiple supported industrial serial and fieldbus interfaces.

Hardware Specifications

Channel-to-Channel Isolation and Process Connectivity

The 1C31179G02 architecture incorporates channel-to-channel isolation to prevent electrical noise and common-mode transients from disrupting data transmission between the field-side devices and the control system. This isolation is required to maintain signal fidelity across the various communication protocols, including RS-232, RS-422, RS-485, Modbus, and Profibus DP. The module supports integrated diagnostics that monitor the health of the communication links, ensuring that transmission latencies remain within deterministic limits during high-speed process control cycles.

Frequently Asked Questions (FAQ)

Q: Does the 1C31179G02 support hot-swapping during normal system operation?

A: The module supports hot-swap functionality within the remote I/O chassis. Ensure that all field power is isolated and the I/O bus is placed in a maintenance state before attempting module extraction to prevent unexpected output states or damage to the backplane connector.

Q: Are there specific termination requirements for the RS-485 communication lines?

A: Yes, standard industrial termination practices apply. Ensure that 120 ohm resistors are installed at both physical ends of the RS-485 bus segment to mitigate signal reflections and maintain data integrity.

Field Installation Guidelines

1. Confirm the remote I/O chassis is mounted securely on a DIN rail or flat panel surface.
2. Align the module with the chassis guide rails and seat the unit firmly until the locking mechanism engages the backplane connector.
3. Terminate all signal wiring at the terminal block; ensure shielded cables are utilized for serial communication lines to reduce electromagnetic interference (EMI).
4. Bond cable shields to a common reference ground at the cabinet entry point, maintaining a low-impedance path for transient discharge.
5. Verify communication protocol settings via the control software to ensure the module baud rate and parity match the network configuration before final commissioning.
