Product Details
Overview

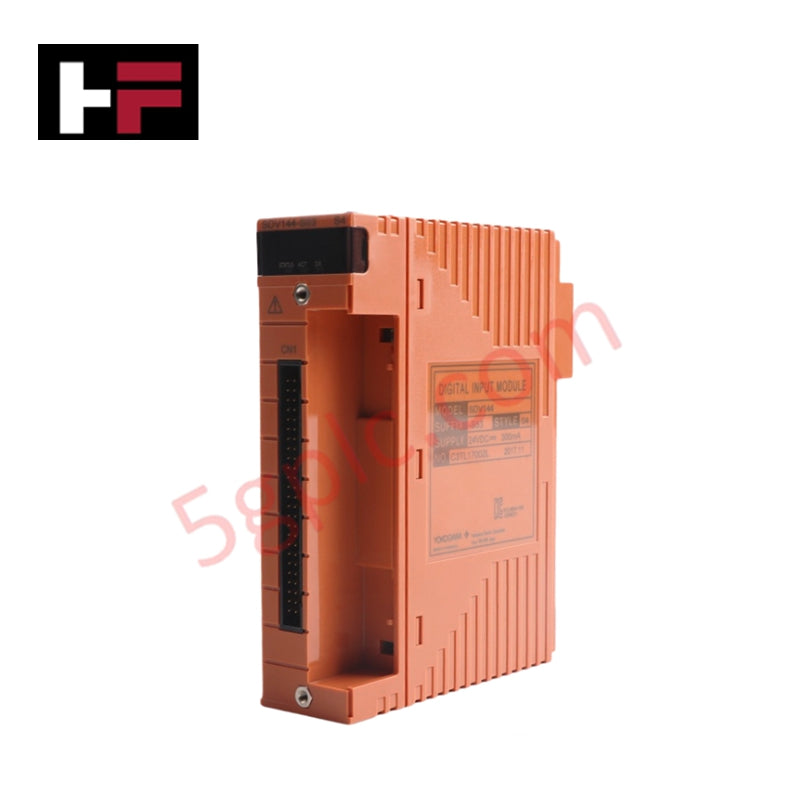

The SDV144-S13 is a 16-channel digital input module from Yokogawa, engineered for reliable signal acquisition in DCS and process control systems. Each channel provides module-level isolation to ensure accurate and stable readings. The module supports no-voltage contact signals, offering robust performance in standard industrial environments. It can be connected via pressure clamp terminals, MIL cables, or dedicated signal cables, providing flexible installation options.
Key Features
-
Model Number: SDV144-S13
-
Number of Inputs: 16, with module isolation
-
Input Signal: No-voltage contact, ON ≤1 kΩ, OFF ≥100 kΩ
-
Input Current: 6 mA ±20% (using external 24 V DC supply at 0 Ω input)
-
Contact Rating: 24 V DC ±20% / -10%, ≥10 mA
-
External Power Supply: 24 V DC ±20%, maximum current 200 mA
-
Instantaneous Maximum Input Voltage: 30 V DC
-
Input Response Time: 40 ms maximum
-
Withstand Voltage: 2 kV AC between input signal and system for 1 minute, 16-input line collectively
-
Current Consumption: 290 mA max (5 V DC), 140 mA max (24 V DC)
-
Weight: Approx. 0.36 kg (pressure clamp terminal or MIL cable), 0.41 kg (with signal cable interface adapter)
-
External Connection: Pressure clamp terminals, MIL cable, dedicated signal cable (AKB331)
Applications
The SDV144-S13 is designed for:
-
Collecting discrete input signals in DCS and PLC systems
-
Integration into Yokogawa process control networks
-
Oil & gas, chemical, and power generation signal monitoring
-
Industrial installations requiring reliable 16-channel digital input modules
FAQ
-
Q1: What type of signals can the SDV144-S13 accept?
A1: It supports no-voltage contact signals with ON ≤1 kΩ and OFF ≥100 kΩ. -
Q2: What is the input response time?
A2: The module updates input status within 40 milliseconds. -
Q3: How can the module be connected to the system?
A3: Connections are possible via pressure clamp terminals, MIL cables, or dedicated signal cable AKB331. -
Q4: What is the maximum permissible input voltage?
A4: The instantaneous maximum voltage is 30 V DC per channel.
