Product Details
Product Overview

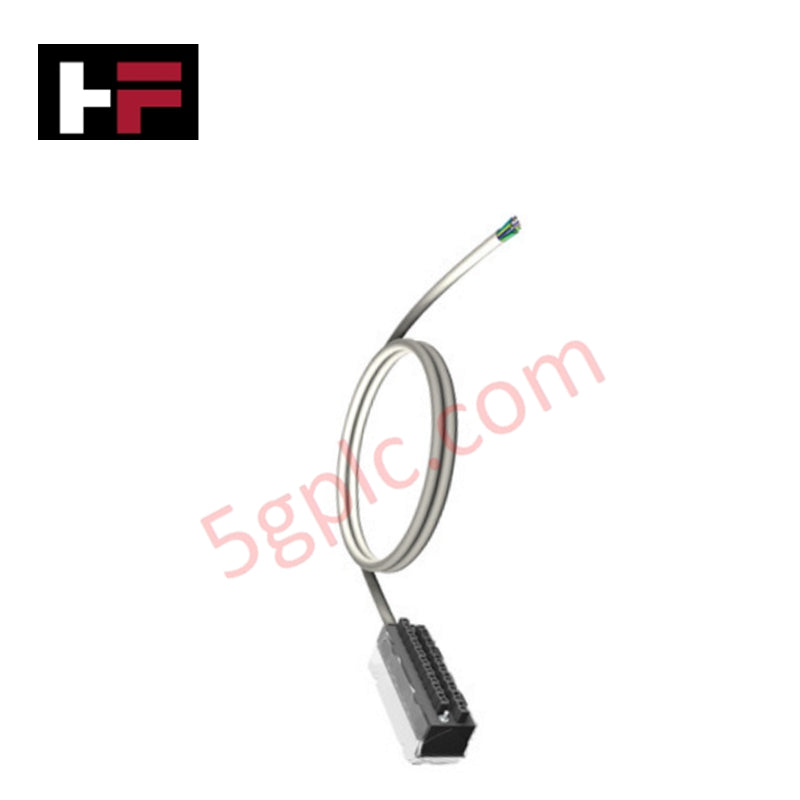

The BMXFTW301S provides a high-integrity connection interface for Schneider Electric Modicon X80 analog and mixed I/O modules. This 3-meter (9.8 ft) preformed cordset streamlines the transition from the PLC rack to the field terminal strip. We supply this product as 100% Brand New and Original, ensuring optimal signal conductivity and shielding for critical automation loops.
Technical Specifications
The BMXFTW301S utilizes professional-grade materials to maintain signal fidelity across its length:
| Feature | Specification |
| Cable Length | 9.8 ft (3 m) |
| Module Side Connection | 1 Removable Terminal Block (20 ways) |
| Field Side Connection | 1 Free end with color-coded flying leads |
| Compatibility | BMXAMI0410, BMXAMO0210, BMXAMM0600 |
| Net Weight | 1.04 lb (0.47 kg) |
| Core Identification | Color-coded according to DIN standards |
| Application | Analog I/O Signal Transmission |
Engineering Advantages
-
Reduces Wiring Errors: The color-coded flying leads allow technicians to identify and terminate wires rapidly without manual continuity testing. This "plug-and-play" module-side interface eliminates the risk of pin-to-pin misalignment.
-
Optimized Signal Integrity: The "S" suffix indicates shielding capabilities, which protect sensitive analog signals from electromagnetic interference (EMI) commonly found in industrial environments near variable frequency drives (VFDs) and high-power switchgear.
-
Rapid Maintenance: The 20-way removable terminal block permits module replacement without disconnecting individual field wires. This design minimizes system downtime during hardware upgrades or maintenance cycles.
-
Versatile Routing: The 3-meter length provides sufficient slack for routing through high-density cable trays and wire ducts, while the flexible jacket allows for tight-bend radius installations in compact control cabinets.
FAQs
-
Which specific Modicon X80 modules does this cordset support?
The BMXFTW301S integrates specifically with the BMXAMI0410 (analog input), BMXAMO0210 (analog output), and BMXAMM0600 (mixed analog) modules. Always verify the terminal count requirements of your specific I/O card before installation.
-
Is this cordset suitable for high-interference environments?
Yes. This shielded cordset effectively mitigates crosstalk and external noise, making it the preferred choice for transmitting 4-20mA or 0-10V analog signals in electrically noisy industrial settings.
-
Does the product arrive in factory-sealed packaging?
Absolutely. We guarantee the BMXFTW301S is 100% Brand New and arrives in its original Schneider Electric packaging with all manufacturer markings and GTIN (3595863920420) intact.
-
Can I shorten the cable if 3 meters is too long?
While you can trim the free end (flying leads side), we recommend maintaining the factory integrity of the shield and core terminations to ensure the highest level of signal protection.
