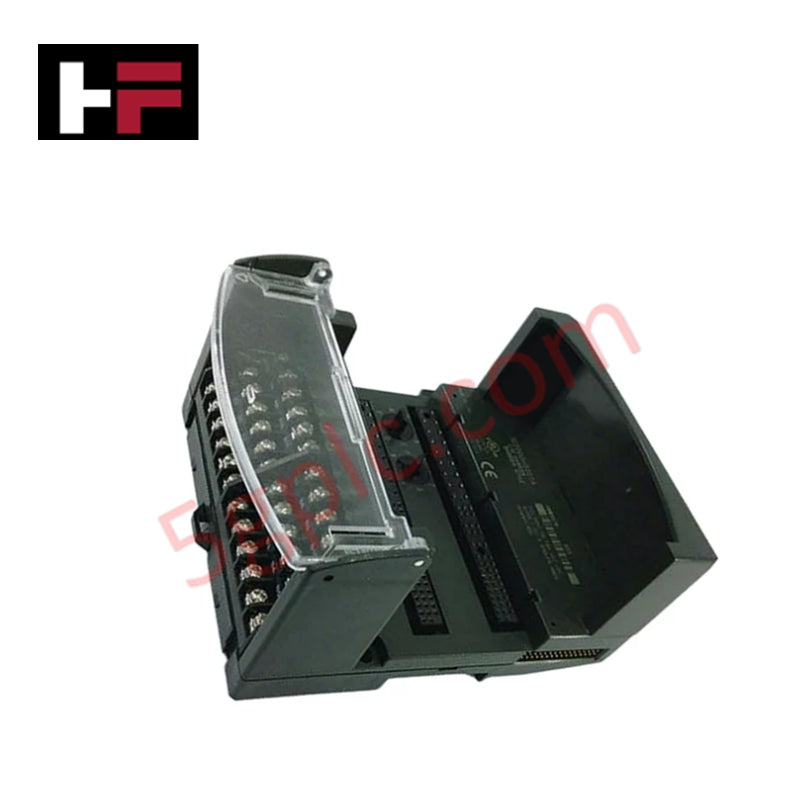

IC200CHS001 GE VersaMax I/O Barrier Carrier Module

Product Overview

The GE-Emerson IC200CHS001 is a barrier-style I/O carrier rack built for the VersaMax control platform. It provides a secure terminal interface between field wiring and I/O modules, supporting up to 32 I/O points with four additional terminals for common or power connections.

This carrier is equipped with 36 screw-type barrier terminals designed to simplify field wiring and maintenance. Engineered for industrial-grade performance, it can withstand voltage transients up to 300 VAC without damage and supports up to 2 A per channel and 8 A for power or ground circuits.

With durable construction, reliable keying features, and easy DIN-rail mounting, the IC200CHS001 ensures solid electrical connections and dependable performance in harsh industrial automation environments.

Technical Specifications

• Manufacturer: GE-Emerson

• Series: VersaMax

• Model Number: IC200CHS001

• Product Type: Barrier-Style I/O Carrier Rack

• Terminal Type: 36-position barrier-style terminal strip

• Supported I/O Points: Up to 32 I/O points + 4 common/power connections

• Maximum Voltage Rating: 264 VAC

• Transient Voltage Tolerance: Up to 300 VAC without damage

• Maximum Current per Point: 2 A

• Maximum Power or Ground Current: 8 A

• Terminal Torque: 0.37 to 0.5 lb-ft

• Recommended Wire Size: AWG 22–AWG 14 (solid or stranded copper, 90°C rated)

• Mounting Method: 7.5 x 35 mm DIN rail

• Weight: 0.82 lb (0.37 kg)

• Keying Dials: Prevent incorrect module installation

• Latch Hole: Provides secure module retention

• Auxiliary I/O Terminal Strip: Includes notches for optional accessory attachment

• Environmental Tolerance: Designed for industrial temperature and humidity conditions

Key Features

• 36-terminal barrier-style wiring for secure field connections

• Supports up to 32 I/O signal points with additional power and ground terminals

• Handles transient voltages up to 300 VAC without degradation

• Keying dials and latch hole for safe, accurate module placement

• Heavy-duty terminals accommodate 22–14 AWG solid or stranded wire

• DIN-rail mounting for fast installation and system scalability

• Ideal for distributed I/O configurations in VersaMax systems

• Built for long service life in vibration-prone or high-temperature environments

Applications

• Distributed I/O systems in manufacturing plants

• Process and factory automation wiring

• Control panel assembly and system integration

• Machine control and test system interfaces

• Electrical panel modernization and upgrades

FAQ

Q1: How many I/O points can the IC200CHS001 support?
It supports up to 32 I/O connections with an additional 4 terminals for power or common wiring.

Q2: What type of wiring is recommended?
Use copper conductors rated for 90°C, with wire sizes from AWG 22 to AWG 14, either solid or stranded.

Q3: Is the carrier protected against voltage spikes?
Yes, it can withstand transient voltages up to 300 VAC without sustaining damage.

Q4: How is the module mounted?
It mounts easily to a standard 7.5 x 35 mm DIN rail and includes features for mechanical stability.
