Product Details

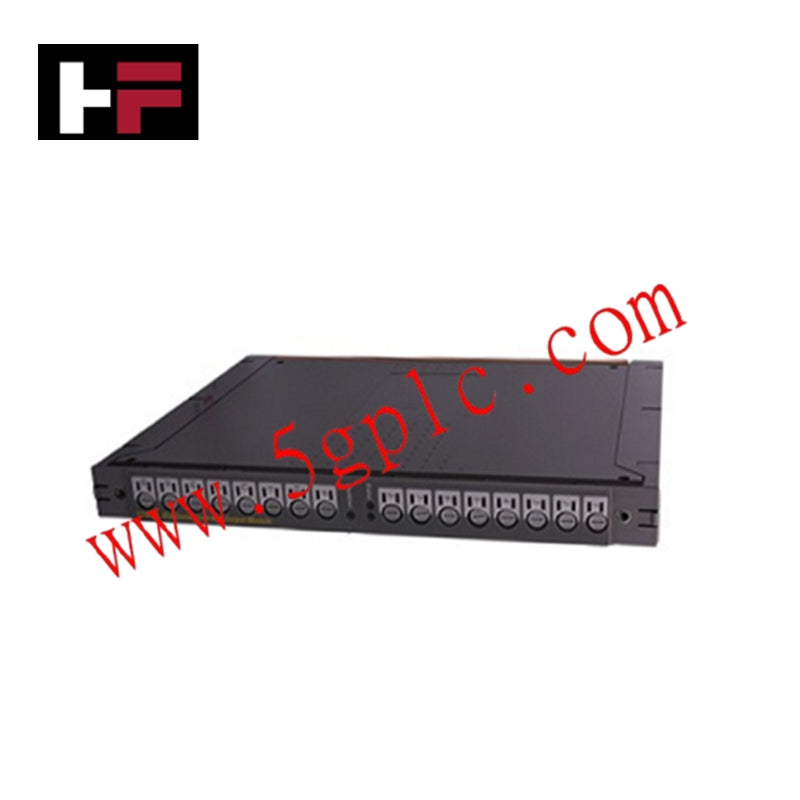

The ICS Triplex T8310, also cataloged as the T8310 Trusted Expander Processor Module, operates as a dedicated hardware component for inter-chassis signal extension and communication processing within Trusted TMR system architectures. The unit manages remote expansion links up to 30 m via TC-301 copper cabling or up to 10 km when paired with T8314 optical media converters.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | T8310 |
| Brand | ICS Triplex |
| Origin | United Kingdom |
| Weight | 1.33 kg (2.9 lb) |
| Dimensions | 266 mm x 31 mm x 303 mm (10.5 in x 1.2 in x 12.0 in) |
| Operating Temp | 0 deg C to +60 deg C (+32 deg F to +140 deg F) |
| Power Consumption | 45 W (Backplane Dissipation) |
| Backplane Supply Voltage | 20 VDC to 32 VDC |
| Module Slot Location | T8300 Expander Processor Slot |
| Isolation Voltage | 50 V Basic Insulation (Module to Backplane) |
| Fusing | Internal (Not User Serviceable) |
| Max Copper Distance | 30 m (using TC-301 copper cable) |
| Max Optical Distance | 10 km (using T8314 Fibre TX/RX units) |
| Relative Humidity | 10% to 95% non-condensing |
High-Reliability Safety Control & TMR Architecture
The T8310 module incorporates a triple modular redundancy (TMR) 2oo3 architecture to satisfy SIL3 certification criteria across distributed safety-instrumented platforms. Triplicated bus channels process incoming and outgoing data frames over the inter-module bus (IMB) with hardware voter logic, enforcing fail-safe state execution during signal transmission. Basic insulation rated at 50 V isolates the primary processing circuits from the backplane power supply, suppressing transient noise propagation across expander chassis chains.
Frequently Asked Questions
Q: What are the transmission distance limits for expander chassis links using the T8310 module?
A: Direct copper interconnects using TC-301 cable support distances up to 30 m, while extended optical links using T8314 Fibre TX/RX units support distances up to 10 km.
Q: Are the internal power fuses on the T8310 accessible for field maintenance?
A: No. The internal fusing components are integrated within the module assembly and are not user serviceable.
Q: Which rack chassis slot accepts the T8310 expander processor?
A: The T8310 is designed for direct insertion into the dedicated expander processor slots of the T8300 chassis.
Field Installation Guidelines
- Power off or verify backplane voltage limits (20 VDC to 32 VDC) prior to inserting the module into the dedicated T8300 chassis slot.
- Secure the top and bottom captive screws to maintain earth ground continuity and prevent vibration-induced connector displacement.
- Observe standard bending radius limits for TC-301 copper cables or fiber optic interconnects to prevent signal attenuation over long run lengths.
- Maintain adequate rack enclosure ventilation to dissipate the 45 W backplane thermal load during continuous operation.
