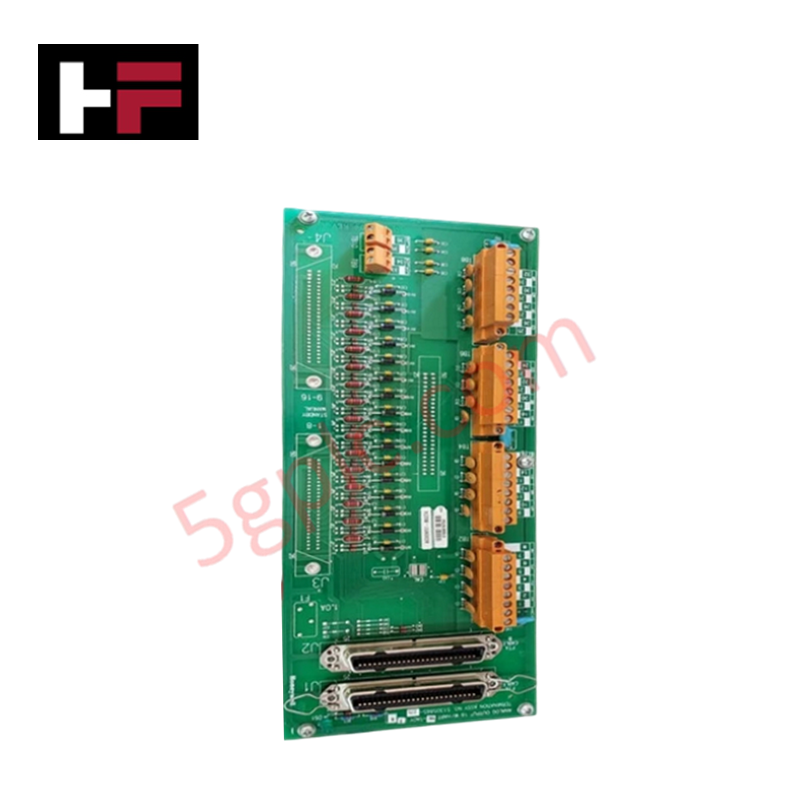

Honeywell MC-TDOD14 51309153-175 Digital Output FTA

The Honeywell 51309153-175, also cataloged as the MC-TDOD14 Digital Output FTA, operates as a dedicated hardware component for field contact signal routing within Honeywell TPS/TDC 3000, FSC, and Experion PKS system architectures. It provides physical cable termination and electrical interface points to route 14 discrete ON/OFF output channels operating at a nominal voltage of 24 VDC to external field loads. The assembly directs switching logic from host control modules through structured terminal blocks to actuate solenoid valves, relays, and field indicators.

Hardware Specifications

Process Control & Field Signal Isolation

The MC-TDOD14 incorporates channel-to-channel isolation to prevent field ground loop interference and suppress high-voltage transients across adjacent digital switching circuits. Designed for integration alongside 4-20 mA HART loop protocol instruments and high-density digital field control racks, the terminal board isolates backplane logic buses from field-side inductive spikes. Integrated status LEDs provide visual verification of active channel output states without requiring external test meters.

Frequently Asked Questions

Q: Does the MC-TDOD14 FTA contain onboard active logic processing elements?

A: No. The MC-TDOD14 functions as a passive field termination assembly (FTA) that provides physical wiring connections, channel isolation, and status LED indication for control signals generated by the host digital output module.

Q: What mechanisms protect individual output channels against field short circuits?

A: Short-circuit and overcurrent protection for each output circuit are provided by the current-limiting circuits or internal fusing located within the paired Honeywell digital output module driving the FTA.

Field Installation Guidelines

• Mounting Installation: Secure the assembly onto standard enclosure DIN rails or panel mounting plates, verifying that the mechanical retainers hold the unit firm against plant vibration.
• Cable Connection: Connect the pre-fabricated multi-conductor interface cable between the host MC digital output module header and the card socket until the connector latches click into place.
• Field Terminal Wiring: Strip field conductors to recommended strip lengths and secure them tightly into the screw terminal connectors. Torque terminal screws according to standard cabinet electrical practices.
• Shield Grounding: Connect field cable drain shields directly to the master enclosure signal ground bar at a single termination point to ensure high-frequency electromagnetic noise suppression.
