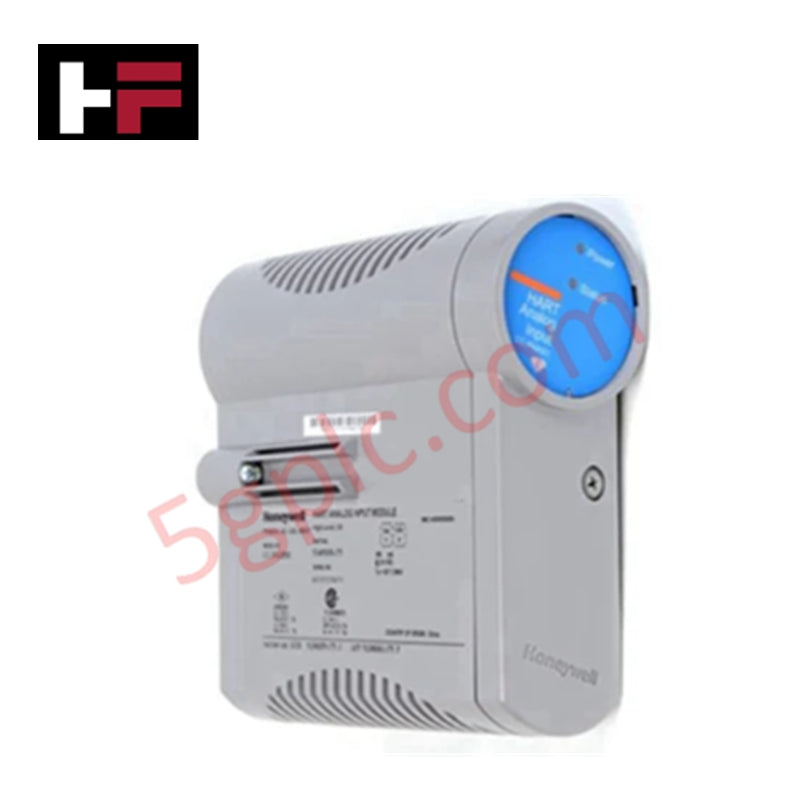

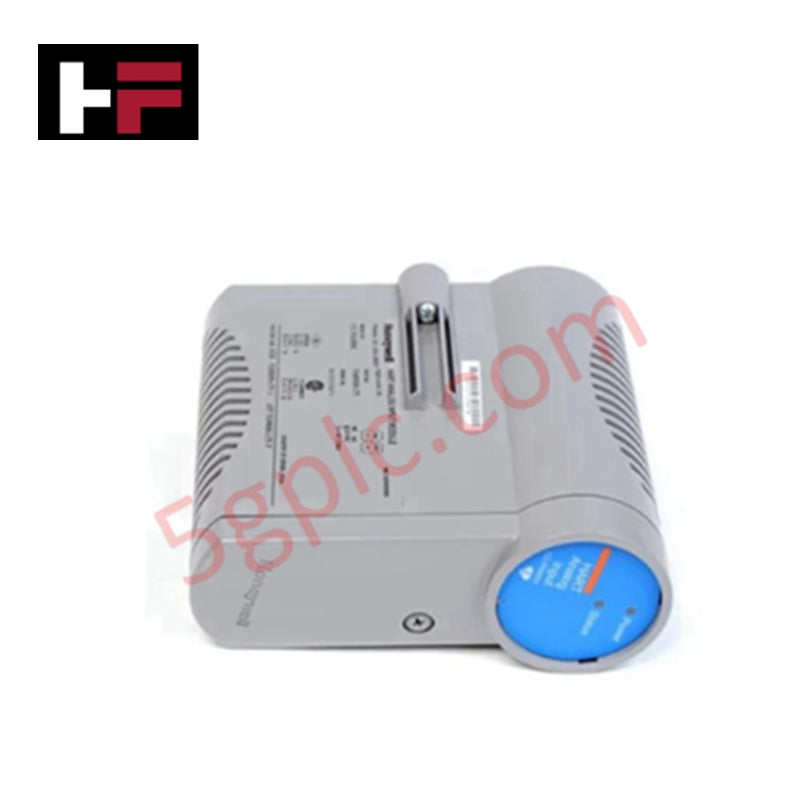

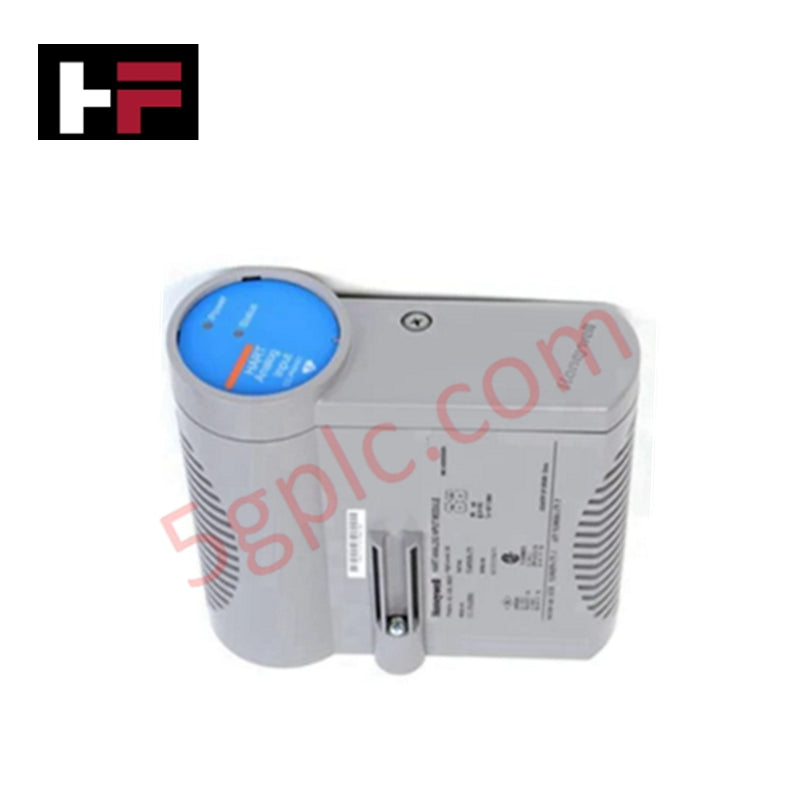

Honeywell 8C-SDOX01 51307051-175 Analog Input Module

Overview:
The Honeywell 8C-SDOX01 51307051-175 is a high-precision analog input module designed for integration with Experion PKS and C300 control systems. It delivers reliable signal acquisition and measurement from field devices, ensuring accurate process monitoring and seamless control system integration.

Key Features:

• 16 Isolated Analog Channels: Each input is electrically isolated to prevent interference and ensure signal integrity

• Flexible Input Ranges: Supports configurable 4–20 mA or 1–5 VDC signals

• High Resolution and Accuracy: 16-bit resolution with ±0.1% of span accuracy

• Robust Power Supply: Operates at 24 VDC

• Channel-to-System Isolation: Enhances safety and protects against electrical faults

• Compact and Durable Design: Optimized for industrial environments with operating temperatures from 0°C to +60°C

Technical Specifications:

• Manufacturer: Honeywell

• Model: 8C-SDOX01

• Part Number: 51307051-175

• Module Type: Analog Input Module

• Channels: 16 isolated analog inputs

• Input Signal Range: 4–20 mA, 1–5 VDC (configurable)

• Resolution: 16-bit

• Accuracy: ±0.1% of span

• Power Supply: 24 VDC

• Isolation: Channel-to-channel and channel-to-system isolation

• Dimensions: 127 x 95 x 60 mm

• Weight: 0.5 kg

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5–95% RH, non-condensing

• Warranty: 12 months

Applications:

• Process monitoring and control in chemical, pharmaceutical, and power generation systems

• Integration with Experion PKS and C300 automation platforms

• Precision measurement and data acquisition from industrial sensors

FAQ:

• Q: What input signals does this module support?
  A: Configurable 4–20 mA and 1–5 VDC signals

• Q: How many channels are isolated?
  A: All 16 input channels provide full electrical isolation

• Q: Is this module compatible with Experion PKS?
  A: Yes, fully compatible with Experion PKS and C300 systems
