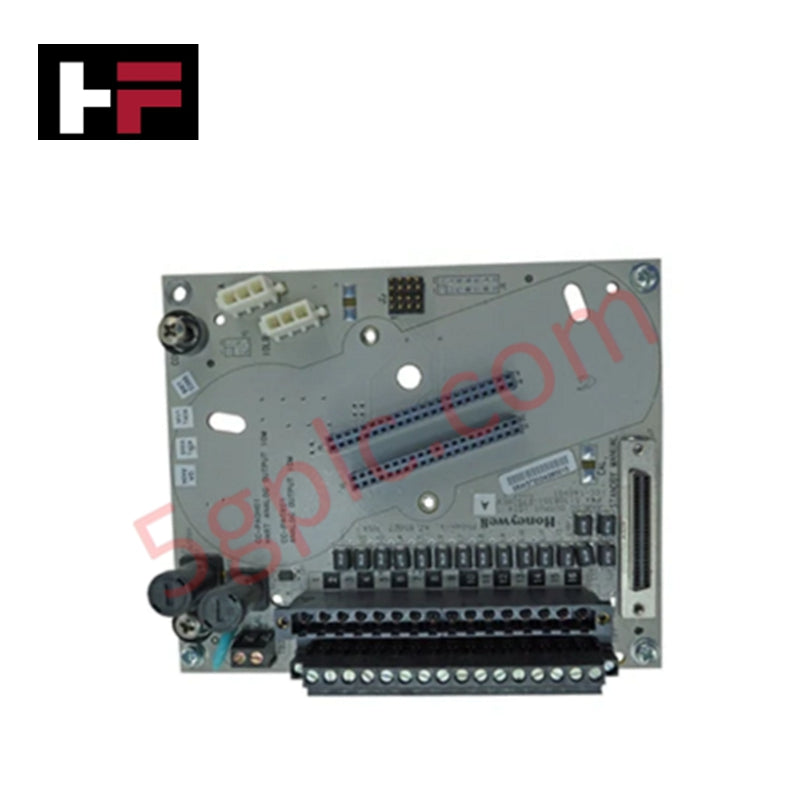

High-Precision Analog Input Module 8C-TAIXA1 | Honeywell

Overview:
The Honeywell 8C-TAIXA1 is an advanced analog input module engineered for high-precision signal acquisition in industrial control systems. Designed for use with Experion PKS Series C and compatible control platforms, this module provides reliable analog-to-digital conversion for 8 channels, supporting voltage, current, and resistive inputs. Its robust design ensures stable operation in demanding industrial environments, while optical isolation safeguards both inputs and the control system. Compact dimensions and versatile mounting options make it suitable for DIN rail or panel installations.

Specifications:

• Manufacturer: Honeywell

• Model: 8C-TAIXA1

• Part Number: 51307127-175

• Module Type: Analog Input

• Input Channels: 8

• Supported Signals: 4–20 mA, 0–10 V, resistive inputs

• Input Range: Configurable (0–20 mA, 4–20 mA, 0–10 V)

• Resolution: 16-bit ADC

• Accuracy: ±0.05% of full scale

• Input Impedance: >250 Ω (current), >1 MΩ (voltage)

• Response Time: <100 ms

• Isolation: Optical isolation between inputs and control system

• Power Supply: 24 VDC

• Dimensions: 220 mm × 120 mm × 152.4 mm

• Weight: 0.3 kg

• Mounting: DIN rail or panel

• Operating Temperature: -20°C to +70°C

• Country of Origin: USA

Features:

• High-Precision Conversion: Accurate analog-to-digital processing for critical measurements

• Versatile Signal Support: Handles current, voltage, and resistive inputs

• Reliable Isolation: Optical separation ensures signal integrity and system safety

• Compact and Flexible: Fits DIN rail or panel installations for easy integration

• Durable Construction: Suitable for harsh industrial environments

Applications:

• Real-time process monitoring in chemical, power generation, and manufacturing industries

• Integration with Experion PKS and other Series C control systems

• Precision data acquisition for automation and control loops

FAQ:

• Q: How many input channels does this module support?
  A: 8C-TAIXA1 provides 8 fully isolated analog input channels.

• Q: Can it handle both current and voltage inputs?
  A: Yes, the module supports configurable 4–20 mA, 0–10 V, and resistive input types.

• Q: Is the module suitable for harsh environments?
  A: Yes, its robust design allows operation from -20°C to +70°C with optical isolation for protection.
