Overview

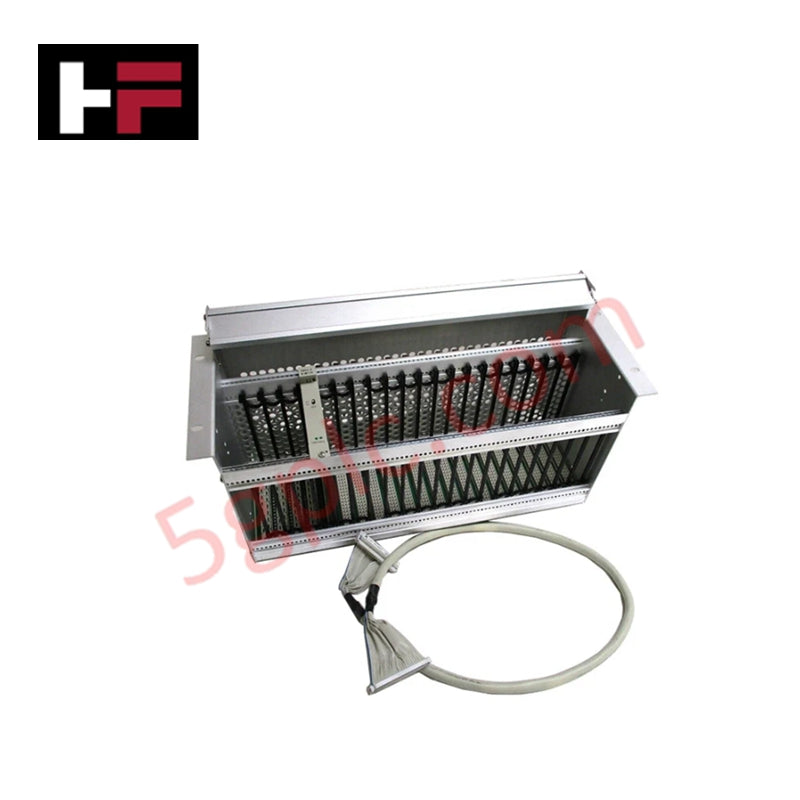

The B 9302 is a modular I/O Rack Assembly Kit from HIMA, designed for safety-critical automation systems. It provides a robust framework to mount input/output modules, ensuring reliable signal distribution and simplified system integration. This rack assembly enhances system safety and operational reliability for industrial applications.
Specifications
I/O Rack
-
Model: F K 1406 I/O Rack
-
Height: 4 units
-
Width: 19 inches
-
Integrated Features: Includes cable tray and hinged receptacle for easy labeling and organized wiring
Coupling Module
-
Included Component: F 7553 Coupling Module installed in slot 17
-
Purpose: Provides secure signal routing and connectivity for modules
Flat Cable Options
-
Cable Model: BV 7032 Flat Cable
-
Length Variants:
-
B 9302-0.5: 0.5 meters
-
B 9302-1: 1 meter
-
Custom lengths available as B 9302-X
-
Maximum Bus Length: 30 meters for extended connectivity
I/O Module Slots
-
Configuration: Slots 1–16 available for various I/O modules
-
Flexibility: Supports diverse system setups depending on application requirements
Optional Power Distribution Modules
-
Model: F 7133 Power Distribution Modules
-
Capacity: 1–4 modules installed in slots 18–21
-
Functionality: Provides fusing and distribution of L+ (EL+) and L-, with internal fuse monitoring for enhanced safety and fault detection
Features
-
High-density modular design for safety-critical applications
-
Integrated cable management for organized wiring
-
Flexible module slot configuration for I/O expansion
-
Optional power distribution modules with internal monitoring
-
Compatible with HIMA safety controllers and other modular safety systems
Applications
Ideal for safety-related automation, critical industrial processes, and system setups requiring high reliability. Supports integration of I/O modules in SIL-rated safety environments.
FAQ
Q: What is the height of the F K 1406 I/O Rack?
A: 4 units high, 19 inches wide.
Q: Which coupling module is included?
A: F 7553, installed in slot 17 for signal routing.
Q: How long can the flat cable be extended?
A: Standard lengths are 0.5 m and 1 m; custom lengths are available, with a maximum bus length of 30 meters.
Q: How many I/O module slots are available?
A: Slots 1–16 are configurable for input/output modules.
Q: Are optional power distribution modules supported?
A: Yes, F 7133 modules can be installed in slots 18–21 with internal fuse monitoring.
