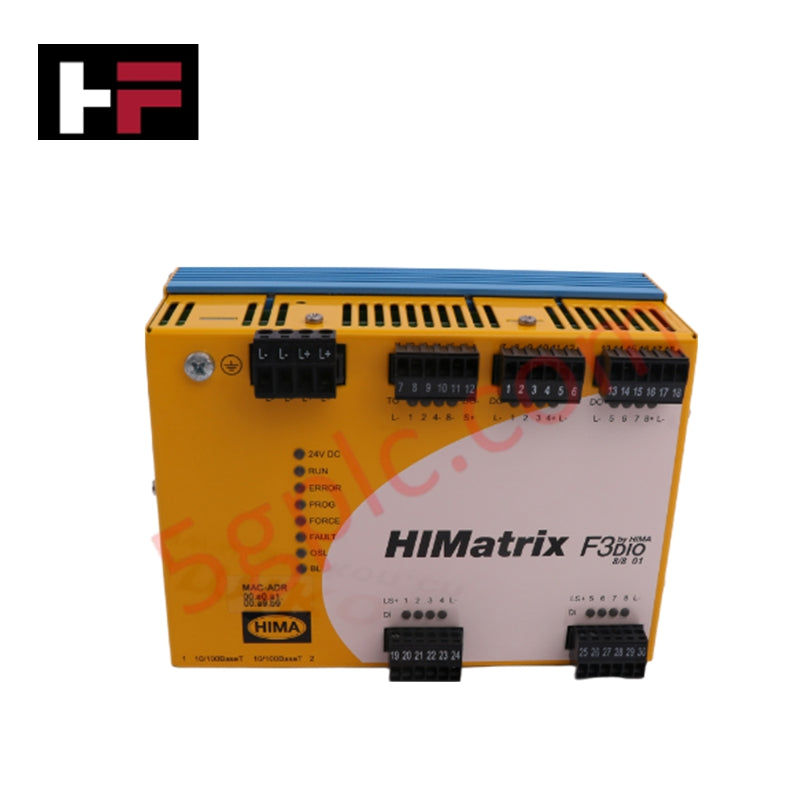

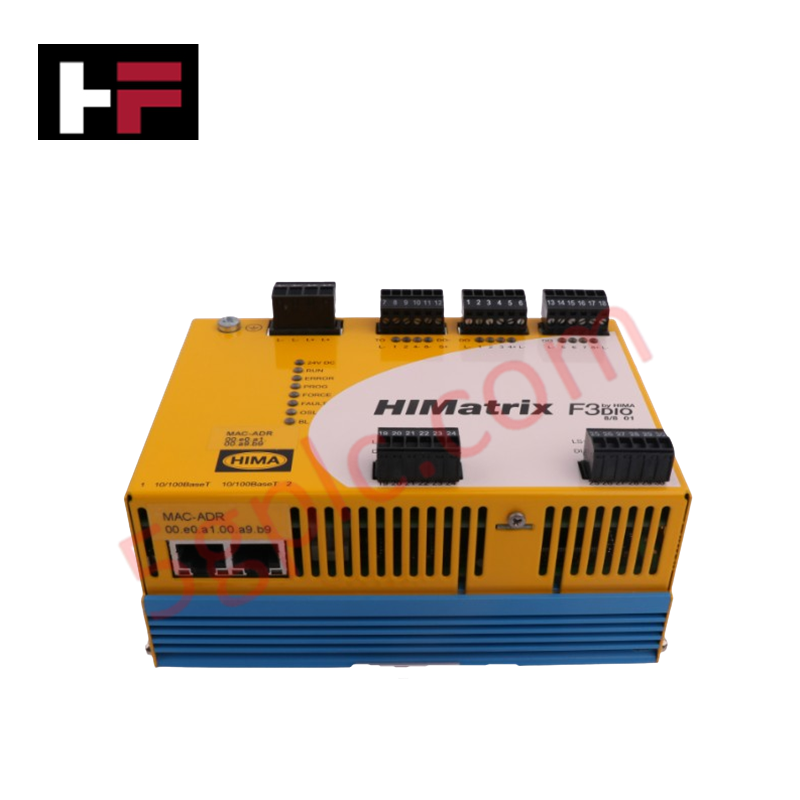

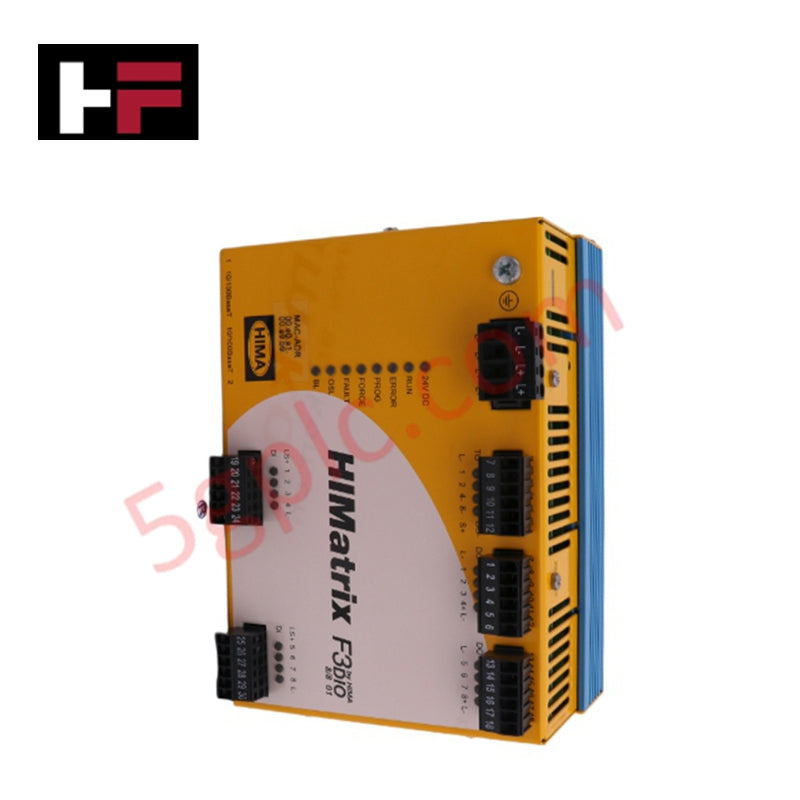

HIMA F3 DIO 8/8 01 | Safety-Related I/O Controller Module

Overview

The HIMA F3 DIO 8/8 01/F3DIO8/801 is a high-reliability digital input/output module engineered for HIMatrix safety systems. It combines SIL 3 certified safety performance with compact design, ensuring dependable operation in complex industrial automation environments. The module supports simultaneous digital input and output operations, enabling seamless integration in safety-critical applications.

Technical Specifications

• Manufacturer: HIMA

• Model Number: F3 DIO 8/8 01/F3DIO8/801

• Product Type: Safety-Related Controller Module

• Digital Inputs: 8

• Digital Outputs: 8

• Operating Voltage: 24 V DC

• Power Consumption: 8 W

• Operating Temperature Range: -20°C to +60°C

• Storage Temperature Range: -40°C to +85°C

• Dimensions: 156 × 77 × 113 mm

• Weight: 0.7 kg

• Protection Rating: IP20

• Certifications: IEC 61508 compliant, SIL 3 certified

• Communication Protocols: Ethernet, Modbus TCP/IP

• Mounting: DIN rail

Key Features

• Compact digital I/O module with 8 inputs and 8 outputs

• Certified SIL 3 for high-level safety applications

• Supports Ethernet and Modbus TCP/IP communication for integration

• Rugged construction suitable for industrial environments

• Efficient power consumption of only 8 W

Application Scenarios

• Process Safety: Reliable monitoring and control in safety instrumented systems

• Machine Safety: Emergency stop, interlocks, and protective devices

• Building Automation: Safety monitoring in elevators, fire systems, and access controls

FAQ

Q: What certifications does the F3 DIO 8/8 01 hold?
A: It is SIL 3 certified and compliant with IEC 61508.

Q: What is the operating voltage and power consumption?
A: 24 V DC operating voltage with 8 W power usage.

Q: How is this module mounted?
A: Standard DIN rail mounting for easy installation.
