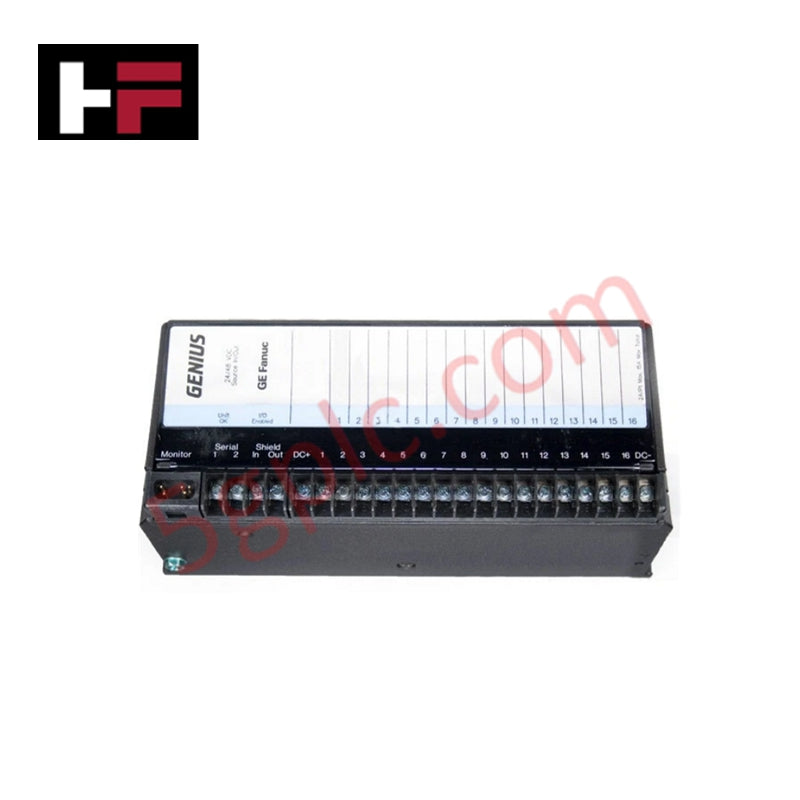

The IC660BBD021 from GE Fanuc is a Sink I/O Block belonging to the Genius I/O family, designed for high-performance industrial control systems. Engineered for reliability and precision, it provides efficient digital input and output management for distributed control networks. The module is widely used in GE Mark I and Mark II control systems, offering robust electrical isolation and durable operation under demanding industrial conditions.
Technical Specifications
-
Model: IC660BBD021
-
Manufacturer: GE Fanuc (General Electric)
-
Series: Mark I / Mark II
-
Product Type: Sink I/O Block
-
Operating Voltage: 18–56 VDC (24/48 V nominal), 18–30 VDC (24 V operation)
-
Power Requirement: 150 mA typical / 300 mA maximum
-
Power Supply Dropout Time: 10 ms
-
Heat Dissipation: 68.8 W (with all 16 outputs active at 2A each)
-
Block-to-Block Isolation: 1500 V
-
Indicators (Block): Unit OK, I/O Enabled LEDs
-
Indicators (Per Circuit): Individual load-side LEDs for each channel
-
Dimensions (H × W × D): 22.44 cm × 8.89 cm × 10.00 cm
-
Weight: 4 lbs (1.8 kg)
-
Mounting Type: Panel or rack mounted
-
Material: Industrial-grade aluminum housing
-
Country of Origin: United States of America
-
Availability: In stock
Key Features
-
Provides digital I/O connectivity for GE Genius control systems
-
Built-in visual diagnostics with per-channel and block-level LED indicators
-
1500V electrical isolation for enhanced safety and noise immunity
-
Handles high-current loads up to 2A per output
-
Fast response with stable voltage operation from 18–56VDC
-
Compatible with GE Fanuc Mark I and Mark II systems
-
Compact, rugged design for long-term industrial reliability
Applications
The IC660BBD021 Sink I/O Block is commonly used in:
-
Distributed industrial automation systems
-
GE Mark I / Mark II turbine and process control systems
-
Machine control and motor management
-
Manufacturing and energy applications requiring reliable digital I/O performance
FAQ
Q: What voltage range does the IC660BBD021 operate within?
A: It operates between 18 and 56 VDC, supporting both 24V and 48V configurations.
Q: Does this module include electrical isolation?
A: Yes, it features 1500V block-to-block isolation for added protection.
Q: How many outputs can be active simultaneously?
A: All 16 outputs can be active at 2A each, with total heat dissipation of 68.8 W.
Q: Which GE systems are compatible with this block?
A: It is designed for use with GE Mark I and Mark II control platforms.
