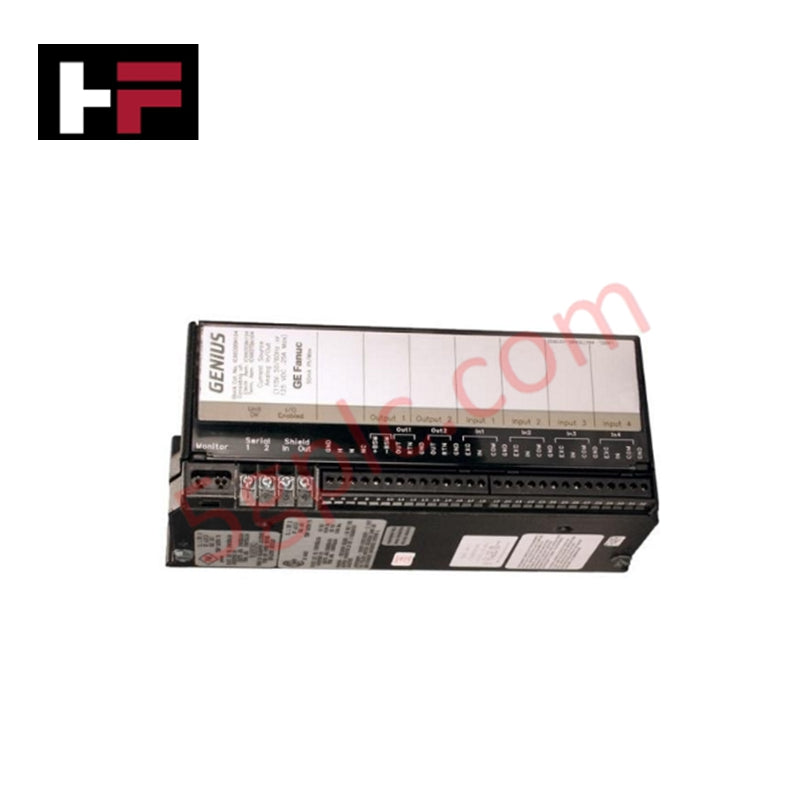

GE Fanuc Genius I/O IC660ERD025 DC Source Electronics Assembly

Overview
The IC660ERD025 from GE Fanuc is a DC-powered source electronics module engineered to provide reliable electronic support for IC660BRD025 Genius Modular Redundancy Sinking Output Blocks. Designed for high-performance operation, this module ensures precise source output control and seamless integration within Genius I/O systems. Its compact design and broad operating range make it suitable for industrial automation applications that demand stability and accuracy.

Technical Specifications

• Model Number: IC660ERD025

• Manufacturer: GE Fanuc

• Series: Genius I/O

• Type: DC-Powered Source Electronics Module

• Compatible I/O Block: IC660BRD025

• Voltage Rating: 24/48 V DC

• Power Consumption: 150 mA typical / 300 mA maximum

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 100°C

• Relative Humidity: 5% to 95%, non-condensing

• Weight: ~1 lb (0.45 kg)

• Mounting: Compatible with Genius I/O system racks

Key Features

• Provides full electronic functionality for IC660BRD025 output blocks

• Compact, lightweight, and easy to integrate

• Wide voltage tolerance for stable DC operation

• Reliable operation in standard industrial temperature ranges

• Compatible with modular Genius I/O systems for scalable configurations

Applications

• Redundant source output control in Genius I/O networks

• Distributed process control and monitoring

• Industrial automation applications requiring stable DC-powered source electronics

• Environments needing reliable and precise output control

FAQ

Q: Which output block does IC660ERD025 support?
A: Designed specifically for the IC660BRD025 Genius Modular Redundancy Sinking Output Block.

Q: What is the typical current consumption?
A: 150 mA under normal operation, with a maximum of 300 mA.

Q: Can it withstand extreme storage temperatures?
A: Yes, it can be stored from -40°C to 100°C while maintaining functional integrity.
