Product Details
Overview

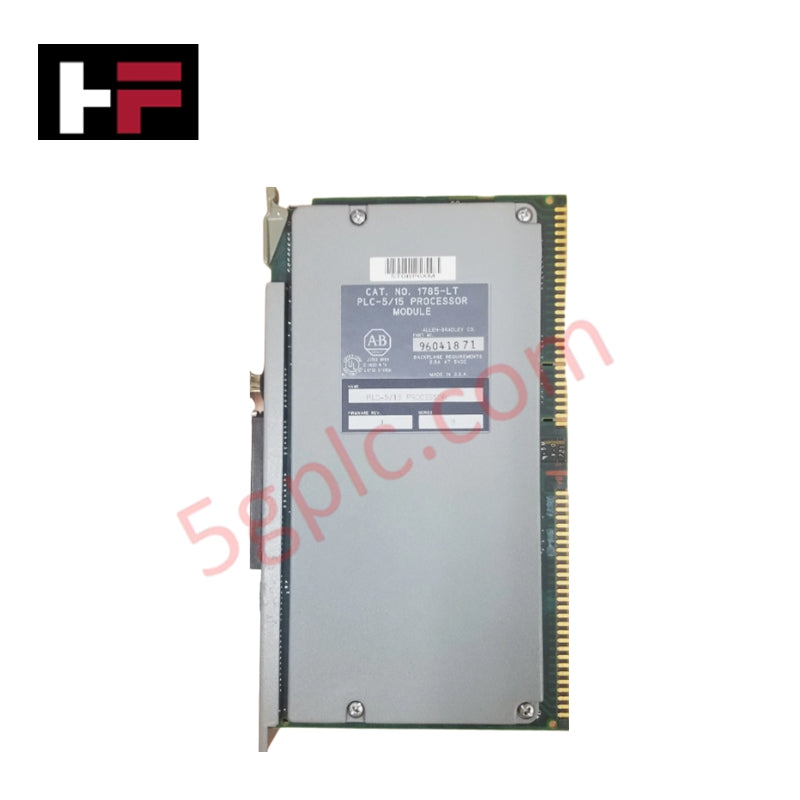

The Allen-Bradley 1785-LT is a high-performance PLC-5/15 processor module designed for the Classic PLC-5 series. It provides fast logic execution and supports both local and remote I/O expansion, delivering reliable performance for complex industrial control systems. The module is engineered for durability and long-term operation in harsh industrial environments.
Technical Specifications
-
Model Number: 1785-LT
-
Brand / Series: Allen-Bradley PLC-5
-
Module Type: Processor Module
-
Weight: 3.06 lbs (1.39 kg)
-
Embedded RAM: 6K Words, expandable up to 14K Words
-
Memory Expansion Modules: 4K RAM (1785-MR), 8K RAM (1785-MS), 8K EEPROM (1785-MJ)
-
Battery: 1770-XY
-
Program Scan Time: 2 ms/K words (bit logic), 8 ms/K words typical
-
Supported Local I/O: Up to 4 racks (1 resident rack)
-
Supported Remote I/O: Up to 3 remote racks
-
I/O Capacity: 512 inputs + 512 outputs using 16 or 32-pt modules
-
Max Total I/O: 3072 (any mix) or 3072 in + 3072 out (complementary)
-
Analog I/O Capacity: 512, Max Analog I/O: 3072
-
DH+ Channel: Yes
-
Remote I/O Channel: Yes
-
Hardware Addressing: 2-slot, 1-slot, ½ slot
-
Module Location: 1771-I/O chassis, left-most slot
-
Keying: Between 40–42; Between 54–56
-
I/O Scan Time Per Rack: 10 ms @ 57.6 kbits/s, 7 ms @ 115.2 kbits/s, 3 ms @ 230.4 kbits/s
-
Max I/O Chassis Total: 93
-
Max I/O Chassis Extended Local: 0
-
Max I/O Chassis Universal Remote: 32 max per I/O link
Key Features
-
High-Speed Processing: Optimized 6K Words SRAM with up to 14K expansion for large programs.
-
Comprehensive I/O Support: Supports local and remote I/O expansion with up to 3072 points.
-
Built-In Communication: DH+ and standalone scanner for local/remote I/O ensures seamless integration.
-
Flexible Memory Options: Supports RAM and EEPROM modules for data retention and program storage.
-
Industrial Durability: Designed for 1771-I/O chassis with long-term stability in industrial environments.
Applications
The 1785-LT is suitable for:
-
Manufacturing automation and process control
-
Data acquisition and SCADA systems
-
Large-scale PLC networks with multiple local and remote racks
-
Critical industrial applications requiring high-speed I/O processing
Similar Models
-
1785-LP – Smaller memory PLC-5/10 module, lower I/O capacity.
-
1785-LT – Standard PLC-5/15 processor with 6K SRAM, expandable up to 14K.
-
1785-LX – High-capacity PLC-5/20 processor module for extended I/O and memory requirements.
FAQ
Q: How many I/O points can the 1785-LT module manage?
A: It can handle up to 512 inputs and 512 outputs per module, with a maximum total I/O of 3072.
Q: Can the embedded RAM be expanded?
A: Yes, the 6K Words SRAM can expand up to 14K Words using memory modules.
Q: What chassis does this module fit into?
A: It is designed for the 1771-I/O chassis, occupying the left-most slot.
Q: Does it support remote I/O?
A: Yes, it can interface with up to 3 remote racks via DH+ channels.
