DIO216 | Digital Input/Output Module | Bachmann

Overview

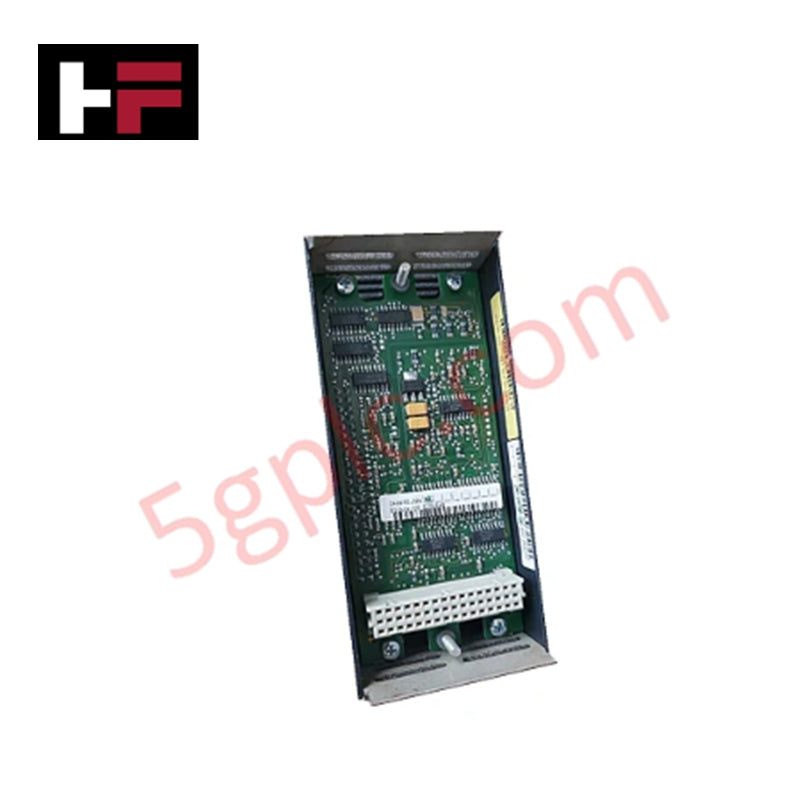

The Bachmann DIO216 is a multifunctional digital input/output module designed for industrial automation tasks. Combining both inputs and outputs, it provides versatile control and monitoring capabilities for a wide range of digital devices in automation systems. Its robust design and broad operating range ensure reliable performance in demanding environments.

Specifications

Inputs

• Quantity: Up to 16 digital inputs

• High-Level Input Voltage: 15–34 VDC

• Low-Level Input Voltage: 0–5 VDC

• Normal Input Delay: 600 µs

• Internal Resistance: 6.8 kΩ

• Status Indicator: Green LED

• Interrupt Inputs: 1

Outputs

• Quantity: Up to 16 digital outputs

• Output Voltage Range: 18–34 VDC

• Maximum Output Current per Channel: 1 A

• Maximum Total Current: 12 A

• Status Indicator: Green LED

• Maximum Switching Frequency (Ohmic Load): 1 kHz

External Power Supply

• Reverse Polarity Protection: Yes

• Galvanic Isolation from System: 500 V

Certifications and Approvals

• General: CE, cULus, CCC

• Marine: DNV GL, LR, ABS, BV

Environmental Conditions

• Operating Temperature: -30 to +60 °C

• Operating Humidity: 5–95% without condensation

• Storage Temperature: -40 to +85 °C

• Storage Humidity: 5–95% with condensation

• Pollution Degree: 2 (IEC 60664-1, without condensation)

Physical Characteristics

• Dimensions: 5.4 cm x 11.8 cm x 7.0 cm (2.1" x 4.6" x 2.8")

• Weight: 0.3 kg

Features

• Combined I/O Module: Integrates both digital inputs and outputs for versatile control

• High Switching Frequency: Supports up to 1 kHz for rapid signal processing

• Galvanic Isolation: Ensures safe separation between module and system power

• Robust LED Indicators: Provide clear real-time status for inputs, outputs, and module operation

• Wide Voltage Range: Suitable for diverse industrial power systems

• Industrial-Grade Design: Operates reliably under extreme temperatures and high humidity

• Marine-Ready: Certified for use in marine applications with DNV GL, LR, ABS, and BV approvals

Applications

The DIO216 is suitable for factory automation, process control, and marine automation systems. It can be used for monitoring sensors, controlling actuators, and handling complex digital signaling tasks in high-reliability environments.

FAQ

Q: How many inputs and outputs does this module support?
A: The DIO216 supports up to 16 digital inputs and 16 digital outputs simultaneously.

Q: Can it handle high switching speeds?
A: Yes, the module supports up to 1 kHz switching frequency on resistive loads.
