Overview

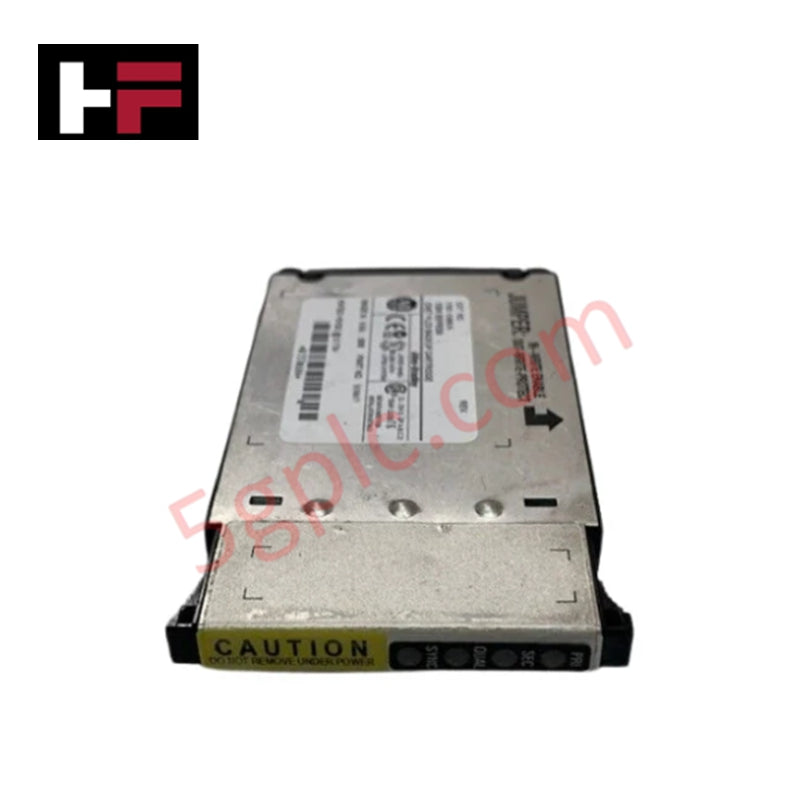

The 1785-CHBM from Allen-Bradley is a hot-backup memory cartridge built for the PLC-5 series. It ensures uninterrupted operation by maintaining critical program and data memory during system faults. With non-volatile storage and robust shock resistance, this module enhances the reliability and resilience of your PLC systems.
Technical Specifications
-
Manufacturer: Rockwell Automation
-
Brand: Allen-Bradley
-
Part Number: 1785-CHBM
-
Module Type: Hot-Backup Memory Cartridge
-
Memory Capacity: 100 Kilowords (non-volatile user memory)
-
Compatible Processors: 1785-L40C15, 1785-L80C15
-
Bus Communications: Local PCI 2.3 compliant
-
Maximum Modules per System: 4
-
Shock Resistance: Up to 30 g
-
LED Indicators: One per channel for diagnostics and status
-
Coating: Conformal coated for environmental protection
-
Required External Power: None
-
Typical AC Signal Delay (Off): 29 ms ± 8 ms
-
Typical DC Signal Delay (Off): 30 ms ± 7 ms
-
Wiring Arm: 1771-WN
-
Dimensions: 4.5 × 12.4 × 6.3 in (115 × 317 × 160 mm)
-
Weight: 0.31 lbs (0.14 kg)
Applications
-
Continuous PLC-5 operations during power or system faults
-
High-reliability industrial control environments
-
Critical process backup for large PLC-5 networks
-
Replacement or upgrade for legacy hot-backup memory requirements
FAQ
Q: Does 1785-CHBM require an external power supply?
A: No, it draws power directly from the PLC-5 backplane.
Q: Which PLC-5 processors are supported?
A: Fully compatible with 1785-L40C15 and 1785-L80C15 processors.
Q: How much memory is available in this hot-backup cartridge?
A: 100 Kilowords of non-volatile memory for program and data storage.
