Allen-Bradley 1783-NATR Stratix Configurable NAT Router

Product Description

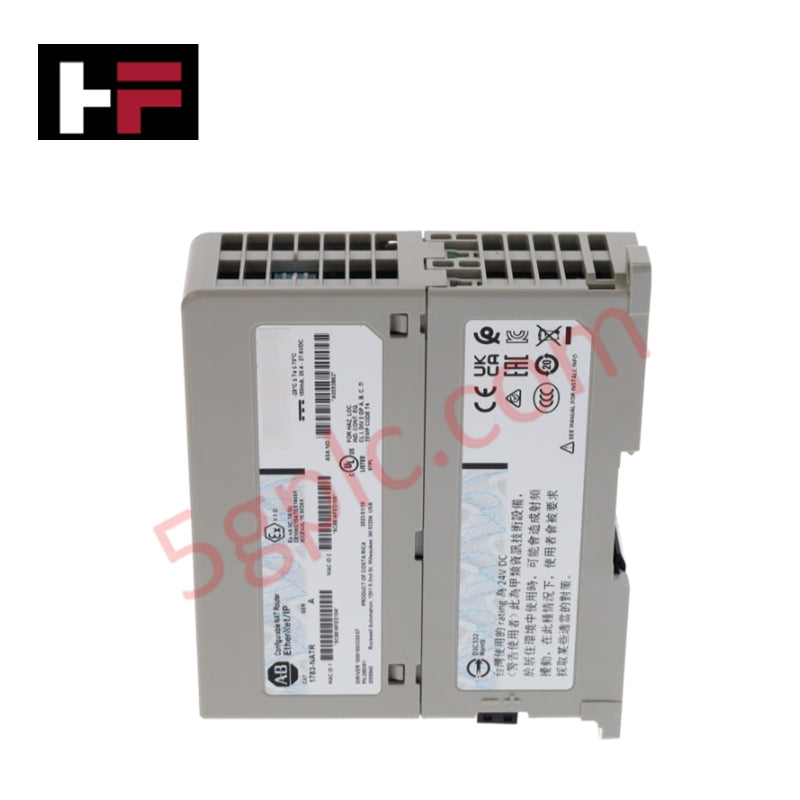

The Allen-Bradley 1783-NATR is a configurable Network Address Translation (NAT) router designed for use with Stratix managed switches and industrial automation networks. It enables flexible IP address mapping, supports multiple topologies, and provides secure communication for devices in distributed control systems. With DIN rail or panel mounting options, robust diagnostics, and wide operating temperature tolerance, it is built for demanding industrial environments.

Technical Specifications

• Manufacturer Allen-Bradley

• Product Line Stratix Managed Switches

• Product Type NAT Router

• Part Number 1783-NATR

• Weight 0.75 lbs (0.34 kg)

• Ports 1 RJ45 Ethernet port

• Supported Translation Mappings Up to 32 configurable mappings

• Supported Protocols CIP, ICMP, HTTP, DNS

• Power Supply Input 24 VDC nominal (DC connector supported)

• Installation Orientation Horizontal or vertical

• Mounting Options DIN rail or panel mount

• Supported Topologies Linear, Star, Device Level Ring (DLR)

• Status Indicators OK, Link1, Link2, Public Port LEDs

• Diagnostics Web user interface, Logix Designer application, LED indicators

• SD Card Support Optional for configuration storage

• Operating Temperature Range -40 to 60 °C (-40 to 140 °F)

• Storage Temperature Range -40 to 85 °C (-40 to 185 °F)

• Enclosure Rating Industrial-grade, suitable for harsh environments

Application Scenarios

• IP address translation for integrating devices into existing networks

• Industrial automation systems requiring secure communication routing

• Distributed control systems using Device Level Ring or linear topologies

• Applications needing flexible configuration and diagnostics via web interface

FAQ

Q: How many translation mappings can the 1783-NATR support?  A: It supports up to 32 configurable mappings.

Q: What mounting options are available?  A: It can be mounted on DIN rails or panels.

Q: Does the module support diagnostics?  A: Yes, it provides diagnostics via web interface, Logix Designer, and LED indicators.

Comparison with Similar Models

• 1783-NATR: Configurable NAT router with 32 mappings.

• 1783-ETAP: Ethernet/IP tap module for Device Level Ring networks.

• 1783-BMS: Stratix managed switch for larger network infrastructures.
