Product Details
Overview

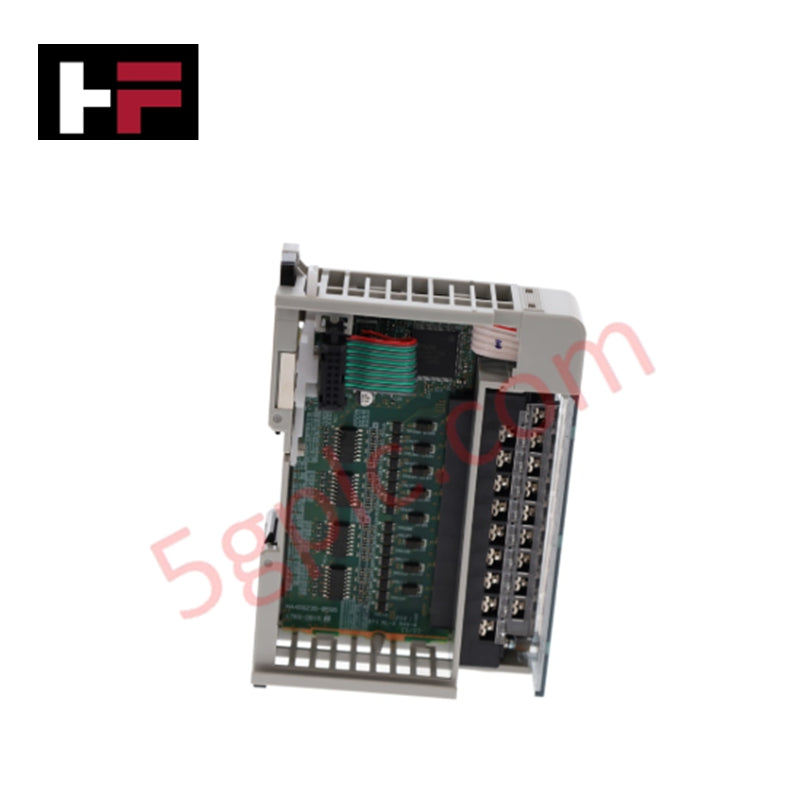

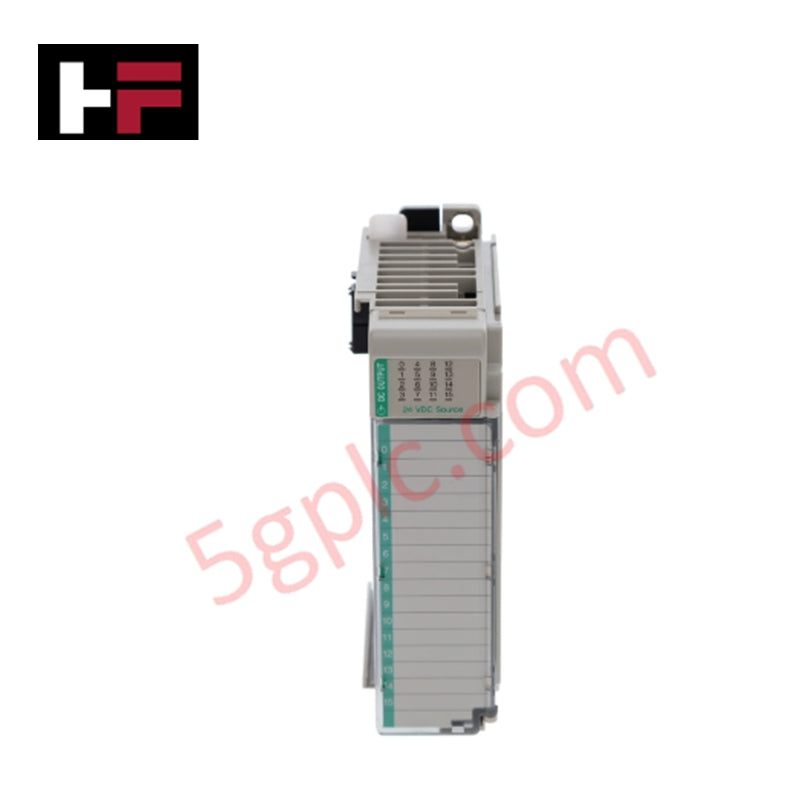

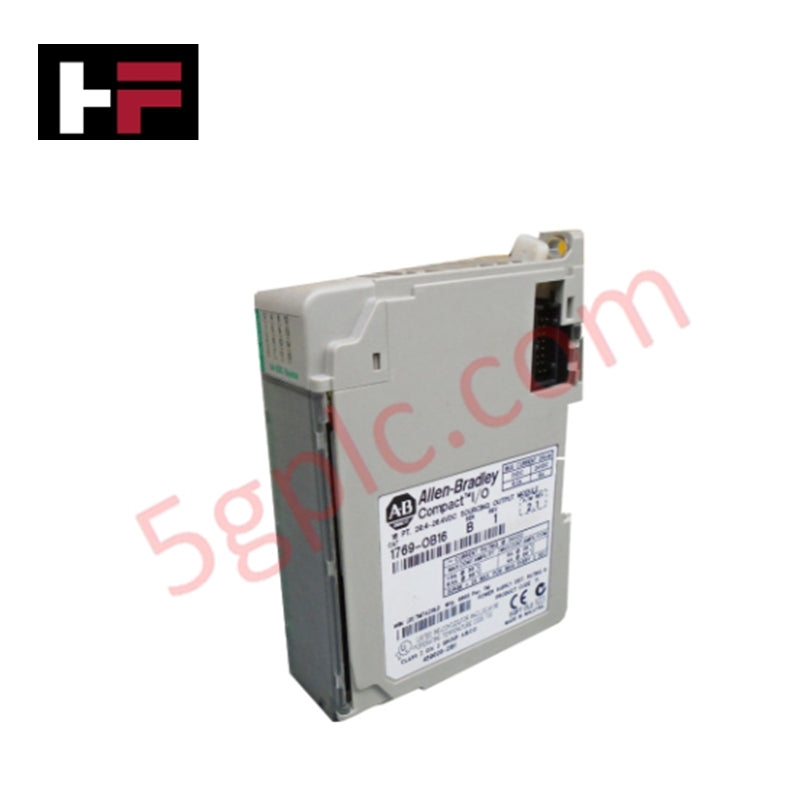

The Allen-Bradley 1769-OB16 is a high-performance discrete output module for Series PLC systems. Engineered for precise control of digital outputs, it delivers reliable operation in compact control cabinets and DIN rail installations. This module supports 16 output points per group and is optimized for 24V DC source applications.
Specifications
Output & Electrical
-
Model: 1769-OB16
-
Output Points: 16 per group
-
Voltage Category: 24V DC source
-
Operating Voltage Range: 20.4–26.4 V DC
-
Current Draw: 200 mA @ 5.1V
-
Maximum Heat Dissipation: 2.11 W
-
Surge Current Capacity: 2.0 A for 10 ms, repeatable every 2 s
-
Isolation Voltage: 1200 V AC for 1 s or 1697 V DC for 1 s between outputs and bus (IEC Class 2 reinforced insulation)
Mechanical & Installation
-
Slot Width: 1
-
Wire Type: Copper 90°C (194°F)
-
Enclosure: Open-style, not enclosed
-
Mounting Options: DIN rail or panel
-
Replacement Terminal Block: 1769-RTBN18 (1 per kit)
Power Supply Compatibility
-
Compatible with 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
-
Power supply distance rating: 8 modules maximum
Dimensions & Weight
-
Length x Width x Height: 9.7 cm x 3.5 cm x 11.8 cm
-
Weight: 2 kg
Features
-
Supports 16 discrete output points per group
-
Wide operating voltage range: 20.4–26.4 V DC
-
Compact 1-slot design suitable for dense control panels
-
Robust isolation for output-to-bus separation
-
Flexible mounting on DIN rail or panel
-
Compatible with multiple Allen-Bradley power supplies
Applications
The 1769-OB16 module is ideal for controlling solenoids, indicators, actuators, and other DC devices within Series PLC setups. Its compact size and high output reliability make it suitable for small to medium automation systems.
FAQ
Q: How many output points does the 1769-OB16 support?
A: The module provides 16 output points per group.
Q: What is the operating voltage range?
A: The module operates from 20.4 V to 26.4 V DC.
Q: Can it be mounted on a panel or DIN rail?
A: Yes, it supports both DIN rail and panel mounting.
Q: Which power supplies are compatible?
A: Compatible with 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4.
