Product Details
Product Overview

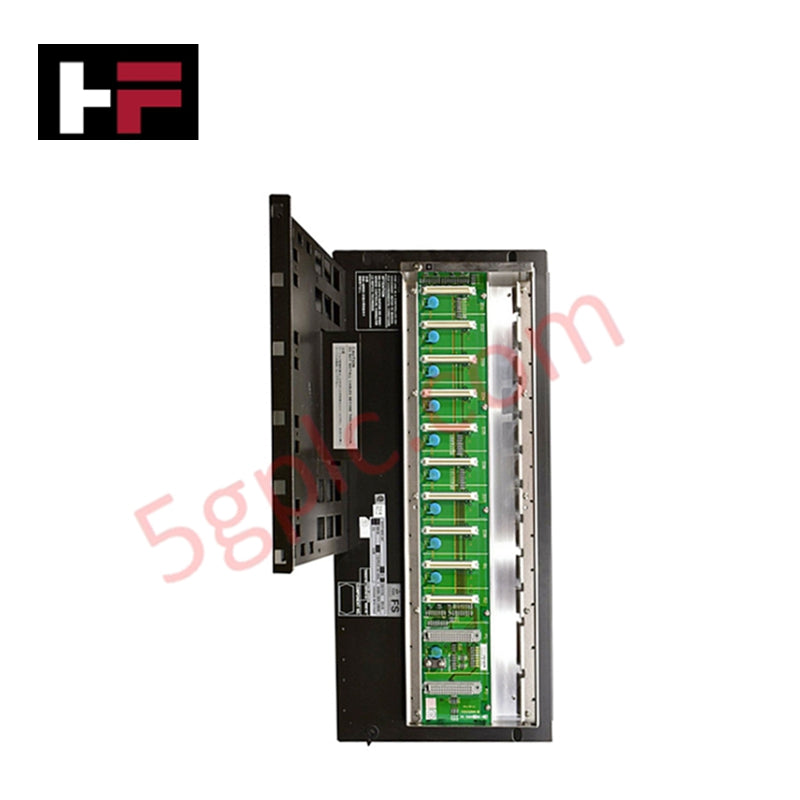

The Yokogawa SSC60D-F2542 functions as the primary structural and electrical foundation for Field Control Stations (FCS) within CENTUM VP and ProSafe-RS architectures. This backplane unit facilitates high-speed data exchange and power distribution across multiple I/O and control modules. We supply this component as 100% Brand New and Original, ensuring absolute signal integrity and system uptime for mission-critical process automation in power, refining, and petrochemical facilities.
Technical Specifications
The SSC60D-F2542 utilizes precision-engineered circuitry to maintain stable communication across high-density module arrays.
| Feature | Specification Details |
| Compatible Systems | Yokogawa CENTUM VP / ProSafe-RS |
| Slot Configuration | 12 Module Slots (Control and I/O) |
| Supply Voltage | 24 VDC Nominal |
| Communication Bus | Vnet/IP or ESB Bus Connection |
| Mounting Type | 19-inch Rack or Cabinet Mount |
| Dimensions | 480 mm (W) × 200 mm (H) × 100 mm (D) |
| Operating Temperature | 0°C to +55°C |
| Cooling | Natural Convection |
| Condition | 100% Brand New Original |
Engineering Advantages
-
High-Density Logic Integration: The 12-slot architecture maximizes cabinet footprint efficiency. It allows engineers to consolidate control and I/O modules into a single 480mm width unit, reducing the overall number of required enclosures and simplifying internal cable management.
-
Native Redundancy Support: This backplane accommodates both redundant and non-redundant module pairs. It provides the necessary physical traces to sync dual-redundant controllers, ensuring the system maintains continuous operation even during a primary hardware failure.
-
Superior Signal Protection: The industrial-grade PCB material and alloy frame resist electromagnetic interference (EMI). This shielding ensures that high-speed data packets on the Vnet/IP or ESB bus remain free from corruption, even when installed near high-voltage switchgear.
-
Simplified Hot-Swap Maintenance: The precision-aligned slot connectors facilitate the rapid replacement of modules. Integrated diagnostics and LED status monitoring allow technicians to identify and swap faulty I/O units without disrupting the power or communication of neighboring modules on the same backplane.
FAQs
Does the SSC60D-F2542 support both CENTUM VP and ProSafe-RS modules simultaneously?
The backplane provides the physical interface compatible with both systems. However, system-specific bus protocols (Vnet/IP vs. ESB) and software licensing dictate the actual module mix. Always verify your specific station configuration within the Yokogawa engineering environment.
What are the grounding requirements for this backplane?
The SSC60D-F2542 requires a dedicated functional ground connection to the cabinet's busbar. Proper grounding prevents noise accumulation and protects the sensitive CMOS logic of the mounted I/O modules from electrostatic discharge (ESD).
Can I install this unit in a vertical orientation?
Yokogawa designs this unit for horizontal rack mounting to utilize natural convection cooling. Vertical installation may impede airflow across the mounted modules, potentially leading to thermal throttling or premature component aging in high-ambient environments.
Is this a refurbished or used "surplus" backplane?
Absolutely not. We provide only 100% Brand New original hardware. Each SSC60D-F2542 ships in its original factory packaging with intact anti-static protection and a verifiable serial number to guarantee authenticity and a full 10-year+ operational lifespan.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
