Product Details
Product Overview

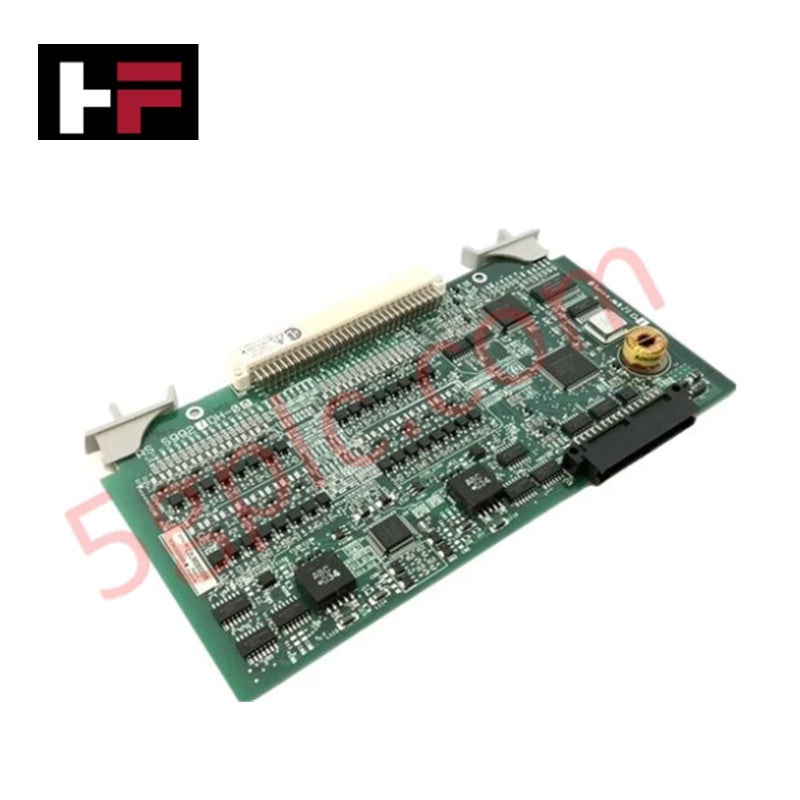

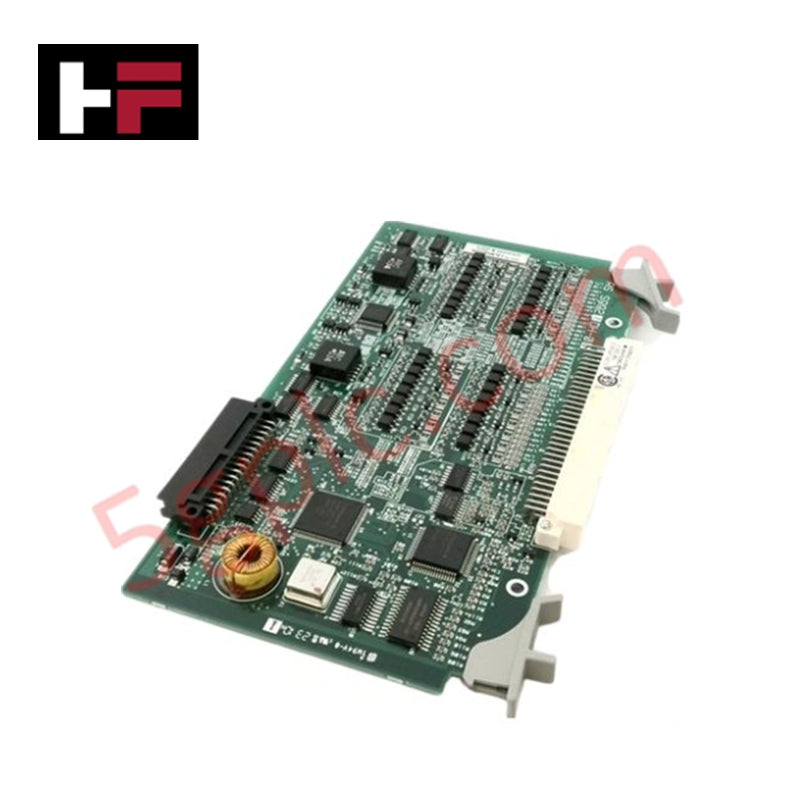

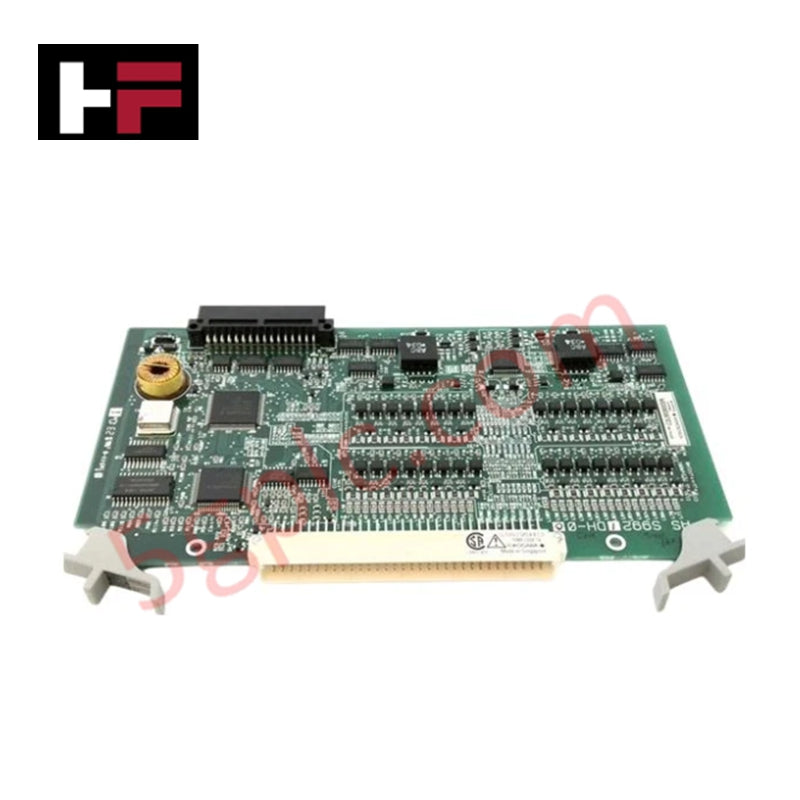

The Yokogawa ADM12 functions as a high-density contact output interface within Yokogawa’s Distributed Control System (DCS) architectures. This 16-point I/O card executes discrete control commands, driving external relays, indicators, and solenoid valves. By utilizing a connector-type interface, the ADM12 streamlines the connection between the system backplane and the field terminal assembly, providing critical switching logic for industrial process automation.
Technical Specifications
The ADM12 utilizes a compact board-level design for seamless integration into existing I/O nests:
| Feature | Specification |
| Manufacturer | Yokogawa |
| Model | ADM12 |
| Type | Contact Output I/O Card |
| Points | 16-Point Discrete Output |
| Interface | Connector Type |
| Category | PC Board PLC / Add-On Board |
| Weight | 0.31 lbs (approx. 0.14 kg) |
| Condition | 100% Brand New and Original |
Engineering Advantages
-
Optimized Connector Interface: The ADM12 features a robust 16-point connector design. This replaces traditional individual terminal wiring, allowing engineers to connect pre-fabricated cables directly to the card. This plug-and-play approach eliminates wiring errors and reduces installation time by over 50%.
-
Legacy System Support: Although the manufacturer has officially discontinued the ADM12, our 100% Brand New stock provides a critical lifeline for plants running legacy CENTUM hardware. It allows for immediate hardware replacement without the massive capital expenditure of a full system migration.
-
Low-Profile Form Factor: Weighing only 0.31 lbs, this add-on board maintains a minimal footprint within the I/O rack. The lightweight design reduces mechanical stress on the backplane connectors, ensuring long-term electrical contact integrity even in environments with persistent industrial vibration.
-
High-Integrity Switching: Internal circuit isolation protects the main processor from field-side transients. The card manages inductive loads effectively, ensuring that back-EMF from external relay coils does not interfere with the stability of the control network.
FAQs
-
Is the Yokogawa ADM12 supplied as a new or used part?
We supply the ADM12 exclusively as 100% Brand New and Original equipment. Despite its discontinued status, we offer factory-sealed units that have never been installed, ensuring you receive the full reliability of a new component.
-
Can I use the ADM12 for high-speed pulse outputs?
The ADM12 is designed primarily for standard contact output (on/off) switching logic. For high-frequency pulse-width modulation (PWM) or specialized high-speed tasks, we recommend verifying the pulse period requirements against your specific DCS controller settings.
-
What are the installation requirements for the connector type?
Ensure that you use the compatible Yokogawa multi-pin connector cable for this card. Align the connector pins carefully with the card header before applying pressure; securing the mounting screws on the nest frame will prevent the card from shifting due to thermal expansion.
-
How does the ADM12 handle field-side electrical noise?
The ADM12 integrates hardware-level isolation to decouple the internal logic from the field power circuit. This prevents ground loops and electromagnetic interference (EMI) from disrupting the digital status signals on the system bus.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
