Product Details

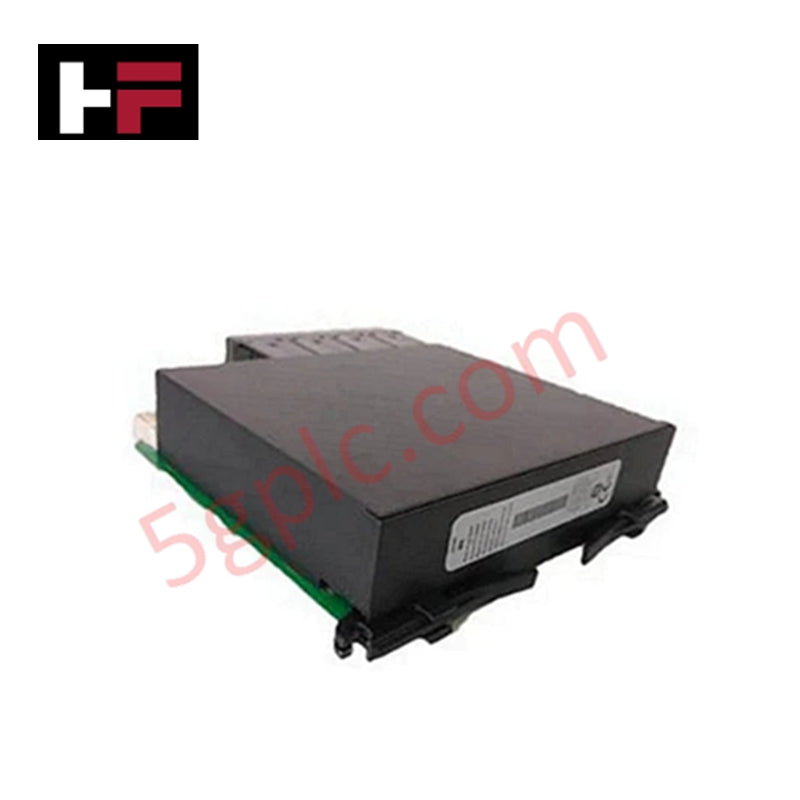

The GE UR6TV, also cataloged as the UR6TV Digital I/O Module, operates as a dedicated hardware component for status monitoring and control output execution within GE Multilin Universal Relay (UR) platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | UR6TV |
| Brand | GE (GE Fanuc / GE Multilin) |
| Origin | USA |
| Operating Temp | -40 to +70 deg C (-40 to +158 deg F) |
| Power Consumption | Powered via UR main chassis backplane |
| Storage Temp | -40 to 85 deg C (-40 to 185 deg F) |
| Operating Humidity | 15% to 95% non-condensing |
| Digital Inputs | 16 discrete input channels |
| Digital Outputs | 20 discrete output channels |
| Communication | Direct inter-module bus integration within UR relays |
Deterministic Network Real-Time Execution
The UR6TV expands the discrete point capacity of the host Multilin UR unit by processing 16 contact inputs and driving 20 relay outputs. Signal state transitions on input channels are formatted into internal data frames and distributed across high-speed backplane bus communication velocity pathways to the primary CPU.
Integration with Profinet / EtherNet/IP deterministic networks enables direct reporting of field contact states to remote control panels. Channel assignments support scalable I/O density scaling across sub-rack slots while maintaining strict firmware flash compatibility across standard GE Multilin UR software revisions.
Frequently Asked Questions
Q: What input and output contact channel densities are supported by the UR6TV module?
A: The card contains 16 discrete digital input monitoring channels alongside 20 digital output control channels.
Q: Can the UR6TV card be extracted or inserted into the Multilin UR chassis while powered?
A: No. Power to the host UR relay chassis must be completely turned off and isolated before removing or installing the module to avoid edge-connector arcing.
Q: What environmental temperature limits apply to storage and continuous operation?
A: The module is rated for continuous operation between -40 to +70 deg C (-40 to +158 deg F) and non-operating storage between -40 to 85 deg C (-40 to 185 deg F).
Field Installation Guidelines
- Power Isolation: Disconnect primary AC/DC auxiliary power and isolate all CT/PT voltage feeds to the Multilin UR relay frame before servicing.
- Electrostatic Grounding: Strap an ESD wrist band securely to a grounded metallic frame point prior to pulling the module from its card slot.
- Mechanical Alignment: Slide the card carefully into its assigned UR rear slot, keeping the printed circuit board aligned with the plastic internal guide rails.
- Fastener Seating: Push the card home until the backplane connectors join completely, then hand-tighten the top and bottom panel retaining screws.
- Field Terminal Wiring: Terminate discrete inputs and control output lines to the corresponding terminal blocks. Keep control wiring physically isolated from primary high-voltage bus bars.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
