Product Details
Overview:

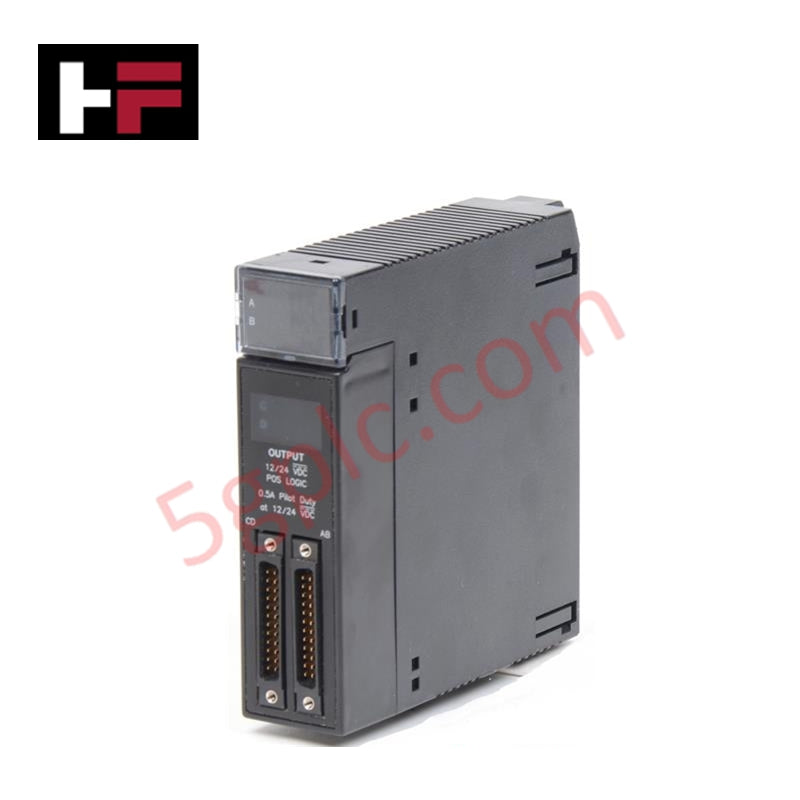

The IC693MDL753 from GE Fanuc is a 32-point positive logic output module for Series 90-30 PLC systems. Designed for reliable DC output, it offers fast response, high isolation, and robust handling of inrush currents for industrial applications.
Technical Specifications:
-
Manufacturer: GE Fanuc
-
Model Number: IC693MDL753
-
Product Type: 24 VDC Positive Logic Output Module
-
Outputs per Module: 32
-
Rated Voltage: 12–24 VDC, positive logic
-
Output Voltage Range: 10.2–28.8 VDC
-
Isolation: 1,500 V between field side and logic side
-
Input Current: 0.5 A per point, 4 A maximum
-
Output Characteristics: 5.4 A for 10 ms pulse
-
Inrush Current: 0.3 VDC
-
On-State Voltage Drop: 0.3 VDC
-
On Response Time: 2 ms maximum
-
Off Response Time: 2 ms maximum
-
Weight: 0.5 kg
Features:
-
Individually isolated outputs for reliable operation
-
High-speed switching suitable for fast industrial processes
-
Compact single-slot design for efficient backplane use
-
LED indicators available for output status monitoring
Applications:
-
Actuating DC devices such as solenoids, relays, or indicators
-
Process control systems requiring fast, reliable switching
-
Factory automation systems with high-density output requirements
FAQ:
-
Q: What is the maximum current per output?
A: 0.5 A per point, with 4 A maximum for the module. -
Q: What is the isolation voltage?
A: 1,500 V between the field side and logic side. -
Q: Is this module compatible with Series 90-30 PLCs?
A: Yes, it is fully compatible with all Series 90-30 backplanes.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
