Overview

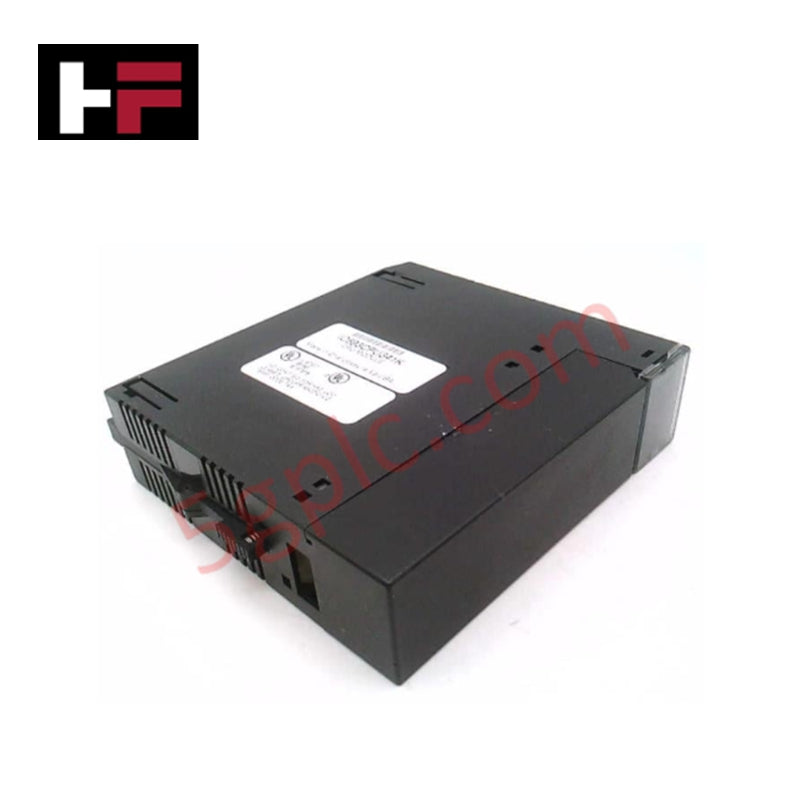

The IC693CPU341 by GE Fanuc is a single-slot modular CPU for Series 90-30 PLC systems, offering 80 KB of user memory, a 20 MHz 80188 processor, and support for up to 512 discrete input points, 512 discrete outputs, 1024 analog input words, and 256 analog output words for efficient control of complex automation applications.
Technical Specifications
-
Manufacturer: GE Fanuc Emerson
-
Model / Part Number: IC693CPU341
-
Product Type: CPU Module
-
Series: Series 90-30
-
Processor Type: 80188 (90C188XL microprocessor)
-
Clock Speed: 20 MHz
-
User Memory: 80 KB
-
Typical Boolean Execution: 0.3 ms per 1K logic
-
Register Memory: 9999 words
-
Discrete Inputs (%I): 512 points
-
Discrete Outputs (%Q): 512 points
-
Timers / Counters: Over 2000
-
Analog Inputs (%AI): 1024 words
-
Analog Outputs (%AQ): 256 words
-
Serial Ports: 1 built-in serial port via PLC power supply supporting SNP and SNP-X slave protocols
-
Shift Registers: Supported
-
Communication Ports: SNP communication hosted by power supply module
-
Supported Baseplates: Up to 5 baseplates
-
Extension Baseplates: 4 expansion, 4 remote I/O baseplates
-
Voltage Input: 5 VDC
-
Current Draw: 490 mA
-
Bus Voltage: +5 VDC
-
Expandable: Yes
-
Installation: Fits standard Series 90-30 CPU slots
-
Operating Environment: Industrial-grade, suitable for high-reliability applications
Applications
-
Central processing for Series 90-30 modular PLCs
-
High-speed Boolean and analog signal processing for industrial automation
-
Supports extensive expansion with multiple baseplates and I/O modules
FAQ
Q: How much memory does the IC693CPU341 provide for user programs?
A: It provides 80 KB of user memory.
Q: How many analog input and output words are supported?
A: It supports 1024 analog input words and 256 analog output words.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
