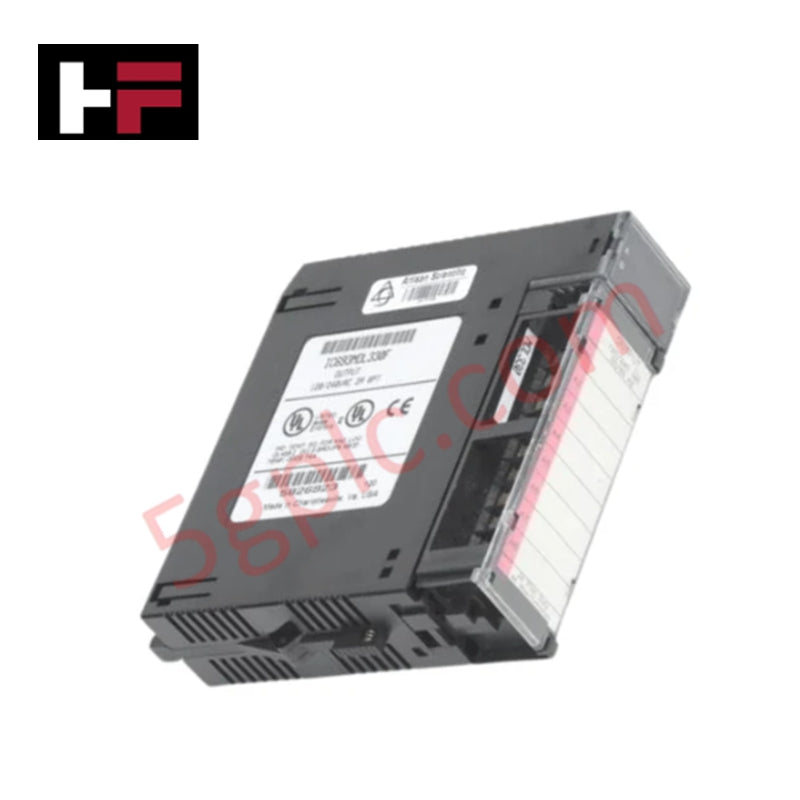

IC693MDL330 GE Series 90-30 AC Voltage Output PLC Module

Overview

The IC693MDL330 from GE Fanuc is a robust AC voltage output module for the Series 90-30 PLC platform. Designed for precise control of 120/240 VAC loads, it ensures reliable operation under industrial conditions. The module features individually isolated output channels, high inrush tolerance, and fast response times for dynamic automation processes.

Technical Specifications

• Model Number: IC693MDL330

• Manufacturer: GE Fanuc Emerson

• Product Type: AC Voltage Output Module

• Series: 90-30

• Rated Output Voltage: 120/240 VAC

• Voltage Range: 85–264 VAC, 50/60 Hz

• Output Isolation: 1500V between field and logic sides, 500V between groups

• Output Current: 2A max per point; 4A max per group at 40°C (104°F)

• Inrush Current: 20A maximum for one cycle

• Minimum Load: 100 mA

• Max Output Voltage Drop: 1.5 V

• Output Leakage Current: 3 mA max at 120 VAC, 5 mA max at 240 VAC

• On Response Time: 1 ms max

• Off Response Time: ½ cycle max

• Power Consumption: 160 mA (all outputs on) from 5V bus on backplane

Features

• Eight individually isolated AC output channels

• High inrush current tolerance for inductive or capacitive loads

• Fast switching with millisecond-level response times

• Compact design for Series 90-30 single-slot integration

• LED indicators available for status monitoring

Applications

• AC load control in PLC-based automation systems

• Process control requiring precise voltage switching

• Distributed control systems with multiple output points

• Integration with Series 90-30 PAC and RX3i PLC systems

FAQ

• Q: What is the maximum output current per channel?
  A: 2 Amperes per channel, 4 Amperes per group at 104°F.

• Q: What is the module’s isolation rating?
  A: 1500V between field side and logic side; 500V between output groups.

• Q: How fast does the module respond?
  A: 1 ms on response time, ½ cycle off response time.

• Q: Can it handle inductive loads?
  A: Yes, with 20A inrush current tolerance for one cycle.
