Product Details
Product Description

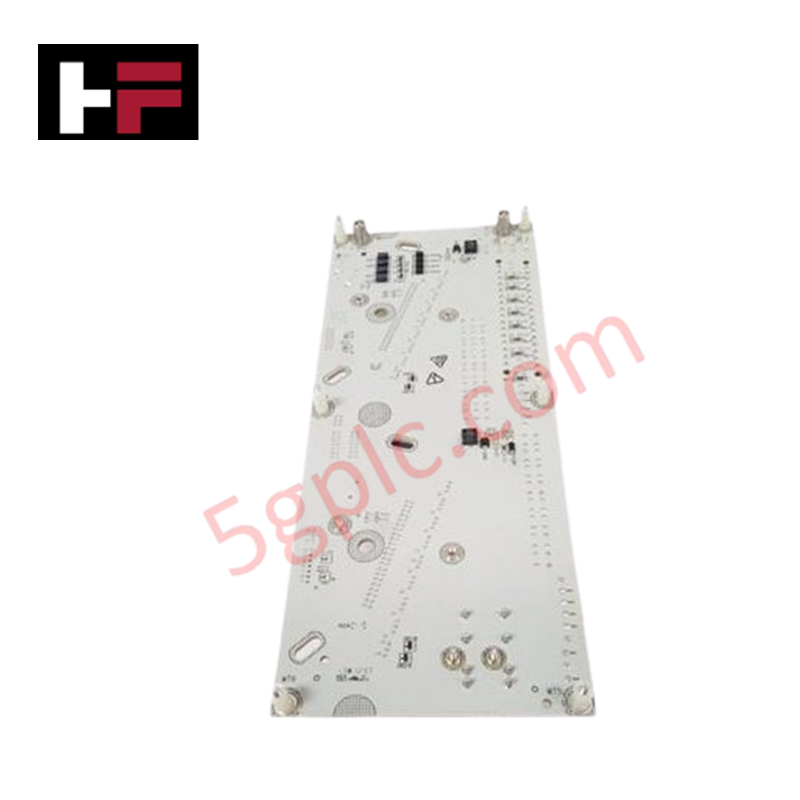

The CC-TPIX11 from Honeywell is a high-precision pulse input module for integration with the Experion C300 controller. It accurately monitors pulse-generating devices, calculates rates and cumulative totals, and supports fast cutoff for dosing operations.
Technical Specifications
-
Model: CC-TPIX11
-
I/O Model: Redundant, 12-inch module
-
Number of Inputs: 8 single channels or 4 dual channels; supports mixed configurations
-
Number of Outputs: 2
-
Input Type: High-impedance, differential voltage, optically isolated (1000 VDC)
-
Frequency Range: Single channel 0–100 kHz, dual channel 0–10 kHz
-
Frequency Accuracy: ±0.001% of reading (0.5 Hz–100 kHz)
-
Input Voltage Range: 0–35 VDC
-
Input Trip Points:
-
High Setting: Low → High 8.4 V, High → Low 7.7 V
-
Low Setting: Low → High 2.8 V, High → Low 2.0 V
-
Input Edge Selection: Configurable (Rising Edge default or Falling Edge)
-
Channel Input Impedance: > 70 kΩ
-
Input Functions: Frequency (PV), Accumulated Value (AV), Pulse Width High/Low, Period
-
Configuration Options: Isolated or bussed per channel
-
Excitation Power: Supports internal 24 V operation or external 5–30 VDC
Key Features
-
Fast Cutoff Function: Stops dosing operations when threshold is reached
-
Extensive Diagnostics: Comprehensive self-monitoring for reliability
-
Optional Redundancy: Improves system availability
-
High Measurement Accuracy: Precise frequency, period, and pulse width
-
MeterSuite Support: Compatible with MeterSuite custody transfer applications
-
ISO 6551 Fidelity: Supports dual pulse inputs for Level A pulse integrity
Applications
-
Custody transfer metering
-
Process monitoring and control
-
Industrial dosing systems
FAQ / Comparison
Q: Can CC-TPIX11 support mixed single and dual input channels?
A: Yes, it supports up to 8 single or 4 dual channels, including mixed configurations.
Q: How does it differ from CC-TPIX01?
A: CC-TPIX11 offers faster cutoff, optional redundancy, and MeterSuite compatibility.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
