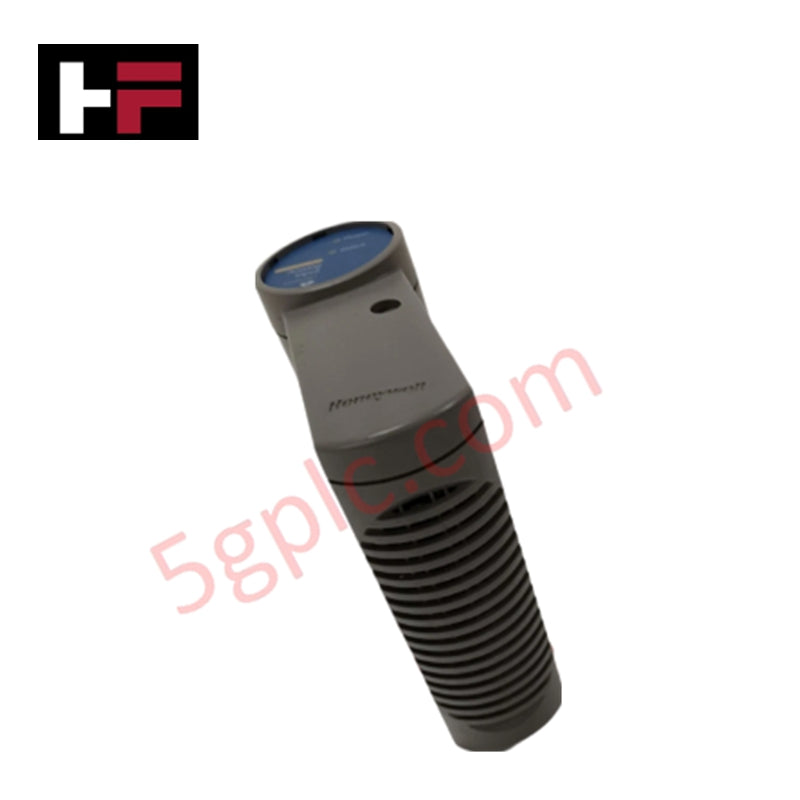

Honeywell Analog Input Module CC-PAIX01 51405038-275

Overview

The Honeywell CC-PAIX01 is a high-performance analog input module designed to acquire and transmit precise process signals within Experion Series-C and C300 control systems. It supports multiple channels and HART protocol communication, providing accurate data acquisition and system integration for industrial applications.

Technical Specifications

• Model: CC-PAIX01

• Part Number: 51405038-275

• Brand: Honeywell

• Product Type: High-Level Analog Input Module

• Number of Channels: 11 individually configurable inputs

• Input Range: 0–20 mA, 4–20 mA

• Resolution: 16-bit

• Accuracy: ±0.1% of span

• Communication Protocol: HART

• Power Supply: 24 VDC ±10%

• Operating Temperature: -20°C to 60°C

• Mounting: DIN rail or panel mount

• Country of Origin: USA

• Warranty: 12 months

Features

• Multi-Channel Input: 11 channels for versatile signal acquisition

• High Precision: 16-bit resolution ensures accurate analog measurements

• Protocol Support: HART-enabled for digital communication and device management

• Compact Design: Small form factor suitable for control cabinet integration

• Reliable Operation: Engineered for consistent performance in industrial environments

Applications

Ideal for monitoring and processing analog signals from sensors, transmitters, and other field devices in manufacturing, process control, and energy management systems.

FAQ

Q: Which input ranges are supported by the module?
A: CC-PAIX01 supports 0–20 mA and 4–20 mA analog input signals.

Q: Is HART protocol supported?
A: Yes, it supports HART for digital communication and advanced device diagnostics.
