GE IC693MDL930 Series 90-30 8-Channel Relay Output Module

Overview

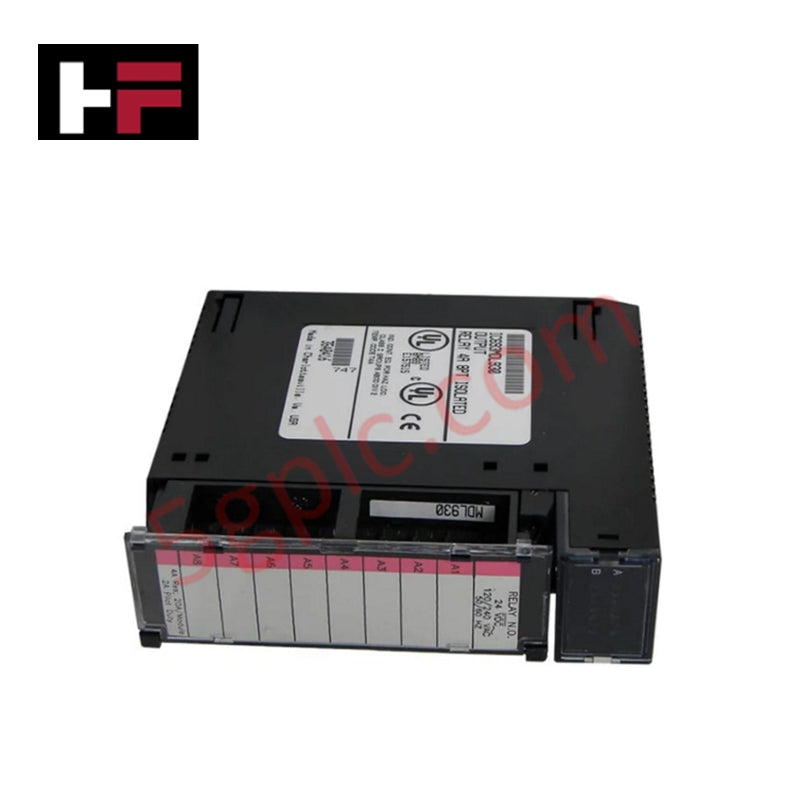

The IC693MDL930 is an 8-channel relay output module from the GE Fanuc Series 90-30 PLC family.
It provides individually isolated outputs with high voltage isolation for safe and reliable operation in industrial environments. Designed for AC and DC switching, this module supports moderate resistive and pilot duty loads with precise timing and LED status indication for each channel. Its compact single-slot design ensures seamless integration into Series 90-30 PLC systems.

Technical Specifications

• Model Number: IC693MDL930

• Manufacturer: GE Fanuc Emerson

• Product Type: Digital I/O Relay Output Module

• Product Line: Series 90-30

• Weight: 1.00 lbs (0.45 kg)

• Number of Channels: 8 relay outputs, individually isolated

• Isolation: 1500 V between field and logic sides; 500 V between groups

• Output Voltage Range: 5–30 VDC or 5–250 VAC, 50/60 Hz

• Nominal Output Voltage: 24 VDC; 120/240 VAC

• Maximum Load per Output: 4 A resistive, 2 A pilot duty

• Maximum Load per Module: 20 A (UL installations)

• Contact Type: Form A (Normally Open, N.O.)

• Minimum Load: 10 mA

• Maximum Inrush Current: 5 A

• Operating Response Time: 15 ms (on/off)

• Switching Frequency: 20 cycles per minute

• LED Indicators: Yes, one per channel

• Operating Temperature: 0°C to 50°C

• Backplane Current Draw: 6 mA from 5V bus; 70 mA from relay 24V bus

• Module Width: Single-slot

• Product Lifecycle: Discontinued / Obsolete

Features

• Individually isolated relay outputs enhance safety and prevent cross-talk

• Supports AC and DC resistive or pilot duty loads

• LED indicators provide real-time status per channel

• Hot-swappable in compatible configurations

• Compatible with GE Series 90-30 PLC racks and programming software

• Robust design suitable for industrial control applications

Applications

• Machine automation and control panels

• Motor and lighting control

• Distributed process control systems

• Industrial pilot duty switching

FAQ

• Q: What is the maximum load per channel for IC693MDL930?
  A: 4 A resistive, 2 A pilot duty per channel.

• Q: Can it switch both AC and DC?
  A: Yes, it supports 5–30 VDC and 5–250 VAC operation.

• Q: Is this module still available?
  A: No, it is discontinued but available for replacement in legacy systems.

• Q: What is the response time?
  A: Maximum on/off response is 15 ms.
