Product Details
Overview

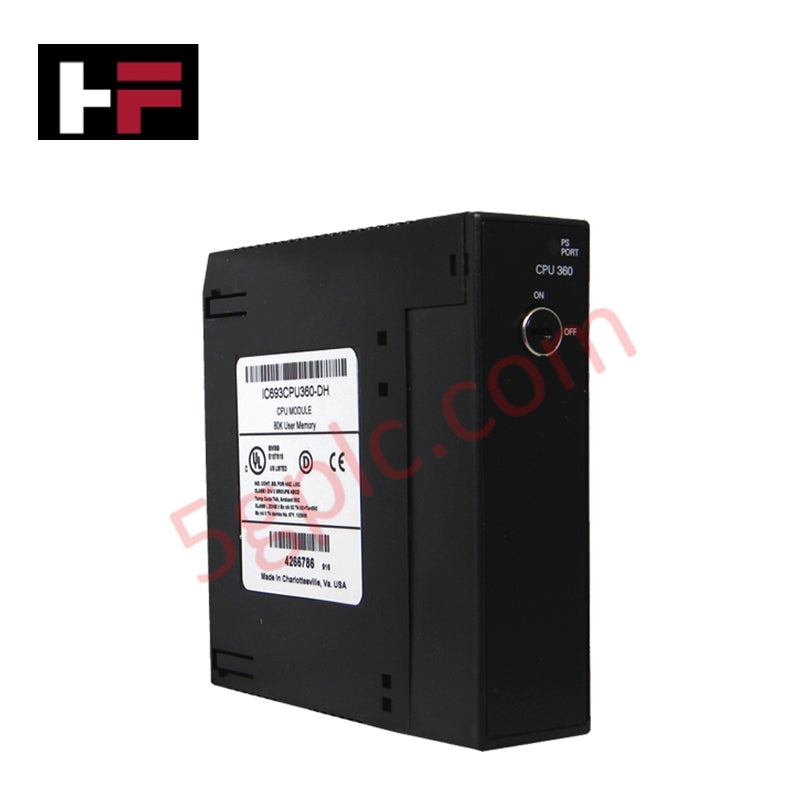

The IC693CPU360 by GE Fanuc is a high-performance single-slot CPU module for Series 90-30 PLC systems, featuring a 25 MHz 80386EX microprocessor, 240 KB user memory, and support for over 2000 timers and counters, designed for reliable operation in industrial environments.
Technical Specifications
-
Manufacturer: GE Fanuc Emerson
-
Model / Part Number: IC693CPU360
-
Product Type: Single-Slot CPU Module
-
Series: Series 90-30
-
Weight: 1.00 lbs (0.45 kg)
-
Operating Temperature: 0–60°C (32–140°F)
-
Storage Temperature: -40–85°C (-40–185°F)
-
Microprocessor: 80386EX
-
Processor Type: 80386EX
-
Clock Speed: 25 MHz
-
User Memory: 240 KB
-
Memory Type: RAM and Flash
-
Power Requirements: 670 mA from +5 VDC backplane
-
Voltage Input: 5 VDC
-
Current Draw: 670 mA
-
Typical Scan Rate: 0.22 ms per 1K boolean logic
-
Timers / Counters: > 2000
-
Serial Port: RS-485 (via power supply module)
-
Expandable: Yes, compatible with additional expansion modules
Applications
-
Central processing for Series 90-30 PLC automation systems
-
Complex logic control in industrial manufacturing and processing
-
High-speed scanning and memory-intensive PLC tasks
FAQ
Q: Can the IC693CPU360 be expanded with additional baseplates?
A: Yes, it supports expansion with compatible Series 90-30 I/O and remote baseplates.
Q: What type of processor does it use?
A: The module uses an 80386EX microprocessor running at 25 MHz.
