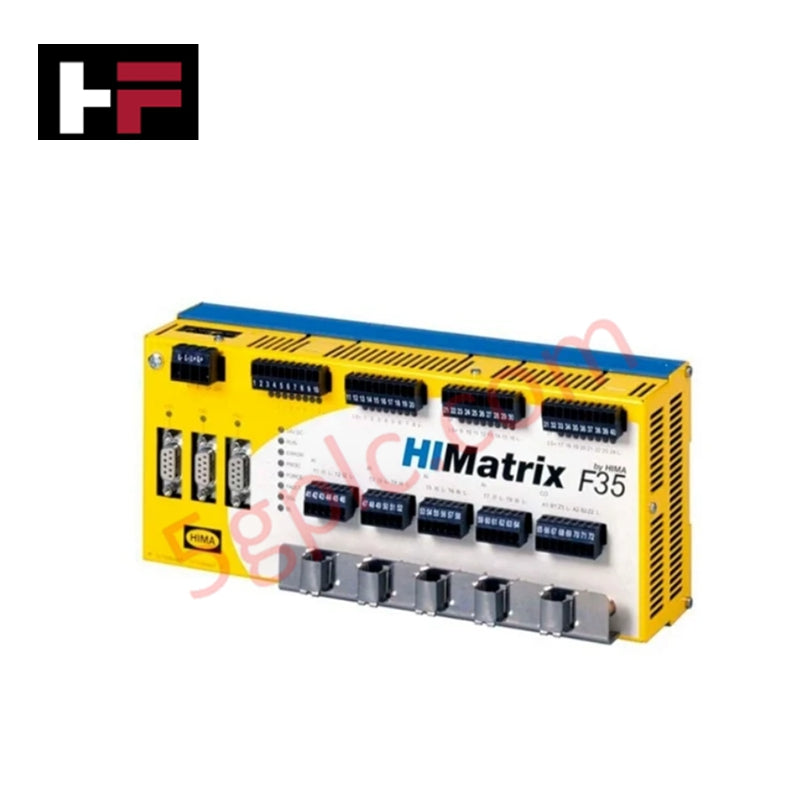

F35 03030/F3503030 | HIMA | Safety-Related Controller Module

Overview

The HIMA F35 03030 is a Safety-Related Controller Module engineered for reliable operation in safety-critical control systems. Designed for use within HIMA’s HIMatrix platform, it ensures safe and accurate digital input signal processing under demanding industrial conditions. This module complies with IEC 61508 and is SIL 3 certified, providing robust performance for safety instrumented systems (SIS) across various industrial sectors.

Technical Specifications

• Model Number: F35 03030

• Manufacturer: HIMA

• Product Type: Safety-Related Controller Module

• Nominal Operating Voltage: 24 V DC

• Number of Input Channels: 32 digital input channels

• Input Type: Type 1 and Type 3 (IEC 61131-2 compliant)

• Electrical Isolation: Galvanic isolation between each input channel and the backplane

• Diagnostic Functions: Continuous open-circuit and short-circuit detection

• Operating Temperature Range: −20 °C to +70 °C

• Protection Level: IP20

• Compliance: IEC 61508, SIL 3

• Module Dimensions: Standard HIMatrix size and form factor

• Power Protection: Reverse polarity and surge protection

• Typical Power Consumption: Approximately 3.5 W

• Mounting Method: DIN-rail mounting within HIMatrix system

Key Features

• Provides 32 isolated digital inputs for safety-related tasks

• Designed for high-integrity control applications

• Integrated diagnostic system for fault detection and system reliability

• Compact structure for space-efficient HIMatrix integration

• Wide operating temperature range for industrial-grade durability

• Fully compliant with functional safety requirements (SIL 3)

Application Scenarios

The HIMA F35 03030 is widely used in:

• Emergency shutdown (ESD) and safety interlock systems

• Burner management and process safety control in power and chemical plants

• Oil and gas processing and refining systems

• Machinery protection and critical automation environments

• Safety instrumented systems (SIS) requiring SIL 3 performance

FAQ

Q: Can the F3503030/F35 03030 operate in redundant configurations?
A: Yes. It supports redundant operation within HIMatrix systems, maintaining SIL 3 safety integrity and improving overall system availability.

Q: Does the module include built-in diagnostics?
A: Yes. It features automatic open-circuit and short-circuit detection, transmitting diagnostic feedback directly to the controller.

Q: Is additional isolation required for field devices?
A: No. Each input channel provides galvanic isolation to protect system components and ensure safe signal integrity.
