Product Details
Technical Logic and System Integration

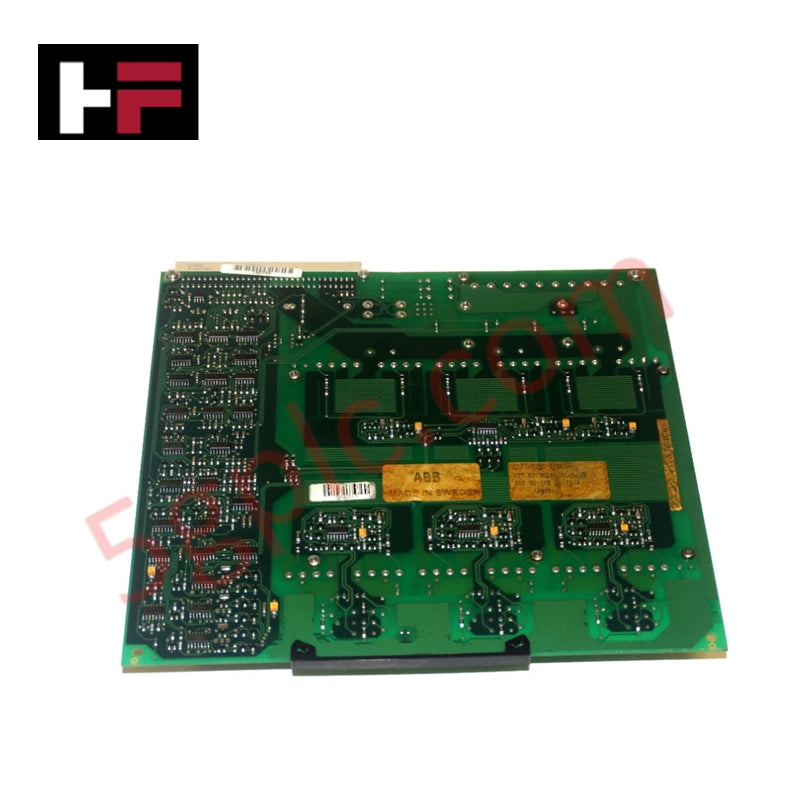

The DSQC 266G (3HAB8801-1/2B) is a specialized drive control module designed for the ABB S4C robot controller generation. This board functions as a critical interface within the drive system, responsible for modulating the power signals and monitoring feedback loops for individual robotic axes. By processing high-speed positional data, the DSQC 266G ensures that the robot maintains high torque consistency and precise path accuracy. Its compact design allows for high-density integration within the controller’s drive rack, facilitating efficient multi-axis coordination in demanding industrial environments.
Technical Specifications
The following parameters outline the hardware profile for the DSQC 266G (3HAB8801-1/2B) unit:
-
Component Function: Drive Control / Axis Regulator Module
-
Controller Compatibility: ABB S4C and S4C+ (M97/M98/M2000 Eras)
-
Physical Dimensions: 12.6 cm (Depth) x 12.4 cm (Width) x 2.2 cm (Height)
-
Net Weight: 0.1 kg
-
Manufacturing Origin: Switzerland
-
Communication Protocol: Internal high-speed drive bus
-
Mounting Configuration: Plug-in card architecture for controller chassis
Field Maintenance and Engineering FAQ
What are the primary indicators of a hardware fault on the DSQC 266G?
Technicians should look for "Drive System Communication Error" or "Joint Supervision" faults on the FlexPendant. If an axis fails to release its brake or exhibits erratic motion, the DSQC 266G (3HAB8801-1/2B) may have experienced component degradation in its signal processing stage.
Is this board interchangeable with other DSQC 266 variants?
The "G" designation and the specific revision 3HAB8801-1/2B denote hardware compatibility. While other 266-series boards exist, they may have different current ratings or firmware requirements. Always match the full part number to ensure system synchronization.
Does this unit require manual software configuration?
No, the drive parameters are typically stored in the main computer and pushed to the DSQC 266G (3HAB8801-1/2B) during the boot sequence. However, ensuring the correct jumper settings on the board—if applicable to your specific cabinet configuration—is essential for axis identification.
Drive Component Version Comparison
| Feature | DSQC 266G (3HAB8801-1/2B) | DSQC 266B (3HAB2216-1) |
| System Era | S4C (Intermediate/Late) | S4 (Legacy / Early) |
| Form Factor | Compact Logic Card | Standard S4 Large Card |
| Feedback Logic | Digital Resolver Interface | Analog/Digital Hybrid |
| Response Time | Optimized for M98/M2000 | Standard S4 Cycle |
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
