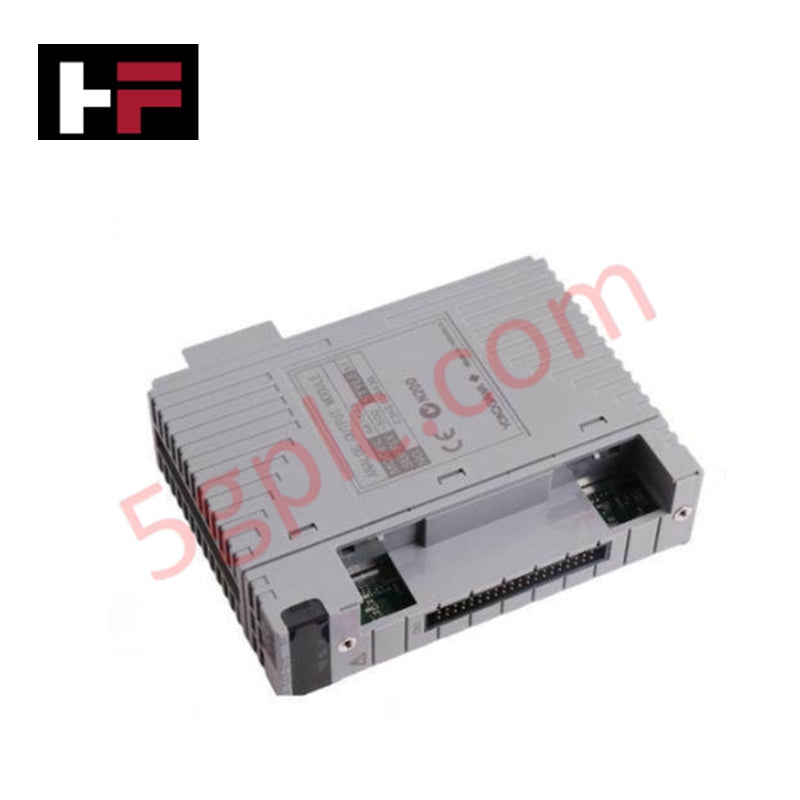

CENTUM VP | Yokogawa AAI543-S53/K4A00 Isolated Analog Output Module

Product Overview

The Yokogawa AAI543-S53/K4A00 drives 16 channels of isolated 4 to 20 mA signals to control valves, actuators, and other field final control elements. Operating within the CENTUM VP and CS 3000 environments, this module provides high-accuracy analog output with a rapid 10 ms data update period. It maintains critical process stability through redundant switch-over capabilities and robust galvanometric isolation.

Part Number Breakdown: AAI543-S53/K4A00

Yokogawa's suffix codes define the specific environmental and interface performance of the module:

• AAI543: Base model for Isolated Analog Output (4 to 20 mA, 16-channel).

• -S: Standard type performance specification.

• 5: Standard switch-over response in redundant configurations; no explosion protection.

• 3: ISA Standard G3 conformal coating; supports extended temperatures from -20 to 70 °C.

• /K4A00: Includes the KS cable interface adapter for the AEA4D terminal board (Model: ATK4A-00).

Technical Specifications

We supply this module in 100% brand new, original factory condition to ensure peak operational performance.

Engineering Advantages

• Extreme Environment Resilience: The "-3" suffix confirms ISA G3 compliance. This conformal coating protects internal circuitry against corrosive gases and allows the module to operate reliably in harsh climates ranging from -20 to 70 °C.

• Superior High-Voltage Protection: A 1500 V AC withstand voltage rating ensures that field-side electrical surges or ground faults do not penetrate the system backplane, preventing catastrophic damage to the control station.

• Seamless Redundancy: In redundant configurations, the module executes a standard switch-over response. If the primary card fails, the secondary card takes control instantly without bumping the process signal, maintaining steady-state production.

• Intelligent Diagnostics: The module continuously monitors loop integrity. It detects open-circuit conditions below 0.65 mA, allowing maintenance teams to identify broken field wiring before a total loop failure occurs.

FAQs

• Does the /K4A00 option include the KS cable itself?

  The /K4A00 indicates the interface adapter required for the AEA4D terminal board. You must purchase the KS cables (such as KS1 or KS2) separately based on your required length and cabinet layout.

• Can the AAI543-S53 replace an older AAI543-S50?

  Yes. The "53" version offers superior environmental protection (G3 coating and wider temperature range) compared to the "50" version. It serves as a direct, high-spec functional replacement.

• How does the 10 ms update period impact control loop tuning?

  The rapid 10 ms update interval provides near-real-time response for high-speed actuators. This reduces lag in the control loop, allowing for tighter PID tuning and improved product quality.

• Is this module suitable for offshore or coastal applications?

  Due to the ISA G3 conformal coating and the broad operating temperature range, this module excels in salt-mist or high-humidity environments typical of offshore platforms and refineries.
