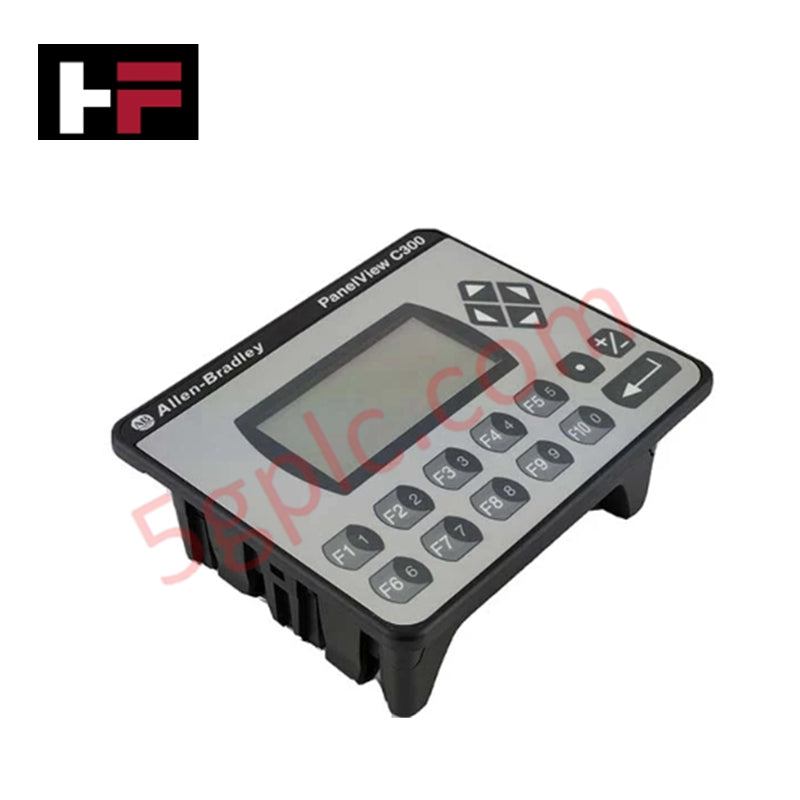

Allen Bradley PanelView C300 2711C-K3M HMI Display Module

Product Description

The 2711C-K3M from Allen-Bradley is a PanelView Component C300 HMI designed for compact operator interface applications. It delivers clear monochrome visual feedback and provides versatile input options for precise process control.

Technical Specifications

• Model: 2711C-K3M

• Product Type: PanelView Component C300 HMI

• Display Type: Monochrome transflective FSTN passive matrix

• Display Size: 3 inches

• Display Area (WxH): 67 x 33 mm (2.64 x 1.30 in)

• Resolution: 128 x 64 pixels

• Backlight: White LED, ≥50,000 hours, non-replaceable

• Operator Input: 10 function keys (F1–F10), numeric keypad (0–9), arrow keys, decimal, ±, Enter

• Real-Time Clock: No battery backup

• Battery Life: ≥5 years at 25°C (77°F)

• Input Voltage: 18–30V DC (24V nominal)

• Power Consumption: 5 W max (0.21 A at 24V DC)

• Operating Temperature: 0–50°C (32–122°F)

• Storage Temperature: –25–70°C (–13–158°F)

• Humidity: 0–95% non-condensing

• Cutout Dimensions (HxWxD): 10 x 12 cm (3.94 x 4.72 in)

• Overall Dimensions (HxWxD): 11.9 x 13.9 x 5.5 cm (4.69 x 5.47 x 2.15 in)

• Weight: 0.3 kg

Key Features

• Monochrome transflective display provides high visibility in diverse lighting

• Durable LED backlight ensures long-term operation without replacement

• Full keypad input supports flexible operator control

• Compact form factor ideal for space-limited control panels

Applications

• Small- to medium-scale industrial process control

• Operator interface for PLC-driven systems

• Data entry and monitoring for manufacturing or assembly lines

FAQ / Comparison
Q: Does this model support color displays?
A: No, the 2711C-K3M uses a monochrome FSTN display. For color options, consider the PanelView Plus or Component Color series.
Q: Can it operate outside the 0–50°C range?
A: Operation beyond the rated range is not recommended and may affect display and electronics reliability.
