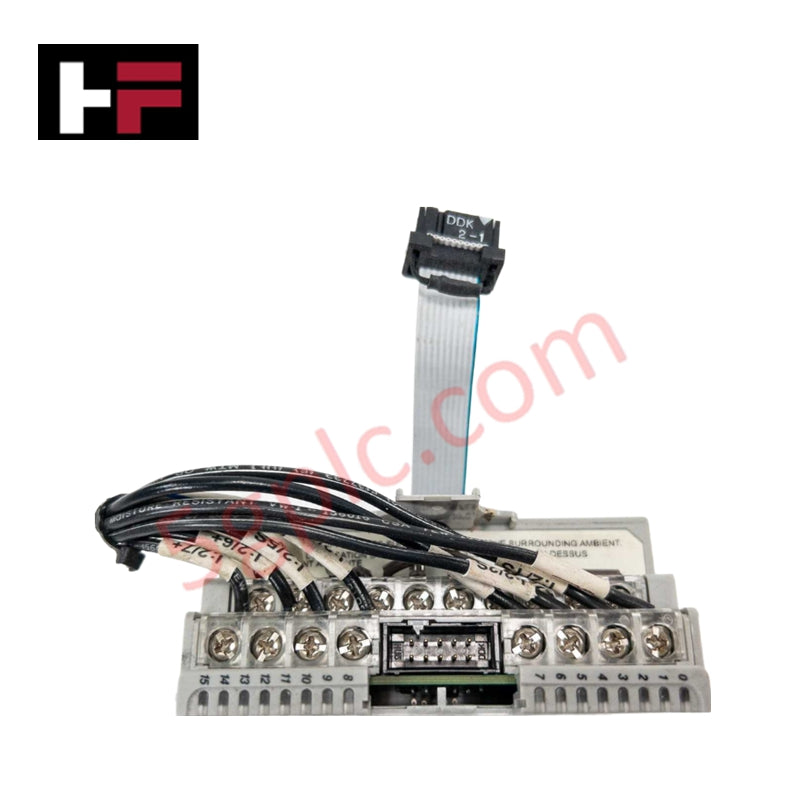

Allen-Bradley MicroLogix 1762sc-IF8U 8-Channel Universal Analog Input Module

Module Overview

The 1762sc-IF8U is a high-density, multi-functional analog input module developed by Spectrum Controls for the Allen-Bradley MicroLogix 1100, 1200, and 1500 controller series. This "Universal" module is engineered to provide maximum flexibility, allowing engineers to mix and match different signal types—including Voltage, Current, Thermocouple, and RTD—on a single module. By consolidating eight channels of diverse analog data into a single-slot footprint, the 1762sc-IF8U significantly reduces hardware costs and saves critical DIN rail space in complex automation projects.

Detailed Engineering Specifications

The 1762sc-IF8U utilizes a 16-bit high-resolution converter to ensure precision across all supported sensor types.

• Number of Channels: 8 (Configurable for Voltage, Current, or TC) or 4 (for RTD/Resistance)

• Resolution: 16-Bit

• Input Voltage Ranges: ±50 mV, ±100 mV, 0-5V, 1-5V, 0-10V, ±10V

• Input Current Ranges: 0-20 mA and 4-20 mA

• Thermocouple Support: Types J, K, T, B, E, R, S, N, and C

• RTD Support: Pt 385/3916 (100, 200, 500, 1000 Ω), Ni 618, Ni 672, NiFe 518, Cu 42

• Resistance Ranges: 0-150 Ω, 0-1000 Ω, 0-3000 Ω

• Input Filtering: Programmable (4 Hz, 17 Hz, 62 Hz, 470 Hz)

• Channel Update Time: Variable based on filter (20 ms to 495 ms)

• Thermal Dissipation: 1.4 Watts maximum

• Recommended Cabling: Belden 8761 (or equivalent) for V/mA/RTD; Shielded twisted-pair for TC

• Physical Weight: 0.06 lbs (0.03 kg)

Universal Input Flexibility

The primary advantage of the 1762sc-IF8U is its ability to handle four distinct signal categories simultaneously. In a single application, a technician can wire a pressure transmitter (4-20mA), a motor temperature sensor (RTD), and a furnace probe (Thermocouple) to the same module. For RTD and Resistance measurements, the module supports 2, 3, or 4-wire configurations to compensate for lead-wire resistance, ensuring laboratory-grade accuracy in industrial environments.

Configuration and Software Integration

As a specialty module, the 1762sc-IF8U is fully compatible with RSLogix 500 and Connected Components Workbench (CCW) software. Configuration is typically managed through "Generic Extra Data Config" or via the module's specialized configuration profile. This allows users to set individual filter frequencies for each channel, balancing the need for high-speed updates against the requirement for stable readings in electrically noisy environments.

Technical FAQ

Why is the channel count reduced to 4 when using RTDs?

RTD measurements (especially 3 and 4-wire) require additional return and compensation terminals to calculate wire resistance. Therefore, each RTD occupies the physical terminal space of two standard voltage/current channels.

Does this module require an external power supply?

The 1762sc-IF8U draws its logic power directly from the MicroLogix backplane. However, most 4-20mA transmitters connected to the module will still require an external 24V DC loop power source.

Can I use this module with the MicroLogix 1400?

Yes. The 1762 expansion bus is the standard I/O platform for the MicroLogix 1100, 1200, and 1400 series, as well as the 1764-based MicroLogix 1500.
