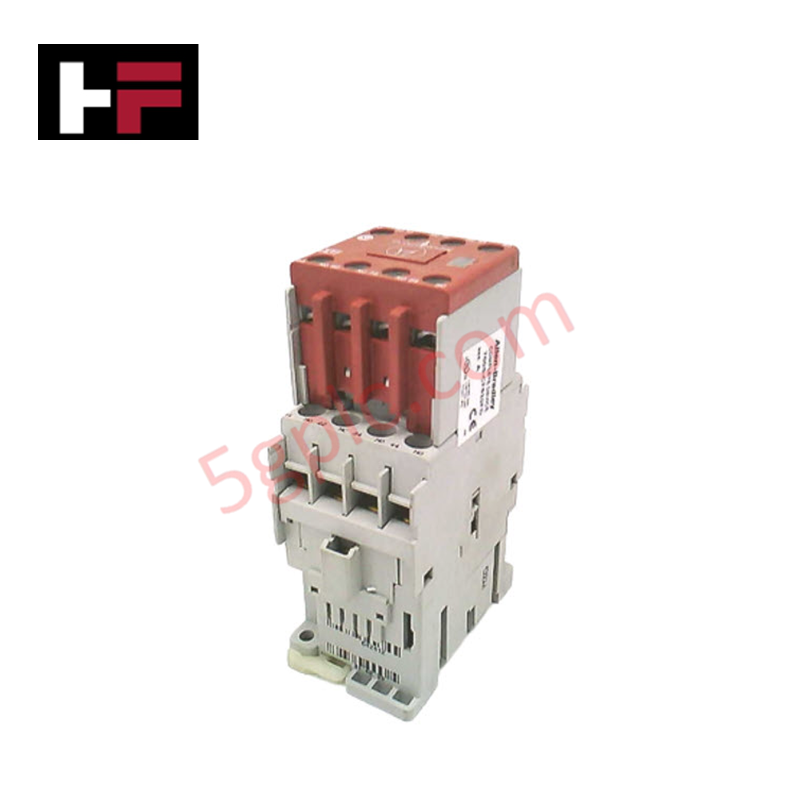

Allen-Bradley 700S-CF620FC 700S Series Safety Control Relay

Product Overview

The Allen-Bradley 700S-CF620FC serves as a high-integrity, multi-pole safety control relay within automated machinery interlocking networks. This hardware component isolates primary output loads, monitors emergency stop circuits, and handles mirrored feedback contacts inside functional safety control panels.

The fixed front-mount auxiliary block prevents manual override tampering to maintain safety loop predictability. We supply this industrial control switchgear strictly as a 100% brand new, original factory-sealed unit, which guarantees clean contact surfaces, uncycled internal springs, and intact housing mechanics straight from the warehouse.

Technical Specifications

The table below displays the electrical parameters, contact configurations, and physical traits of the 700S-CF620FC safety relay:

Engineering Advantages

• Enforces Safety Feedback with Positively Guided Contacts: The internal mechanical design utilizes positively guided (mechanically linked) contact rods. If a heavy current surge welds a Normally Open (N.O.) contact shut, the internal linkage keeps the Normally Closed (N.C.) feedback contact open, allowing safety monitoring systems to detect the hardware fault and stop subsequent startup cycles.

• Prevents Human Tampering via Permanently Bound Auxiliary Block: A protective red plastic cover permanently seals the front-mounted auxiliary contact block to the base housing. This housing design bars maintenance technicians from overriding the relay contacts manually with a screwdriver, preventing hazardous bypasses of active machine guard rails.

• Mounts Speedily in High-Density DIN Rail Enclosures: The compact 0.95-lb structural footprint clips directly onto standard 35mm DIN rails or mounts via native rear screw holes onto backplanes. This flexible installation layout lets panel builders drop the safety relay into crowded motor control centers without altering underlying wiring layouts.

FAQs

• Can I run this specific 700S-CF620FC safety relay on a standard North American 60Hz power grid?

  No. This model utilizes an internal AC solenoid coil tuned specifically for 50Hz power networks at 220-230V. Running a 50Hz-only coil on a 60Hz circuit changes the inductive reactance, which reduces current draw, weakens the primary magnetic field, and can cause contact chattering, high contact resistance, or premature coil burnouts.

• What visual indicators on the unit assist field technicians during preventative maintenance checks?

  The permanently attached red front window provides a direct view of the internal mechanical armature assembly. Technicians inspect this window during troubleshooting to see if the contact carrier shifts fully when the 230V AC coil receives power, speeding up isolation checks without requiring external test probes.

• How should field engineers wire the N.C. contacts to maximize system fault discovery?

  Engineers must wire the two Normally Closed (N.C.) contacts in series directly with the safety monitoring module's external device monitoring (EDM) input loop. This wiring loop reads the status of the relay contacts before enabling the main safety reset, ensuring the machinery stays in a safe state if the main power contacts fail to drop out.
