Product Details
Product Description

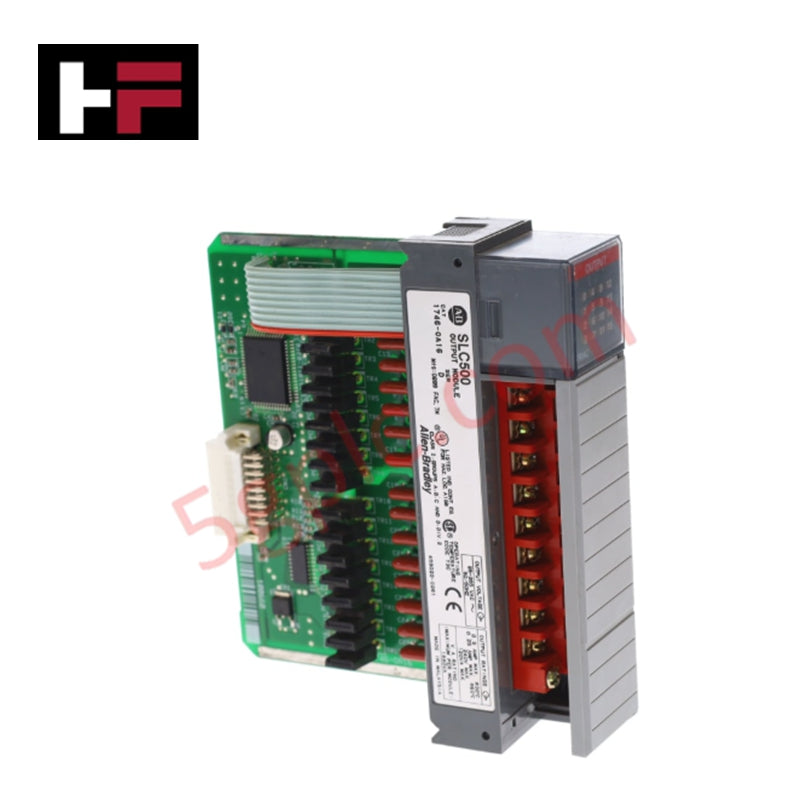

The Allen-Bradley 1746-OA16 is a digital AC output module from the SLC 500 series, designed to provide sixteen independent output channels for general-purpose industrial applications. It supports a wide operating voltage range and delivers consistent performance across varying ambient conditions. With robust electrical specifications and reliable step response, this module is well-suited for integration into distributed control systems.
Technical Specifications
-
Manufacturer Allen-Bradley
-
Product Line SLC 500
-
Part Number 1746-OA16
-
Category PLCs
-
Weight 1.00 lbs (0.45 kg)
-
Module Type Digital AC Output Module
-
Number of Outputs 16 channels
-
Nominal Output Voltage 120/240 V AC
-
Operating Voltage Range 85–264 V AC
-
Output Delay (OFF → ON) 11 ms
-
Output Delay (ON → OFF) 1 ms
-
Leakage Current (OFF State) 2 mA
-
Minimum Load Current 10 mA
-
Continuous Current per Point
-
0.50 A at 30 °C (86 °F)
-
0.25 A at 55 °C (131 °F)
-
Continuous Current per Module (Max)
-
8.0 A at 30 °C (86 °F)
-
4.0 A at 60 °C (140 °F)
-
Backplane Current @ 5 V DC 370 mA
-
Step Response 60 ms input, 2.5 ms output
-
Ambient Operating Temperature 32–140 °F (0–60 °C)
Application Scenarios
-
General-purpose AC output control in industrial automation
-
Machine-level applications requiring multiple output points
-
Systems needing reliable switching with low leakage current
FAQ
-
Q: How many outputs does the module provide? A: Sixteen AC output channels.
-
Q: What is the operating voltage range? A: 85–264 V AC.
-
Q: What is the maximum current per module? A: 8 A at 30 °C, 4 A at 60 °C.
