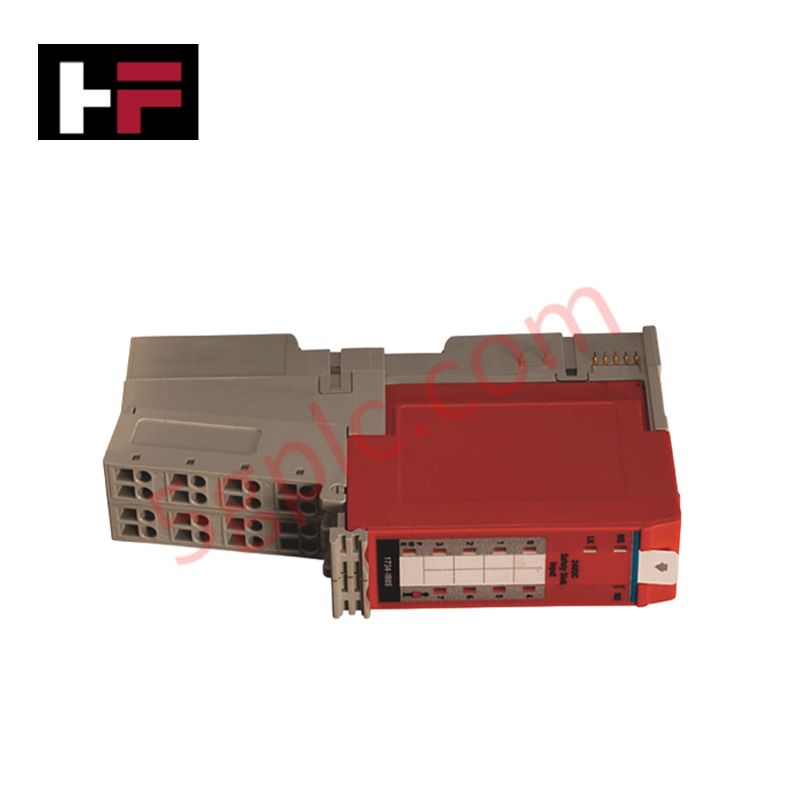

Allen-Bradley 1734-OV8S POINT Guard I/O Safety Output Module

Product Overview

The Allen-Bradley 1734-OV8S operates as a high-density, distributed safety output module within the POINT Guard I/O hardware architecture. This specialized component executes safety-critical de-energization commands for industrial automation networks, controlling safety contactors, light curtains, emergency stop circuits, and robotic interlocking gates.

The module interfaces directly with GuardLogix controllers via the standard POINT I/O backplane to enforce safety configurations up to the highest risk thresholds. We supply this automation component strictly as a 100% brand new, original factory-sealed unit, which guarantees untouched solid-state switching channels, immaculate internal diagnostic circuitry, and uncompromised factory firmware compliance.

Technical Specifications

The table below logs the mechanical, environmental, and functional safety parameters of the 1734-OV8S safety module:

Engineering Advantages

• Achieves Maximum Space Savings via Ultra-Slim Profile: The module utilizes an ultra-compact slice architecture that slots into standard 1734 terminal bases on a DIN rail. This space-saving design allows control engineers to build high-density, localized safety nodes inside crowded field junction boxes, removing the need for oversized sub-panels.

• Eliminates False Trips with Onboard Pulse Testing: The solid-state output drivers perform continuous, sub-millisecond pulse testing on the active channels. This automated diagnostic routine detects external wire short-circuits to 24V DC or ground loops instantly without dropping the actuator load, preventing erratic line shutdowns while preserving full SIL 3 protection.

• Sustains Reliable Execution Across Wide Temperature Shifts: The rugged internal hardware architecture manages thermal dissipation efficiently, consuming only 0.25W per active channel. This thermal efficiency keeps the module functional across a broad -20°C to 60°C temperature envelope, stopping thermal drifting errors in unconditioned outdoor control cabinets.

FAQs

• Can I mix this 1734-OV8S safety module on the same DIN rail with standard, non-safety POINT I/O modules?

  Yes. The POINT I/O backplane allows seamless physical and electrical integration of standard and safety-rated modules on a single assembly row. However, you must pair the 1734-OV8S with an EtherNet/IP adapter that supports CIP Safety protocols (such as the 1734-AENTR) to route the safety data packets back to the master GuardLogix processor.

• What critical terminal base installation rule prevents damage to the module during replacement?

  Technicians must mount the module onto a compatible 1734-TB or 1734-TBS terminal base unit before applying field power. Set the mechanical keyswitch on the terminal base to the proper position assigned for this safety output type before sliding the module into place. This mechanical lock stops technicians from accidentally inserting a standard digital module into a high-voltage safety wiring slot during field maintenance.

• How does a sourcing output differ from the sinking outputs found on the 1734-OV8S?

  The 1734-OV8S utilizes sinking safety outputs (designated by the "V" in the part number). When the safety condition enables the output, the module connects the output pin to the 0V DC ground common, pulling the current through the load. Sourcing safety modules (like the 1734-OB8S), by contrast, switch the +24V DC positive leg to drive the field load. Field technicians must match this sinking characteristic with the correct polarity of the connected actuators.
