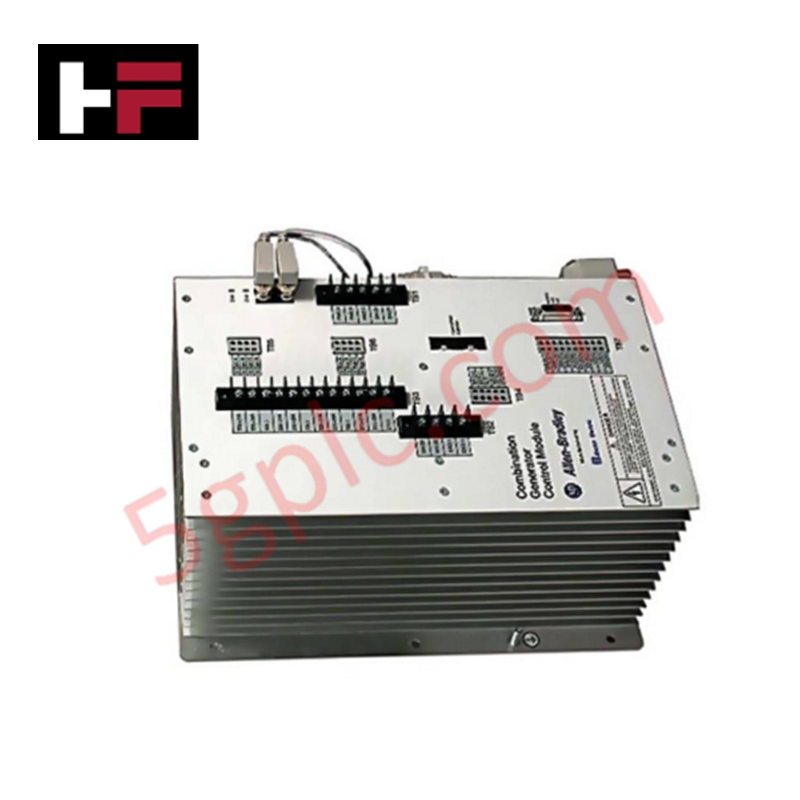

Allen-Bradley 1407-CGCM Combination Generator Control Module

Product Overview

The 1407-CGCM functions as a high-precision Combination Generator Control Module designed by Allen-Bradley for integrated power management and synchronization. This module centralizes complex generator functions, including 3-phase voltage sensing, frequency monitoring, and cross-current compensation. It provides the critical interface between the generator set and the distribution bus, ensuring seamless load sharing and excitation control. We offer this unit as 100% Brand New original hardware, guaranteeing optimal accuracy for mission-critical power generation environments.

Technical Specifications

The 1407-CGCM features laboratory-grade metering precision and rugged industrial environmental ratings:

Engineering Advantages

• Advanced Load Sharing Logic: The module manages real and reactive power sharing with a resolution of 0.1% of full-scale voltage. This ensures balanced distribution across multiple generator sets, preventing circulating currents and engine strain.

• Superior Metering Precision: With a 0.2% accuracy rating for generator voltage and current, the 1407-CGCM eliminates the need for external high-precision transducers. This precision extends to frequency monitoring with a tolerance of just ±0.05 Hz.

• Integrated Cross-Current Compensation: The hardware includes dedicated inputs for cross-current compensation ($I_D+$, $I_D-$), enabling stable reactive power control during parallel operation with varied excitation characteristics.

• Rugged Environmental Hardening: The unit withstands 30 g of operating shock and continuous vibration up to 5.0 g. Furthermore, it undergoes salt fog testing per MIL-STD-810E, making it ideal for offshore or coastal power plants.

• High-Capacity Field Monitoring: The module tracks field voltages up to 200V DC and field currents up to 30 A. This wide range accommodates large-scale industrial alternators and specialized excitation systems.

Installation & Wiring Requirements

1. Power Source Selection: Supply the device using a 24V nominal battery or a 24V DC power supply. For hazardous area deployments, ensure the power source carries ATEX certification.

2. Current Sensing Connectivity: Connect the 3-phase generator current sensing leads to the designated CT inputs. Ensure the burden remains below 0.1 VA per phase for metering CTs to maintain accuracy.

3. Thermal Management: The module dissipates up to 3.1 kW of heat under maximum load. Ensure the control cabinet provides sufficient forced-air cooling or ventilation to prevent internal heat buildup.

4. Dielectric Integrity: This module meets IEEE 421.3 dielectric strength standards. Always verify ground bonding to protect the sensitive internal Intel-based processing architecture from common-mode noise.

FAQs

Q: Can the 1407-CGCM operate on both 50 Hz and 60 Hz systems?

A: Yes. The module natively supports both 50 Hz and 60 Hz frequencies. Its wide sensing range (10…90 Hz) allows for monitoring during engine startup and overspeed conditions.

Q: What is the benefit of the Cross-Current Compensation feature?

A: Cross-current compensation allows the 1407-CGCM to adjust the excitation of parallel generators to minimize the flow of reactive current between them. This prevents one generator from "motoring" another and ensures system stability.

Q: Does this unit require external transducers for bus voltage monitoring?

A: No. The 1407-CGCM includes direct bus voltage sensing inputs (57…208V AC) with an accuracy better than 0.2%, simplifying cabinet wiring and reducing component costs.

Q: Is this module suitable for marine environments?

A: Yes. Because GE/Allen-Bradley tested this hardware against MIL-STD-810E Method 509.3 (Salt Fog), it resists the corrosive effects of salt-laden air in marine and coastal installations.
