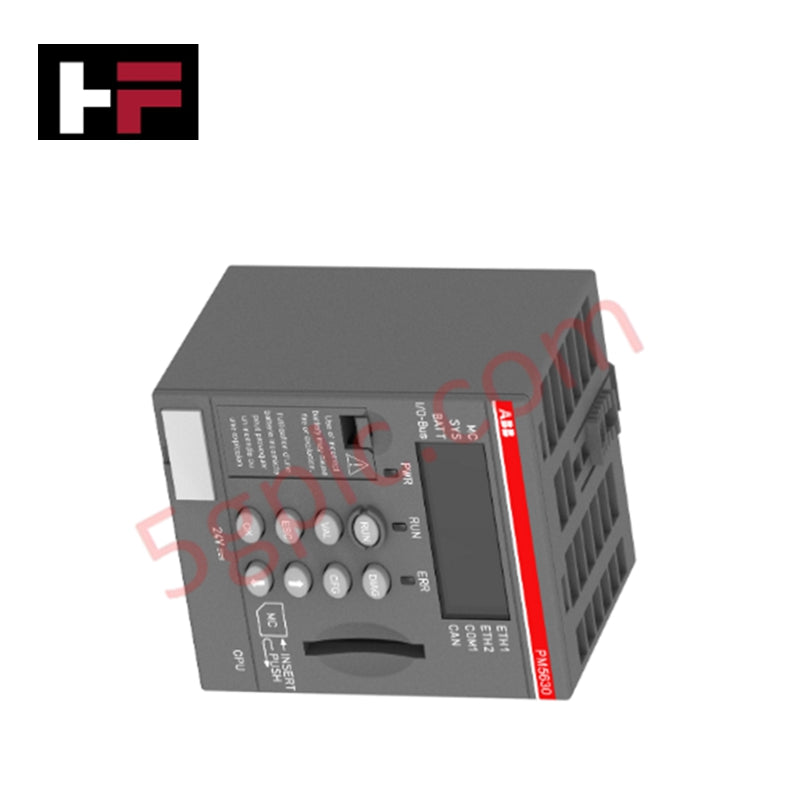

ABB PM5630-2ETH 1SAP131000R0278 AC500 PLC Processor Module

Product Overview

The ABB PM5630-2ETH (1SAP131000R0278) represents the high-performance tier of the AC500 PLC family. This modular processor unit delivers 8MB of user memory and ultra-fast processing speeds, making it an ideal choice for complex, data-intensive industrial applications. It features dual Integrated Ethernet ports, a CAN interface, and a configurable RS232/485 serial port, providing a centralized communication hub for decentralized I/O networks and plant-level systems. We supply this module as 100% Brand New and Original, ensuring your critical infrastructure utilizes factory-sealed, authentic German-engineered hardware.

Technical Specifications

The PM5630-2ETH integrates advanced computational power with multi-protocol connectivity:

• Processor Type: AC500 Modular CPU

• Memory Capacity: 8 MB (User Data/Program)

• Controller Processing Time: 0.00002 ms (0.02 µs) per instruction

• Ethernet Interfaces: 2 x Industrial Ethernet (RJ45)

• Serial Interface: 1 x RS-232 / RS-485 (Configurable)

• Fieldbus Interface: 1 x CAN Bus

• Local Display: Integrated LCD for status and diagnostics

• Rated Voltage: 24 V DC (20.4 ... 28.8 V DC range)

• Power Consumption: 2.640 W

• Protection Rating: IP20

• Dimensions: 67.5 mm (W) x 76 mm (H) x 62 mm (D)

Engineering Advantages

• Ultra-Deterministic Logic Execution: With a processing time of just 0.02 µs, the PM5630-2ETH executes complex control loops and high-speed logic with virtually zero jitter. This speed optimizes performance in precision-motion control and high-speed packaging lines.

• Dual-Port Network Flexibility: The two independent Ethernet ports support separate network segments (e.g., one for HMI/SCADA and one for I/O communication). This physical separation enhances network security and prevents traffic congestion in large-scale automation architectures.

• High-Density Memory Management: The 8MB program memory handles extensive data logging, complex user-defined function blocks, and large application code without requiring external memory expansion, reducing the overall system cost.

• Built-in CAN & Serial Connectivity: Native CAN bus support enables direct communication with frequency drives and specialized sensors. The additional RS232/485 port ensures seamless integration with legacy instruments and serial devices without needing extra communication couplers.

• On-Board LCD Diagnostics: The integrated display provides immediate access to error codes, firmware versions, and system statuses. Maintenance teams identify and resolve faults directly at the cabinet door, drastically reducing Mean Time to Repair (MTTR) without a laptop connection.

FAQs

• What is the status of the PM5630-2ETH 1SAP131000R0278 "Classic" designation?

  The R0278 version is classified as a "Classic" part and has been officially replaced by the 1SAP131000R0378. However, we maintain stock of the original R0278 to support facilities that require an exact replacement to maintain software and firmware consistency without a re-validation process.

• Does the PM5630-2ETH require a separate Terminal Base?

  Yes. You must install the PM5630-2ETH on a compatible AC500 Terminal Base (such as the TB5xx series). The base defines the wiring terminals for power and communication interfaces while providing the physical mounting to the DIN rail.

• How does the 24V DC supply connection handle voltage fluctuations?

  The module features a wide supply range of 20.4 V to 28.8 V DC. This tolerance protects the CPU against common industrial power supply fluctuations, ensuring stable operation even in environments with variable load conditions.

• Can I use the CAN interface for multiple protocols?

  The CAN interface supports standard CANopen or proprietary CAN protocols depending on your configuration in the Automation Builder software. This flexibility allows the CPU to act as either a master or slave within the CAN network.
