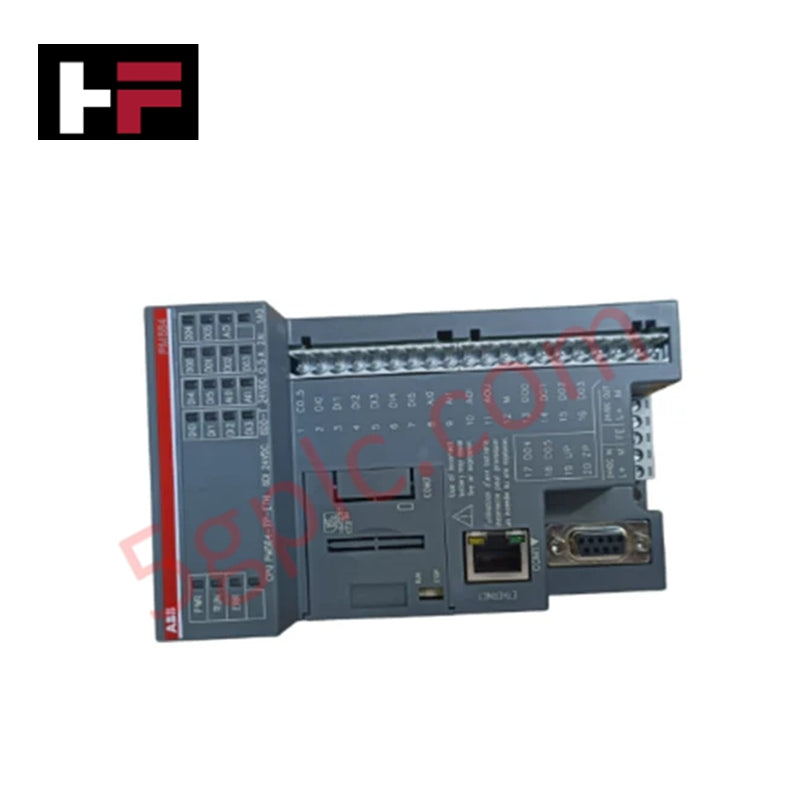

ABB PM556-TP-ETH 3ABD00034186 AC500-eCo PLC Processor Module

Product Overview

The ABB PM556-TP-ETH (3ABD00034186) represents the high-tier processing capability within the AC500-eCo compact PLC family. This unit integrates powerful control logic with native Industrial Ethernet connectivity, serving as a versatile master for decentralized automation clusters. It executes complex control algorithms and coordinates real-time data exchange across modern industrial networks. We supply this processor as 100% Brand New and Original, ensuring your critical infrastructure utilizes factory-sealed, uncompromised hardware for maximum uptime.

Technical Specifications

The PM556-TP-ETH utilizes a high-efficiency architecture designed for rapid logic execution:

• Article Number: 3ABD00034186 (Replaces 3ABD10094773)

• Alternative ID: 1SAP121200R0071

• Series: AC500-eCo

• Communication: Integrated Ethernet port (RJ45)

• Output Type: Transistor (TP) for high-frequency switching

• Supply Voltage: 24V DC

• Product Net Weight: 0.35 kg

• Dimensions: 82 mm (W) x 135 mm (H) x 74 mm (D)

• Mounting: Standard DIN Rail

• Environment: Industrial-grade components for high-duty cycles

Engineering Advantages

• Seamless Network Integration: The on-board Ethernet port supports multiple industrial protocols, including Modbus TCP. This enables direct connection to HMI panels, enterprise SCADA systems, and cloud gateways without requiring external communication adapters.

• High-Speed Solid-State Switching: The transistor (TP) outputs eliminate mechanical wear associated with traditional relays. These outputs support Pulse Width Modulation (PWM) and high-frequency pulse trains, providing the precision needed for modern motion control and dosing applications.

• Optimized Thermal Design: The module housing utilizes natural convection cooling, maintaining stable operating temperatures even during intensive computational loads. This design prevents thermal throttling and extends the lifespan of internal electronic components.

• Dynamic Scalability: Despite its compact form factor, the PM556-TP-ETH supports a wide range of S500-eCo expansion modules. This allows engineers to expand local I/O counts or add specialized analog functions while maintaining a unified programming environment.

• Ruggedized Compact Footprint: The 82 mm width maximizes density within control cabinets. Its robust construction resists high-vibration environments, making it an ideal choice for mobile machinery and decentralized control boxes.

FAQs

• Is the PM556-TP-ETH backward compatible with older AC500-eCo projects?

  Yes. The PM556-TP-ETH (3ABD00034186) serves as the modern replacement for the legacy 3ABD10094773. It maintains full functional compatibility while offering improved processing stability and modern component sourcing.

• Can I use the Ethernet port for web-based monitoring?

  The integrated Ethernet interface supports web server functionality. You can host custom diagnostic pages on the CPU, allowing maintenance teams to monitor system health and process variables via a standard web browser on a secure network.

• Does the unit require a specific programming software?

  You program the PM556-TP-ETH using the ABB Automation Builder software suite. This environment provides standardized IEC 61131-3 programming languages, simplifying the development and commissioning of complex control logic.

• How does the transistor output benefit my application compared to a relay output?

  Transistor outputs offer nearly infinite switching cycles and sub-millisecond response times. This makes the PM556-TP-ETH far superior for high-cycle applications where mechanical relays would fail prematurely due to contact fatigue.
