Product Details
Module Overview

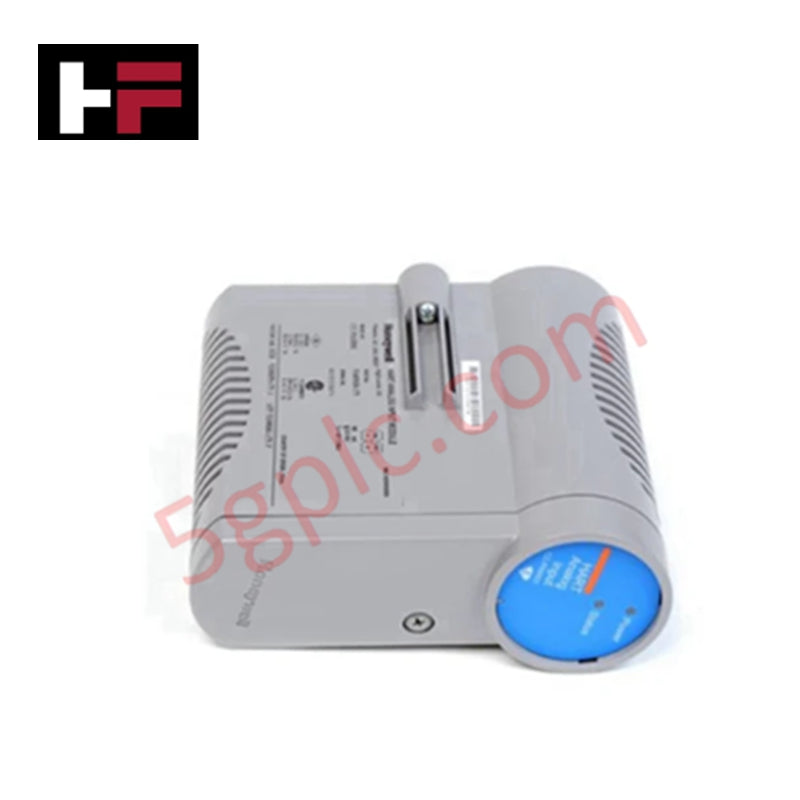

The 8C-PDIS01 is a high-performance Sequence of Events (SOE) Digital Input module integrated within the Honeywell Experion PKS Series 8 platform. Engineered for critical monitoring where timing precision is non-negotiable, this module captures state changes with millisecond accuracy. Its architectural design prioritizes signal integrity in high-interference environments, making it a standard choice for turbine control, emergency shutdown systems, and complex process interlocking.
Technical Parameters
The following specifications define the electrical and environmental limits of the 8C-PDIS01 hardware:
-
Channel Density: 16 isolated input channels
-
Nominal Input Voltage: 24 VDC
-
Input Current Loading: 2 mA per channel at rated voltage
-
SOE Time Stamp Precision: 1 ms resolution for event logging
-
Galvanic Isolation: 2500 Vrms (tested channel-to-logic)
-
Field Side Voltage Range: 18 VDC to 30 VDC
-
ON State Threshold: > 13 VDC
-
OFF State Threshold: < 5 VDC
-
Operating Ambient Temperature: -40°C to +70°C (-40°F to +158°F)
-
Storage Temperature Range: -55°C to +85°C
-
Humidity Limits: 5% to 95% RH (non-condensing)
-
Conformal Coating: Standard for Series 8 ruggedization
Application and Deployment
The 8C-PDIS01 module is typically deployed in scenarios requiring post-trip analysis or precise causal sequence tracking. By utilizing the 1ms time-stamping capability, engineers can reconstruct the exact order of field contact closures during a system upset. It mounts directly onto the Series 8 Input/Output Termination Assembly (IOTA), allowing for vertical airflow and efficient heat dissipation within the control cabinet.
Frequently Asked Questions
Does the 8C-PDIS01 require external power for the field inputs?Yes, the 24 VDC loop power must be provided to the field contacts, as the module acts as a sinking input device to detect the presence of voltage.
What is the difference between this SOE module and a standard Digital Input module?While a standard DI module scans inputs based on the controller's execution cycle, the 8C-PDIS01 features local processors that timestamp transitions immediately at the hardware level, bypassing controller scan-time jitter.
