Product Details
Overview

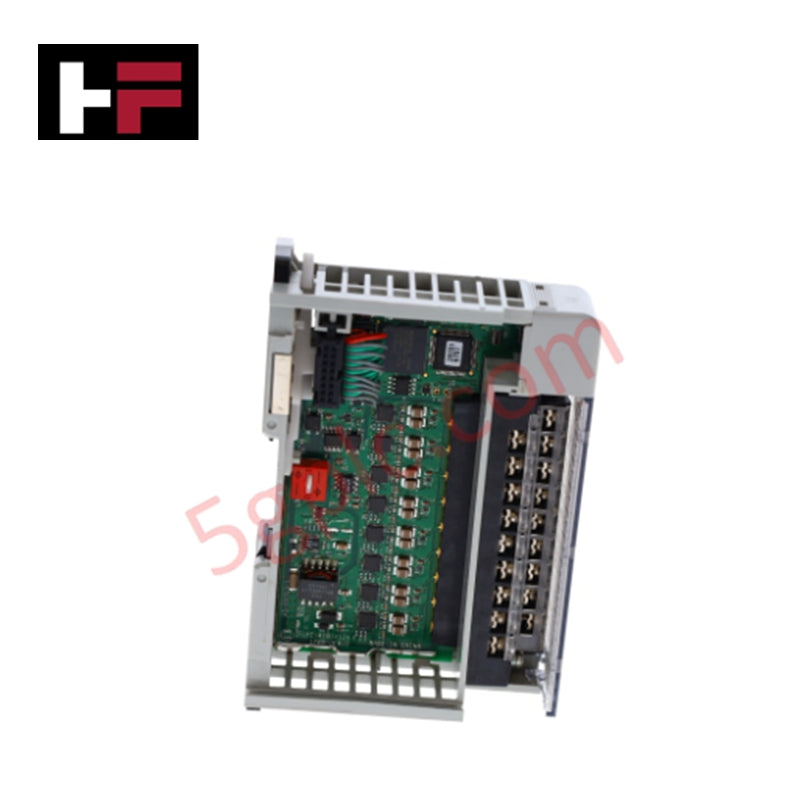

The 1769-OF8C is a high-performance 8-channel analog output module from Allen-Bradley’s CompactLogix series. It delivers precise current outputs with Delta-Sigma conversion and robust protection features, suitable for diverse industrial control applications.
Technical Specifications
-
Brand & Model: Allen-Bradley 1769-OF8C
-
Product Type: CompactLogix 8-Point Analog Output Module
-
Series: 1769 Compact I/O
-
Module Type: Analog Output (Current)
-
Number of Outputs: 8 channels
-
Output Current Range: 0–20 mA / 4–20 mA
-
Extended Current Range: 0–21 mA; 3.2–21 mA
-
Resolution: 16-bit
-
Conversion Type: Delta-Sigma
-
Maximum Conversion Rate (all channels): 5 ms
-
Overall Accuracy: ±0.35% full scale at 25°C
-
Short-Circuit & Open-Circuit Protection: Yes, max 21 mA
-
Current Draw: 145 mA @ 5VDC, 185 mA @ 24VDC
-
Channel Diagnostics: Reports over/under range, wire break, or high load resistance per bit
-
Enclosure: Open-style (no housing)
-
Communication Cable: 8-point
-
Wire Type: Copper, 90°C rated
-
Wire Size (Solid): 22–14 AWG
-
Wire Size (Stranded): 22–16 AWG
-
Replacement Door Part Number: 1769-RD
Applications
Designed for control of analog actuators, valves, and other process devices requiring precise current outputs. Ideal for integration with Allen-Bradley CompactLogix controllers.
FAQ
Q: Can this module handle open- and short-circuit conditions?
A: Yes, it includes protection and diagnostic reporting for both scenarios.
Q: What is the update rate for all channels?
A: The maximum conversion rate is 5 ms across all outputs.
Q: Is this module compatible with other CompactLogix I/O modules?
A: Yes, it is fully compatible with the 1769 CompactLogix series.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
