Product Description

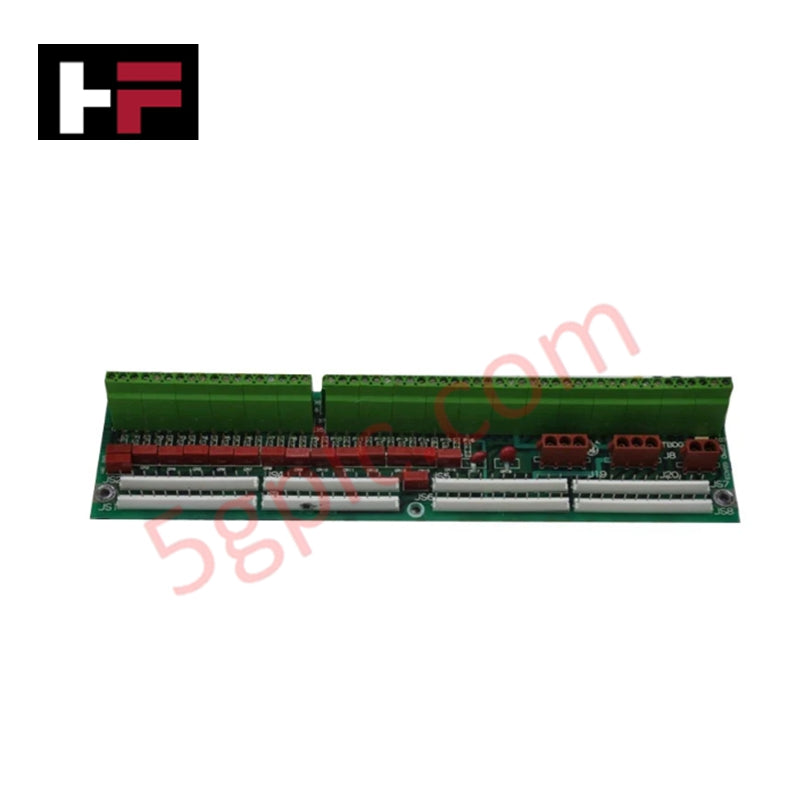

The GE DS200DTBDG1ABB Terminal Board is a rack-mounted circuit board designed for use within the Mark V control system. This module provides multiple connection points for signal cables and includes jumpers for configuration flexibility. The DS200DTBDG1ABB is engineered to support reliable interfacing between control hardware and external devices, making it a key component in turbine and drive control applications.
Technical Specifications
-
Manufacturer: GE General Electric
-
Model Number: DS200DTBDG1ABB
-
Product Type: Terminal Board
-
Series: Mark V
-
Functional Description: Digital connector and termination module
-
Features:
-
Multiple test points for diagnostics
-
Jumpers for configuration adjustments
-
34-pin and 40-pin signal cable connectors
-
Rack-mount design for drive enclosures
-
Dimensions: 11.25 in × 3 in
Key Features
-
Provides termination and connection for digital signals
-
Designed for integration into Mark V control systems
-
Includes multiple test points for system diagnostics
-
Compact rack-mount design for efficient installation
Application Scenarios
-
Industrial turbine control systems using GE Mark V architecture
-
Drive enclosures requiring digital signal termination
-
Maintenance and spare part replacement for legacy GE systems
FAQ
Q: What connectors are available on the DS200DTBDG1ABB?
A: It includes 34-pin and 40-pin connectors for signal cables.
Q: How is this board mounted?
A: It is designed for rack mounting within drive enclosures.
Q: What diagnostic features are included?
A: Multiple test points are provided for system monitoring and troubleshooting.
