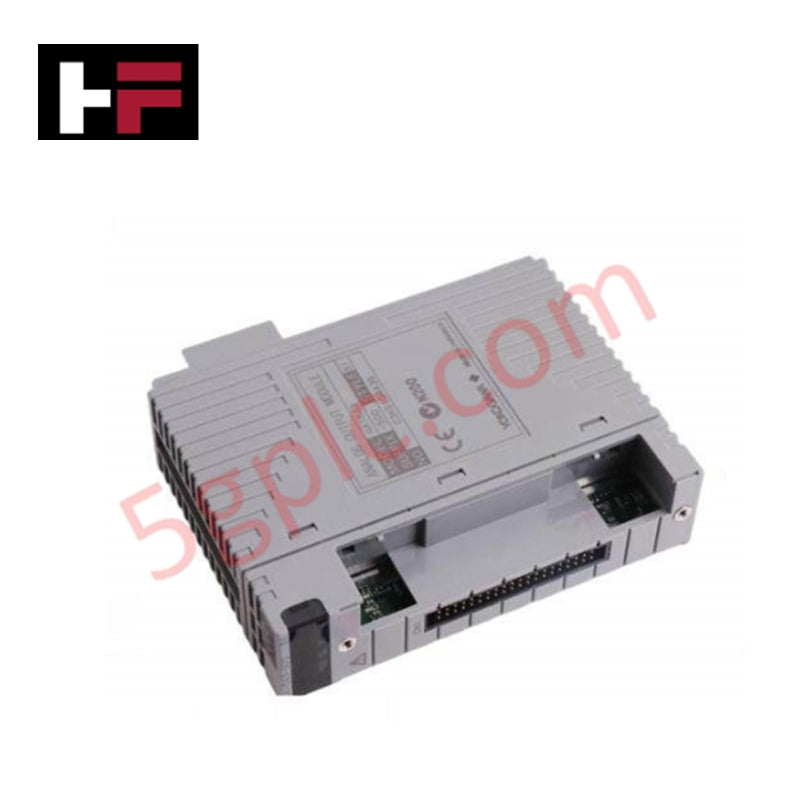

Yokogawa AAI543-H61 CENTUM VP Isolated Analog Output Module

Product Overview

The Yokogawa AAI543-H61 serves as a high-density, 16-channel isolated analog output interface for CENTUM VP and CS 3000 Distributed Control Systems (DCS). This module drives 4 to 20 mA DC signals to final control elements—such as control valves and actuators—while simultaneously facilitating bidirectional HART digital communication. By integrating signal output and device diagnostics into a single isolated card, it provides the backbone for high-precision process control and proactive asset management.

Part Number Breakdown: AAI543-H61

Yokogawa utilizes a specific suffix system to define the communication and safety capabilities of the AAI543 series:

• AAI543: Base Model for Isolated Analog Output (4 to 20 mA, 16-channel).

• -H: High-speed type with integrated HART Communication support.

• 6: Supports standard switch-over response in redundant configurations and includes Explosion Protection (Intrinsic Safety/Non-incendive support).

• 1: Functional code denoting specific electrical refinements and compatibility with modern FIO nodes.

Technical Specifications

We supply every unit in 100% brand new, original factory condition to guarantee maximum MTBF (Mean Time Between Failure) and system integrity.

Engineering Advantages

• HART Asset Intelligence: The AAI543-H61 enables simultaneous transmission of analog process variables and digital diagnostic data. Operators monitor valve positioner health, travel hours, and diagnostic alerts remotely through Yokogawa’s Plant Resource Manager (PRM), eliminating unnecessary manual field inspections.

• Integrated Safety for Hazardous Areas: The "-H61" designation includes built-in explosion protection. This allows the module to interface directly with actuators located in volatile chemical or gas zones, removing the need for external safety barriers and significantly reducing cabinet wiring complexity and heat load.

• Superior Signal Isolation: Individual channel isolation combined with a 1500 V AC withstand voltage stops ground loops and high-voltage transients in their tracks. This architectural choice protects the DCS backplane and neighboring modules from field-side electrical surges.

• Zero-Bump Redundancy: In mission-critical loops, two AAI543-H61 modules operate as a redundant pair. If the active module detects an internal hardware failure, the system executes a seamless switch-over to the standby unit within milliseconds, maintaining a stable 4-20 mA output without disturbing the process.

FAQs

• How does the AAI543-H61 differ from the AAI543-H60?

  The H61 is the updated functional version of the H60. While they share core specifications, the H61 features refined internal componentry for better thermal management and is often required for the latest CENTUM VP hardware revisions.

• Can this module replace a standard AAI543-S50?

  Yes, you can upgrade to the H61 to gain HART communication and explosion protection. However, ensure your CENTUM software license and field instruments support the HART digital layer to utilize the communication features.

• Does this module support "Hot Swapping" while the plant is live?

  Yes. You can hot-swap the AAI543-H61. In a redundant configuration, the process continues uninterrupted. In a non-redundant setup, only the 16 loops associated with that specific card will pause during the swap.

• What load resistance is required for HART communication?

  To ensure stable HART digital signals, the loop resistance should typically fall between 230 Ω and 600 Ω. The AAI543-H61 supports up to 750 Ω for the analog signal itself.
