Product Details

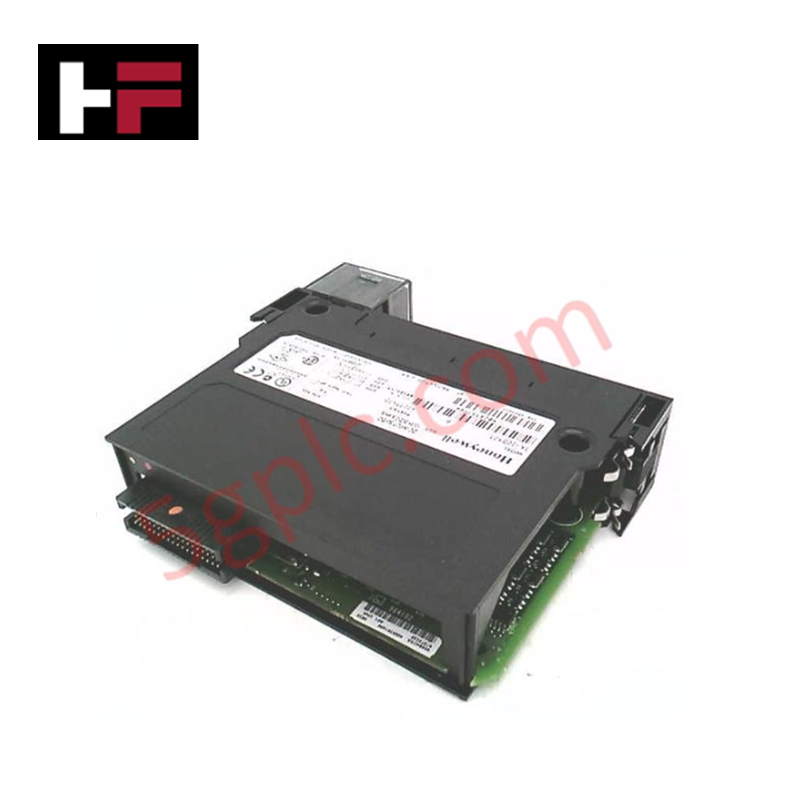

The Honeywell TK-IDD321, also cataloged as the TK-IDD321 Discrete Input Module, operates as a dedicated hardware component for sensing 24 VDC discrete field signals within Experion PKS C300 automation platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TK-IDD321 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.24 kg (Shipping weight: 1.5 kg) |
| Dimensions | Standard C300 / Experion I/O module profile |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 6.1 W maximum power dissipation |
| Number of Inputs | 32 channels (16 points per common group) |
| Nominal Input Voltage | 24 VDC |
| On-State Voltage Range | 10 to 31.2 VDC @ 60 deg C (all channels) |
| On-State Current (Min) | 2.0 mA |
| Off-State Voltage (Max) | 5.0 VDC |
| Off-State Current (Max) | 1.5 mA |
| Inrush Current Peak | 250 mA peak (decaying to less than 37% in 22 ms) |
| Input Compatibility | IEC 61131-2 Type 1+ |
| Connection Terminal Block | TC-TBCH 36-position terminal block |
Channel-to-Channel Isolation & Signal Conditioning
In process automation networks, the module provides galvanic channel group isolation between incoming 24 VDC field contact circuits and the system backplane logic. The integrated filtering networks suppress high-frequency noise spikes and field switch contact chatter, maintaining signal integrity under noisy electrical conditions. Current-limiting circuitry on each input channel prevents internal card damage during continuous high-voltage input conditions, maintaining stable state detection across all 32 channels.
Frequently Asked Questions
Q: What type of switch contacts or proximity sensors can be interfaced with this input module?
A: The module interface complies with IEC 61131-2 Type 1+ input characteristics, making it compatible with standard dry contacts, 2-wire solid-state sensors, and 3-wire PNP proximity switches operating at 24 VDC.
Q: Are individual channels isolated from one another?
A: Channels are arranged into two groups of 16 points sharing a common return line per group, providing optical isolation between the field-side wiring group and the internal backplane system logic.
Q: How is field wiring terminated to the module assembly?
A: Field wiring connects directly via a removable 36-position TC-TBCH terminal block assembly, enabling module maintenance without disconnecting individual field wires.
Field Installation Guidelines
- Mount the module securely into its designated slot on the C300 I/O carrier assembly inside an IP54-rated industrial enclosure.
- Wire field signal lines to the 36-position TC-TBCH terminal block using stranded copper conductors compliant with local wire gauge standards.
- Observe polarity requirements for external 24 VDC sensor power supplies connected across the shared common points of each 16-channel group.
- Ground all shielded input cables at a single entry point on the enclosure cabinet earth ground bus bar to avoid ground potential loops.
- Maintain a minimum separation of 50 mm between 24 VDC signal wiring and high-voltage AC power lines within the enclosure trunking.
