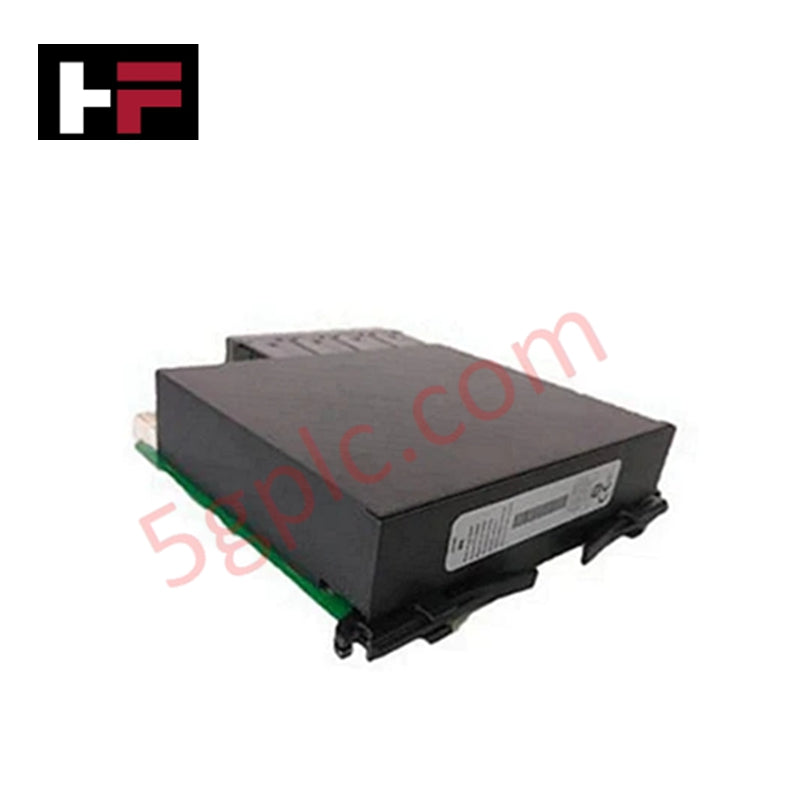

Multilin UR Series | UR 6LV/UR6LV/UR-6LV | Digital Input Module | GE

Overview

The GE UR6LV Digital Input Module is part of the Multilin Universal Relay (UR) series. It provides eight configurable digital input channels designed for monitoring system statuses, alarms, and external control signals. Built for reliability, the UR6LV ensures consistent performance in harsh industrial and utility environments.

Technical Specifications

• Manufacturer: General Electric Multilin

• Model: UR6LV

• Type: Digital Input Module

• Number of Inputs: 8 configurable digital channels

• Input Voltage Range: 24–250 VAC/DC

• Input Type: Digital, channel configurable

• Input Impedance: 10 kΩ

• Response Time: <10 ms typical

• Operating Temperature: -40°C to +85°C (-40°F to +185°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Relative Humidity: 5%–95% non-condensing

• Dimensions: 114 mm × 140 mm × 152 mm

• Weight: 1.13 kg

• Mounting: Panel mount

Key Features

• Eight configurable digital inputs for flexible monitoring

• Fast response time (<10 ms) for real-time applications

• Wide input voltage range supporting AC/DC signals

• Rugged design for reliable operation in extreme conditions

• Panel mount construction for secure installation

Applications

• Substation automation requiring digital input expansion

• Power system protection and monitoring

• Industrial control systems with configurable input requirements

• Integration into mission-critical relay networks

FAQ

• Q: How many digital inputs does the UR6LV provide?  A: It offers 8 configurable digital input channels.

• Q: What is the input voltage range supported?  A: The UR6LV supports 24–250 VAC/DC.

• Q: What is the typical response time?  A: Less than 10 milliseconds.

• Q: How is the UR6LV mounted?  A: It is designed for panel mounting.
