Product Details
Description

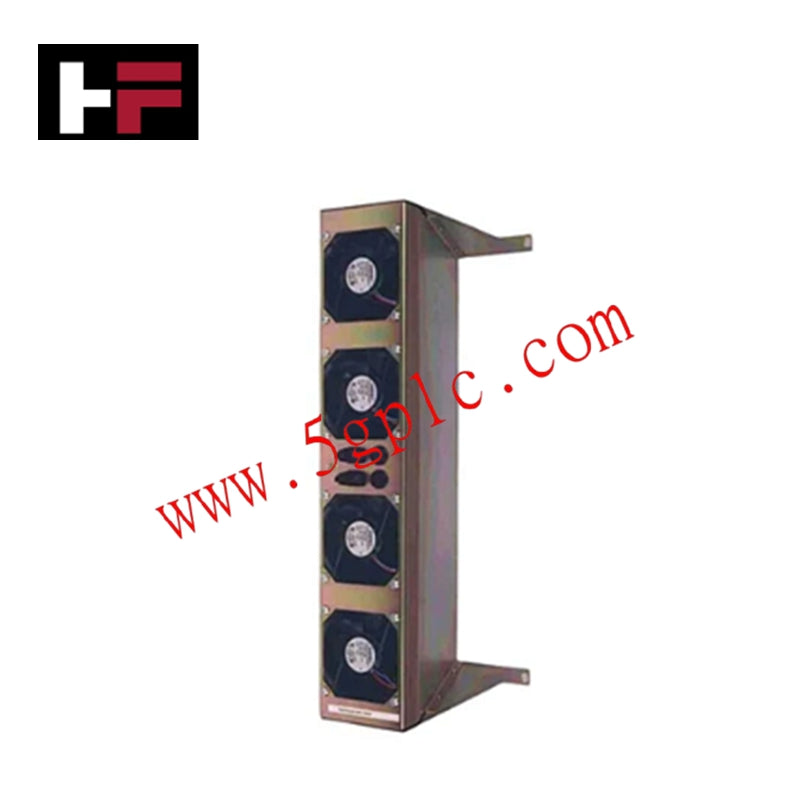

The ICS Triplex T8270 is a high-reliability cooling unit specifically engineered for the Trusted TMR system chassis. It provides forced-air ventilation to maintain optimal operating temperatures for high-density processor and I/O modules, ensuring long-term hardware stability in demanding industrial environments.
Specifications
-
Manufacturer: Rockwell Automation (ICS Triplex).
-
Country of Origin: United Kingdom.
-
Model Number: T8270.
-
Input Voltage: 24 Vdc nominal.
-
Current Consumption: 1.5 Amps maximum.
-
Fan Configuration: Triple redundant high-speed fans.
-
Mounting Type: 19-inch rack mounted (bottom of chassis).
-
Physical Weight: Approximately 2.2 kg (4.8 lbs).
-
Dimensions: 19" x 1.75" x 10" (Standard 1U height).
-
Airflow Capacity: 150 cubic feet per minute (CFM) total.
-
Operating Temperature: -5°C to +60°C (23°F to 140°F).
Features
-
Redundant Cooling Architecture: Incorporates three independent fans to ensure sufficient airflow even if a single fan motor fails.
-
Intelligent Speed Monitoring: Features integrated tachometers that provide real-time feedback on fan rotation to the main controller.
-
Live Serviceability: Supports hot-swap replacement, allowing the entire fan tray to be exchanged while the safety system remains operational.
-
Vibration Dampening: Engineered with specialized mounts to minimize mechanical noise and prevent vibration transfer to sensitive electronic modules.
-
Fault Reporting: Provides local and remote alarm triggers for fan failure, ensuring immediate notification for maintenance personnel.
-
Directional Airflow Logic: Optimized blade geometry and housing provide uniform cooling across all backplane slots to prevent localized hot spots.
