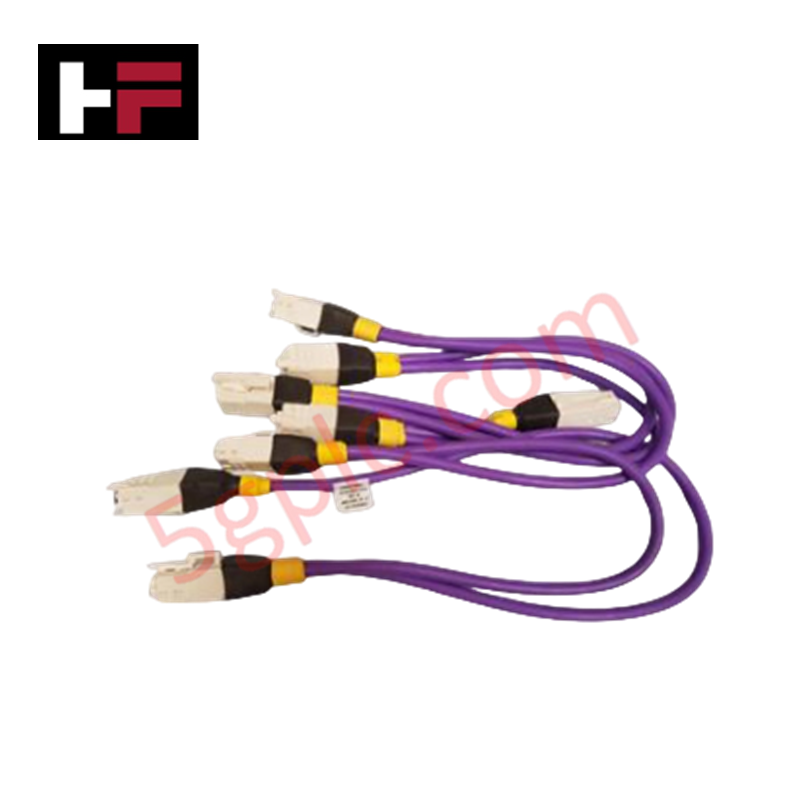

Honeywell 51305830-400 AC Power Cable

Configured for stable power delivery in Honeywell DCS and PLC automation networks, the Honeywell 51305830-400 (51305830 AC Power Cable / Power Splitter) provides direct physical/electrical execution. The assembly splits and routes high-voltage AC utility distribution pathways to supply primary processing units, localized I/O nodes, and rack-mounted peripheral chassis while ensuring long-term continuity within standard electrical enclosures.

Hardware Specifications

Honeywell DCS Channel-to-Channel Isolation Parameters

To balance internal bus topologies alongside critical communication nodes, this high-voltage distribution layout maintains physical separation from low-voltage field instrument wiring. While the cable itself handles raw electrical supply line routing rather than direct 4-20 mA HART loop protocol translation, its industrial jacket composition prevents voltage tracking leakage across adjacent cable trays, ensuring zero degradation of channel-to-channel isolation parameters within neighboring analog instrumentation modules.

Frequently Asked Questions

Q: Can this power cable assembly be disconnected while the downstream I/O modules are fully energized?

A: No, interrupting live AC lines via physical extraction under load creates arcing risks and induces immediate power failure across connected rack segments, dropping active loops out of scan.

Q: Is this assembly compatible with low-voltage DC power distributions?

A: The physical conductors are electrically rated for up to 250 VAC. While copper lines can carry lower DC potentials, this harness is physically engineered and pinned out specifically for AC power splitting routines inside Honeywell automation environments.

Field Installation Guidelines

1. Run all AC distribution cabling through dedicated, isolated high-voltage wireways to mitigate electromagnetic noise coupling into sensitive data lines.
2. Confirm that the total combined current draw of all downstream devices does not exceed the maximum 15 A technical load threshold of the splitter.
3. Seat all power connector terminals fully inside the matching chassis receptacles and tighten any integral mechanical locking screws to eliminate resistance points.
4. Ensure the cable outer jacket is protected from sharp metal enclosure edges, and maintain structural bend radii that exceed the minimum parameters defined for standard industrial PVC multi-conductor wires.
